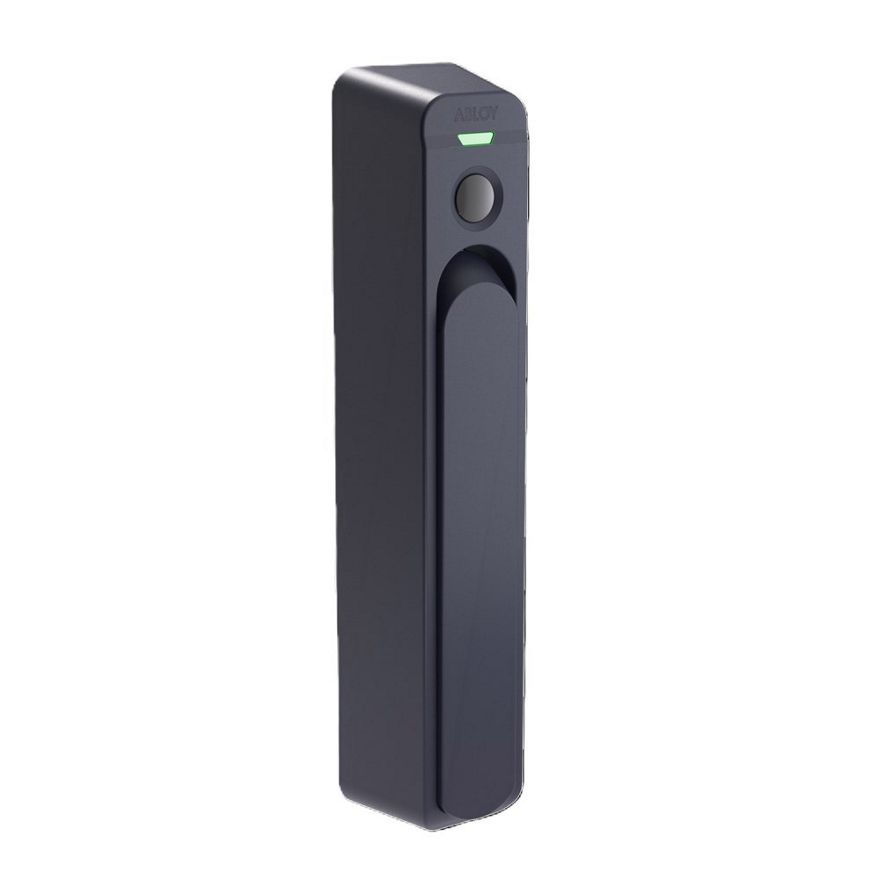

    CUMULUS SHK100 Swing handle

    • Access control
    • ABLOY
    • ABLOY CUMULUS

    The CUMULUS SHK100 Swing Handle is ideal for outdoor cabinets used by telecom, energy and data centre companies, as well as utilities. The handle enables keyless opening, using only a mobile phone. With a robust structure, the handle is waterproof and designed for harsh conditions. The product has IP66 and IK10 ratings and has passed DIN EN 1630 RC2 burglary resistance tests.

    The SHK100 Swing Handle is battery-powered and has a real-time clock. Its use is recorded as an audit trail in the event log, which can be used to trace anomalies, for example. If the battery is depleted, the handle can be operated with a backup power source.

    The product can be ordered with a built-in mechanical backup. This allows the handle to be opened with a mechanical key, if necessary. Thanks to its batteries, the handle records audit trails even when it is used with a key, maintaining situational awareness.

    Finishes

    • Black

    CUMULUS SHK100 Swing handle
    CUMULUS SHK100 Swing handle
    Material Lock body: Zamac (zinc), and Grivory composite
    Locking mechanism: Steel
    Mechanical key override Available by request
    Compatible cutout types PrA: 1 pieces 25x50 mm
    PrB: 2 pieces 25x50 mm (centre distance between the two cuts: 75 mm)
    PrC: 2 pieces 25x50 mm (centre distance between the two cuts: 100 mm)
    Door thickness 1-4 mm
    Spindle interface to cabinet locking 8 mm (square) | 9 mm (square, with adapter)
    Impact resistance IK10*
    Bulgrary resistance Tested according to DIN EN 1630 RC2*
    Reversible Yes (for right-hand and left-hand doors)
    Environmental protection IP66* (handle closed)
    IP54* (handle open)
    Connectivity Bluetooth BLE  2,4 GHz < 8,5 dBm
    Locking functionality Automatic locking  |  Manual locking with credentials
    Handle monitoring LED indications  |  Audit trails
    Power supply type Battery powered
    Safe failure option Back up power through USB-C
    Battery lifecycle 5 years / 5000 openings
    Battery types For cold environments: Panasonic CR2
    For warm environments: Saft LS14250 (use adapter)
    Battery operated temperature range -25 °C to 60 °C
    Product dimensions 43 mm x 34,5 mm x 197 mm
    Product weight (battery included) 1,02 kg
    Finish Black paint

    * Tested with PrC cutout installation

    • Datasheet

    • ABLOY SHK100 DATASHEET.indd(PDF, 74 KB)
