    ASSA ABLOY DL6211S Swingdock 100

    • Distribution and logistics
    • ASSA ABLOY

    Heavy-duty swing lip dock leveller built to handle tough loads and tough environments.

    The ASSA ABLOY DL6211S Swingdock is a robust, high-performance dock leveller designed for intensive loading bay operations. Built entirely from high-strength S355 steel, the DL6211S delivers maximum durability, safety, and efficiency. Its simple yet advanced design uses fewer steel components for improved reliability, making it ideal for facilities with frequent loading and unloading cycles.

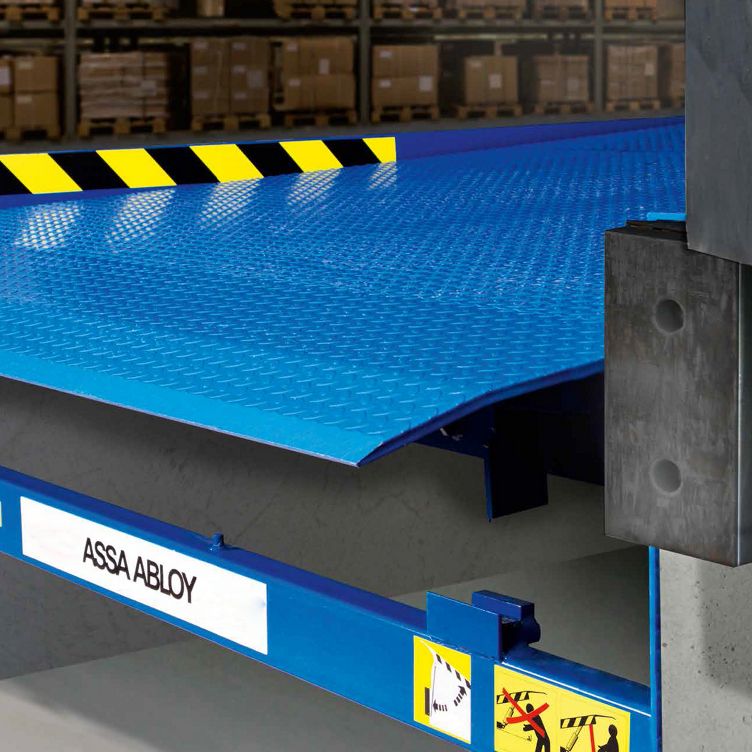

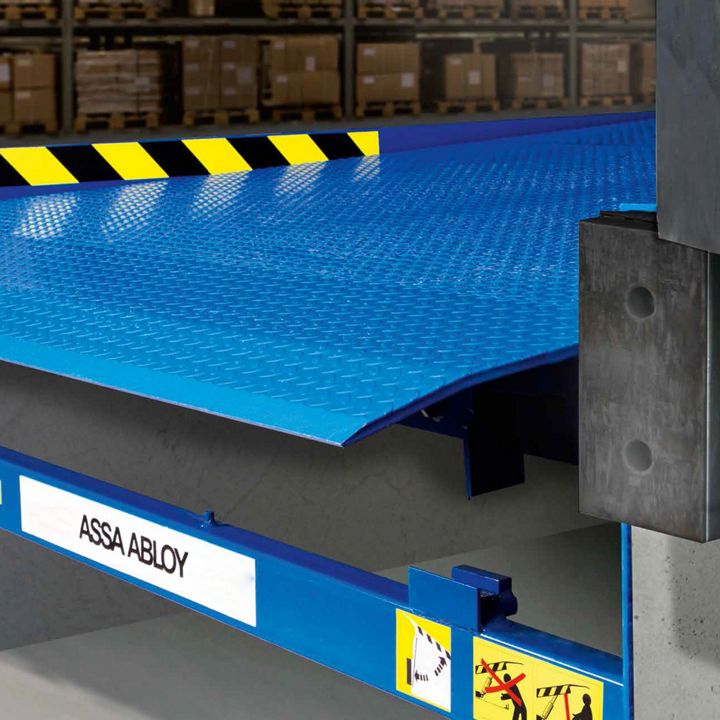

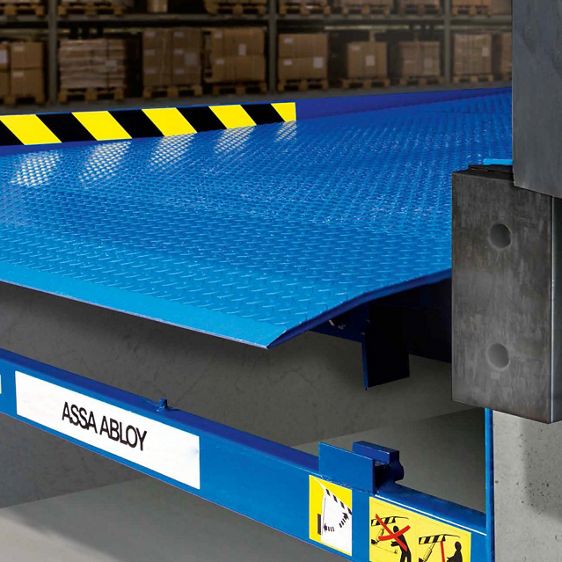

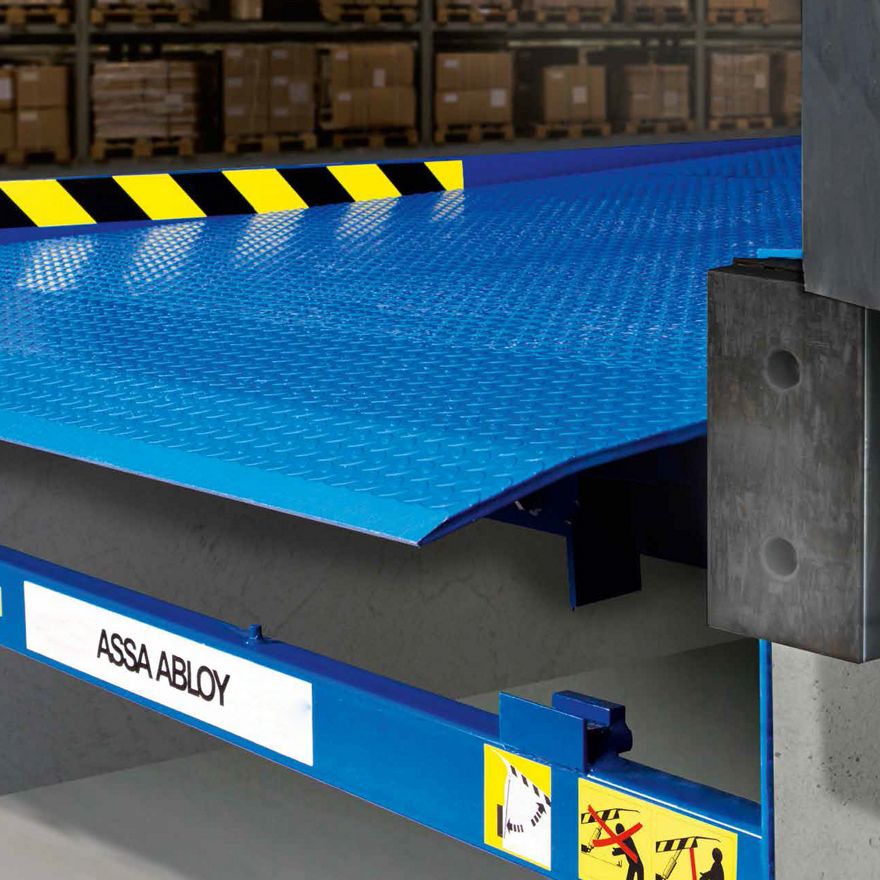

    ASSA ABLOY DL6211S hydraulic swing-lip dock leveller
    ASSA ABLOY DL6211S hydraulic swing-lip dock leveller

    1 of 3

    Cookie consent

    This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

    *Your choice will be saved in a cookie until you have closed your browser.

    ASSA ABLOY DL6211S Swingdock 100

    • Product ID: DL6211S
    • Normal length: 2000, 2500, 3000 mm (other sizes on request)
    • Normal width: 2000, 2200 mm
    • Load capacity; 100 kN (10 tonnes)
    • Vertical working range; Rise above dock up to 270 mm, Fall below dock down to 270 mm
    • Platform tear-plate thickness: 8 mm S355 (8/10 mm)
    • Lip material & length: Steel, 400 mm
    • Control unit protection class: IP 54
    • Nominal voltage: 400V 3-phase, 230V 3-phase
    • Nominal motor power: 1,5 kW
    • Temperature range hydraulic oil: -15°C - +60°C
    • European standard: EN1398 dock levellers
