    ASSA ABLOY DL6130C Combidock

    • ASSA ABLOY

    Efficient handling for vehicles of all sizes with the small and large vehicle ASSA ABLOY Combidock

    The small and large vehicle ASSA ABLOY Combidock dock leveller eliminates the need for different ramp heights and thereby reduces building costs. With a simple turn of a switch, this intelligent telescopic-lip leveller can handle vehicles of all sizes. A custom designed safety control system ensures the leveller automatically follows vertical movements of a vehicle bed as forklift trucks move to and from the trailer/vehicle. Should the trailer or van bed move horizontally (vehicle creep), the same automatic system adapts position to keep the leveller-lip against the bed, facilitating safe and smooth passages at all times.

    + Add to NBS Specification

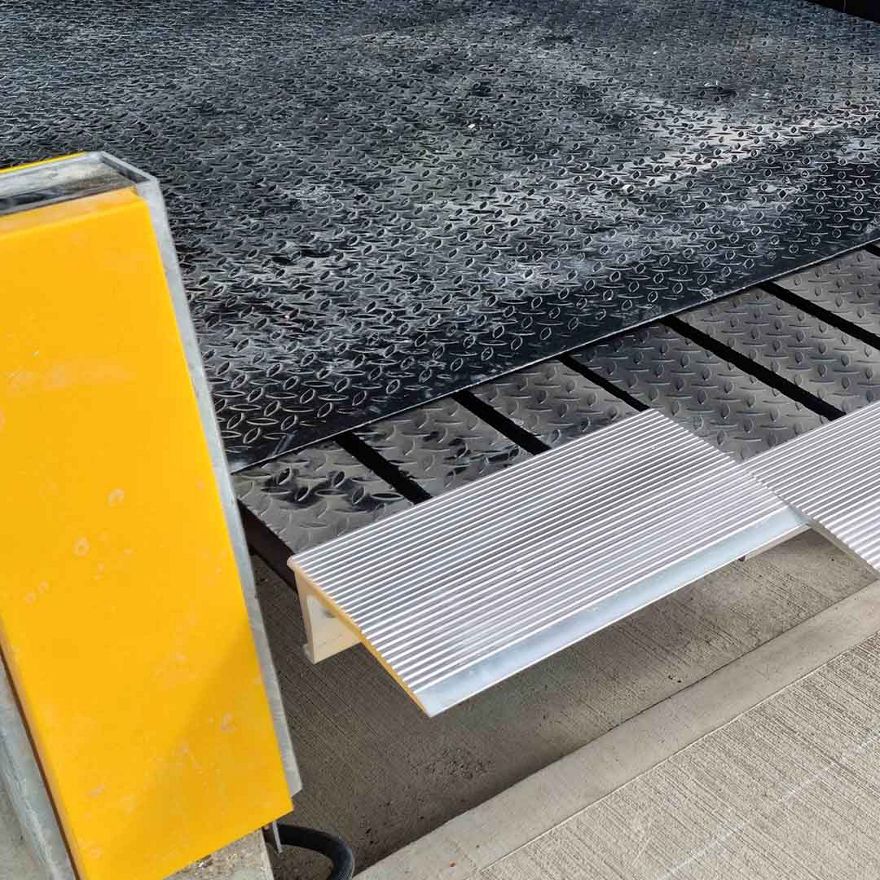

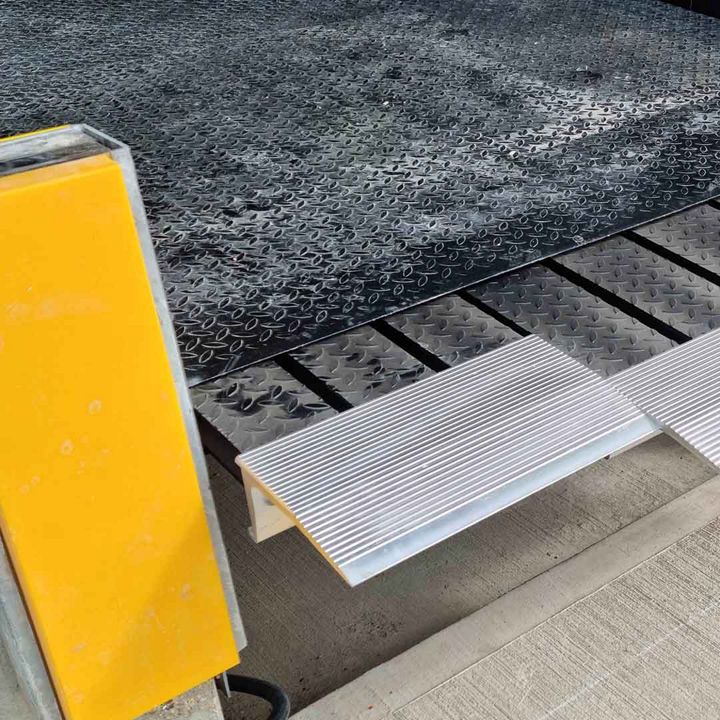

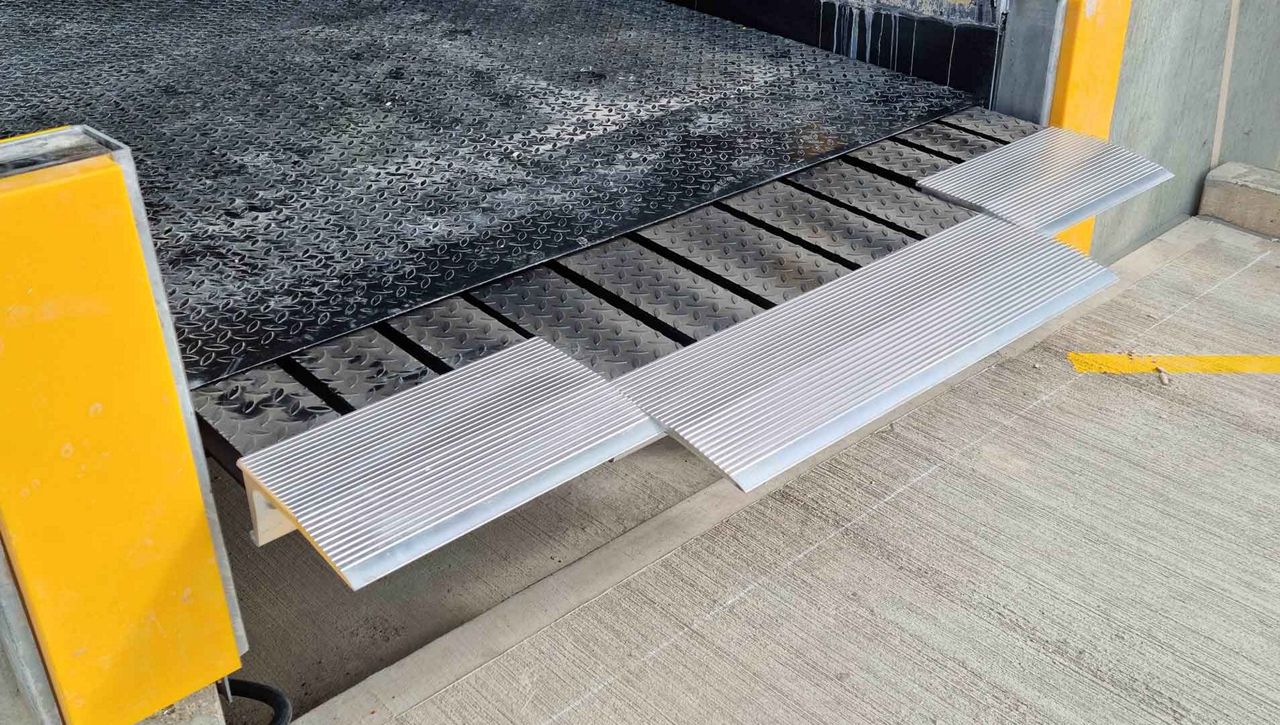

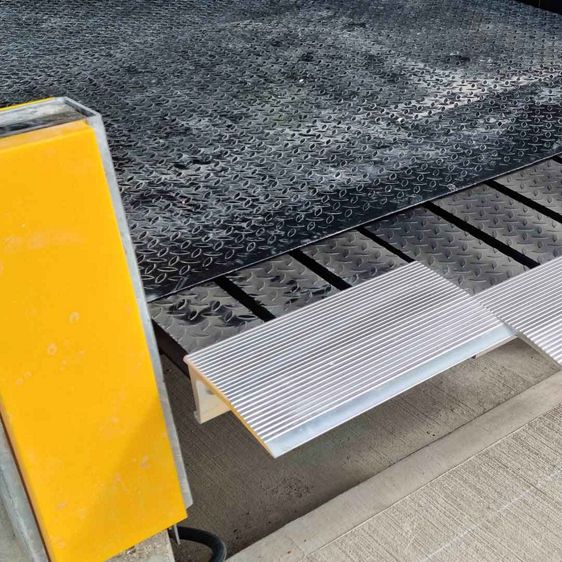

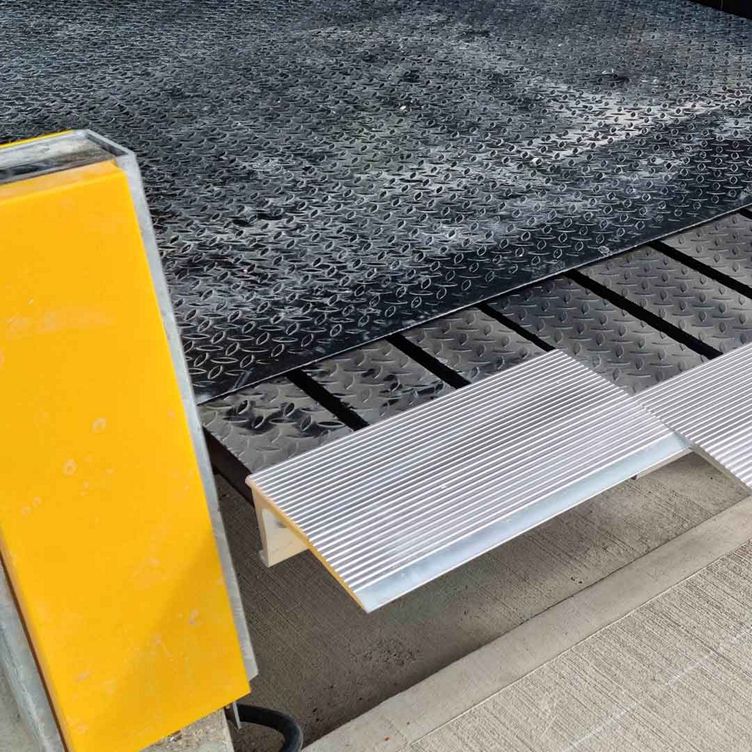

    ASSA ABLOY DL6130C Combidock dock leveller close up
    ASSA ABLOY DL6130C Combidock dock leveller close up

    1 of 2

    Cookie consent

    This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

    *Your choice will be saved in a cookie until you have closed your browser.

    ASSA ABLOY DL6130C Combidock

    • Product ID: DL6130C
    • Nominal length: 3000, 3500, 4000 mm
    • Nominal width: 2000 mm
    • Load capacity: lorries 60 kN (6 tonnes) vans 20 kN (2 tonnes)
    • Vertical working range: Rise above dock up to 590 mm,  Fall below dock down to 650 mm
    • Platform tear-plate thickness: 8/10 mm
    • Max. point load leveller platform: 6.5 N / mm² (8 mm tear plate)
    • Lip material & length: aluminium, 500 mm
    • Control unit protection class: IP 54
    • Nominal voltage: 400V 3-phase
    • Nominal motor power: 1.5 kW
    • Control unit: standard truck / city van mode Impulse auto button. Optional with door operation
    • European standard: EN 1398 Dock levellers

    BIM objects

    Download the ASSA ABLOY Combidock dock leveller as a BIM object:

    • ASSA ABLOY DL6130C Combidock
