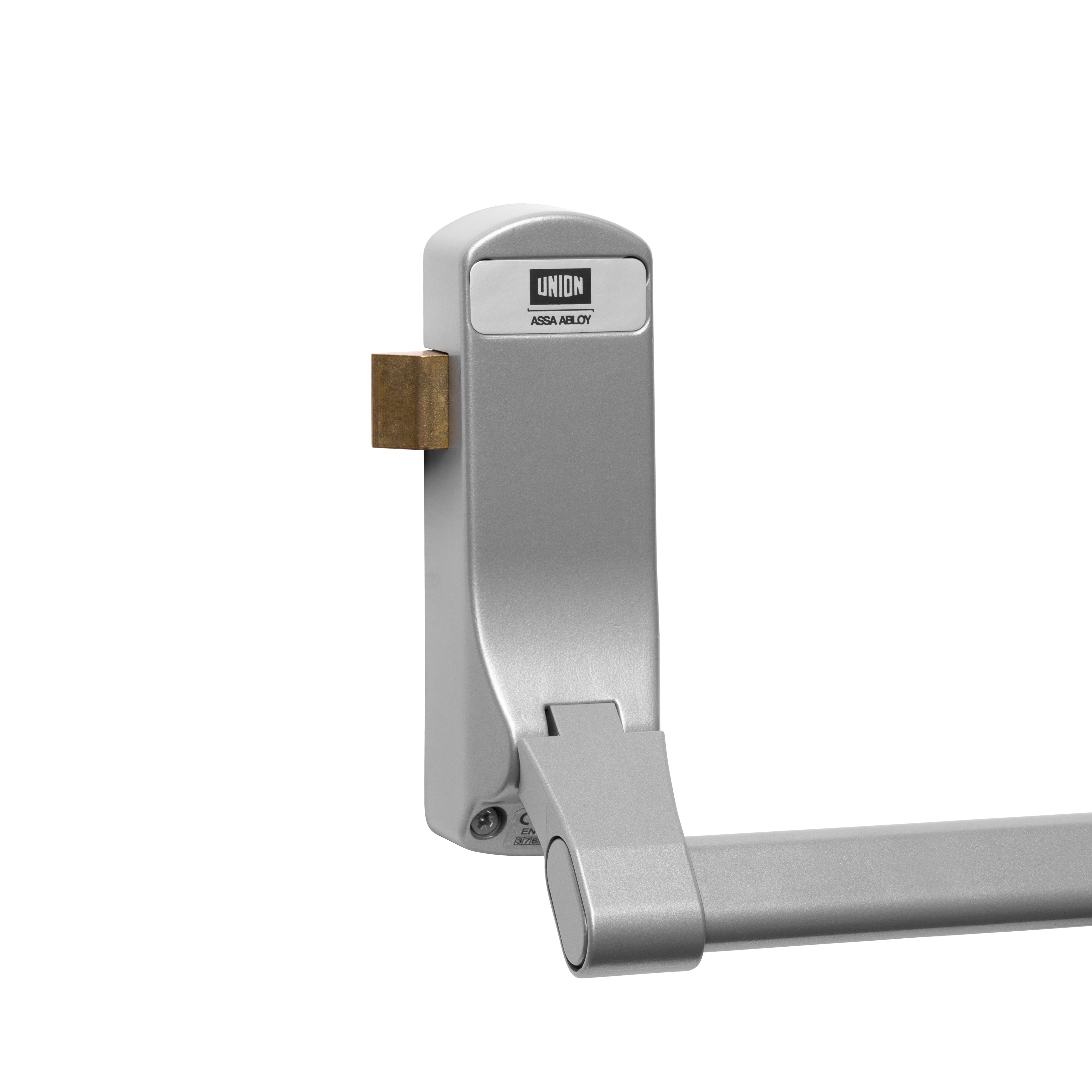

    ExiSAFE CE853 panic latches

    The Exisafe CE853 panic latch is for use in buildings that are accessed by the public, its push bar can be cut to size on site to fit it to each door and downward pressure on the bar withdraws the latch ensuring the immediate release of the door. It has universal handing and can be used on outward-opening single doorsets. It is tested to EN 1125 and up to FD120 on timber doors and FD240 on metal doors.

    1 of 2

    Single panic latch

    Universal handing

    1180mm push bar - can be cut to size on site

    For use on outward opening single doorsets

    Timber or metal fixings variants available

    • Brochure
    • Datasheet

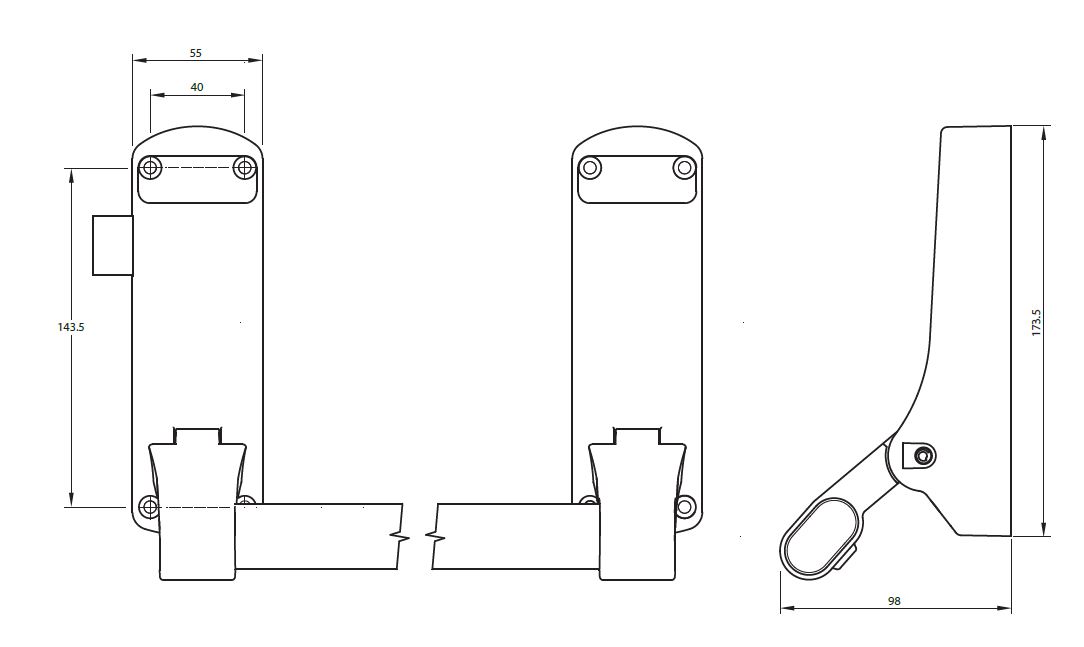

    • Dimensional Drawings
    • DoP
    NameValue
    StylePanic
    DoggedNo
    FinishSilver
    HandingUniversal
    Warranty2 Years
    ActivationPush Bar
    Bolt StyleShoot Bolts
    Dimensions (mm)1220 X 160 X 75
    Durability200000
    Projection (mm)98
    Device TypePush Bar
    Finish TypeSilver
    Door OpeningOutward
    Locking Points1
    Max Door Width (mm)1220mm
    Micro SwitchedNo
    Max Door Height (mm)2440mm
    Max Door Weight (kg)200kg
    Mounting MethodSurface Mounted
    Operator DetailPush Bar
    Cylinder IncludedNo
    Fire Door ApprovalYes
    Max Door Thickness (mm)46 To 51
    Max Door Weight (kg)101kg To 200kg
    Suitable Door MaterialSteel & Timber
    StandardsCertifire, EN 1125, EN 1634-1, UKCA
    Door TypeMetal, Single, Timber
    FeatureSingle Door
    FunctionShoot Bolt
    ProductProduct IDAttributes
    ExiSAFE CE853 panic latchesJ-CE853PL-SIL
    Fixings: Timber Door
    ExiSAFE CE853 panic latchesJ-CE853PLM-SIL
    Fixings: Metal Door
