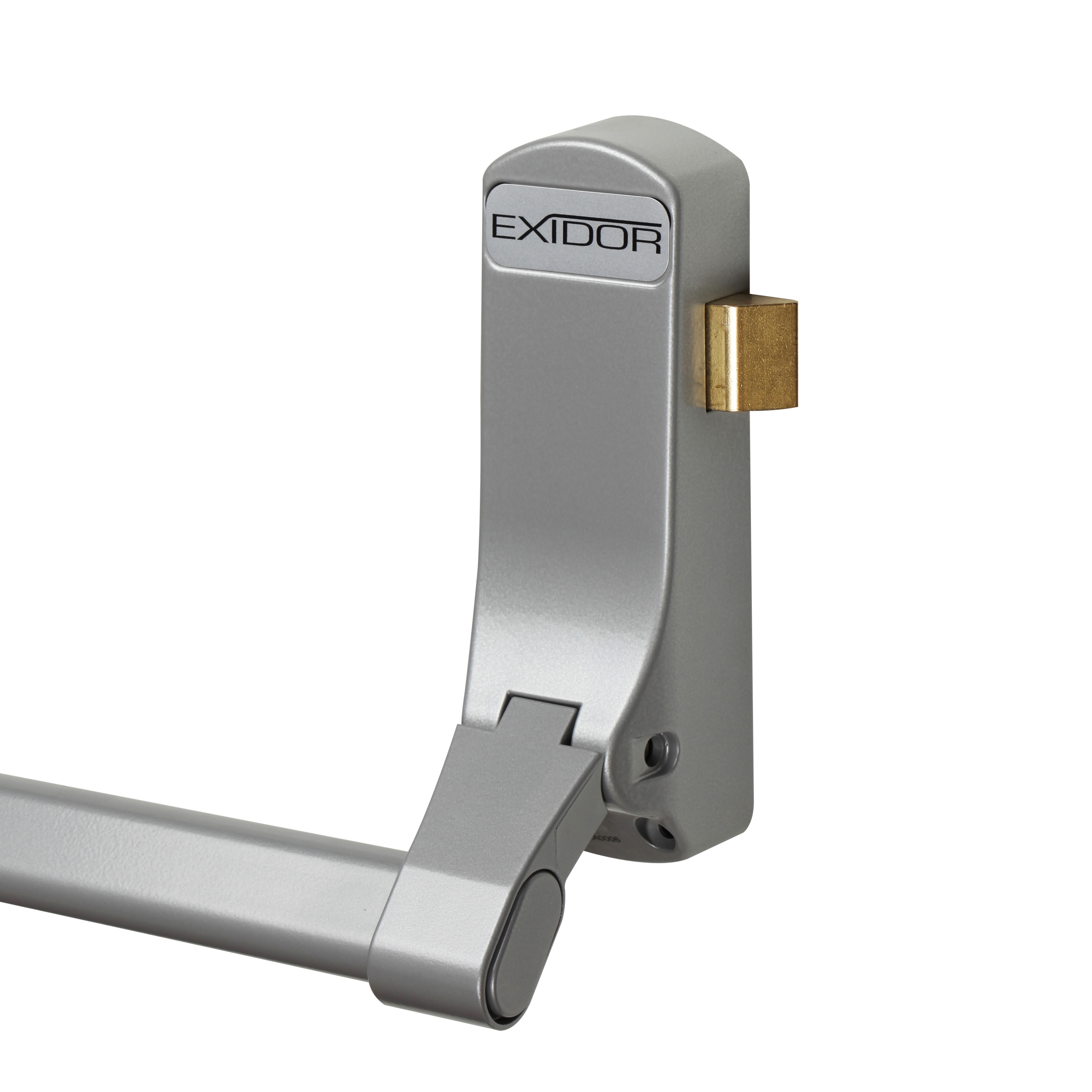

    296 panic latches

    Exidor single-point locking panic latch, designed for use with single and double door applications. The unit is operated by pushing the bar down into the door face to retract the latch, releasing the bar returns the latch to the rest position. The push bar design can be easily cut to size to suit different door widths and can be fitted with a lever or knob outside access device. Certified in compliance with EN 1125 with suitability for timber doors up to FD120 and FD120/FD240 metal doors. Indicate the required finish when ordering.

    Minimal hardware on door face for a clean appearance

    Supplied with either timber or steel door keeps and fixings

    Microswitch option available (Suffix order code with “MS” for microswitch)

    Keeps available for alternative frame arrangements and aluminium doors

    Suited to most general purpose applications and easy to adjust to suit door

    NameValue
    DoggedNo
    AlarmedNo
    FixingsFixings Supplied
    Warranty10 Years
    ActivationPush Bar

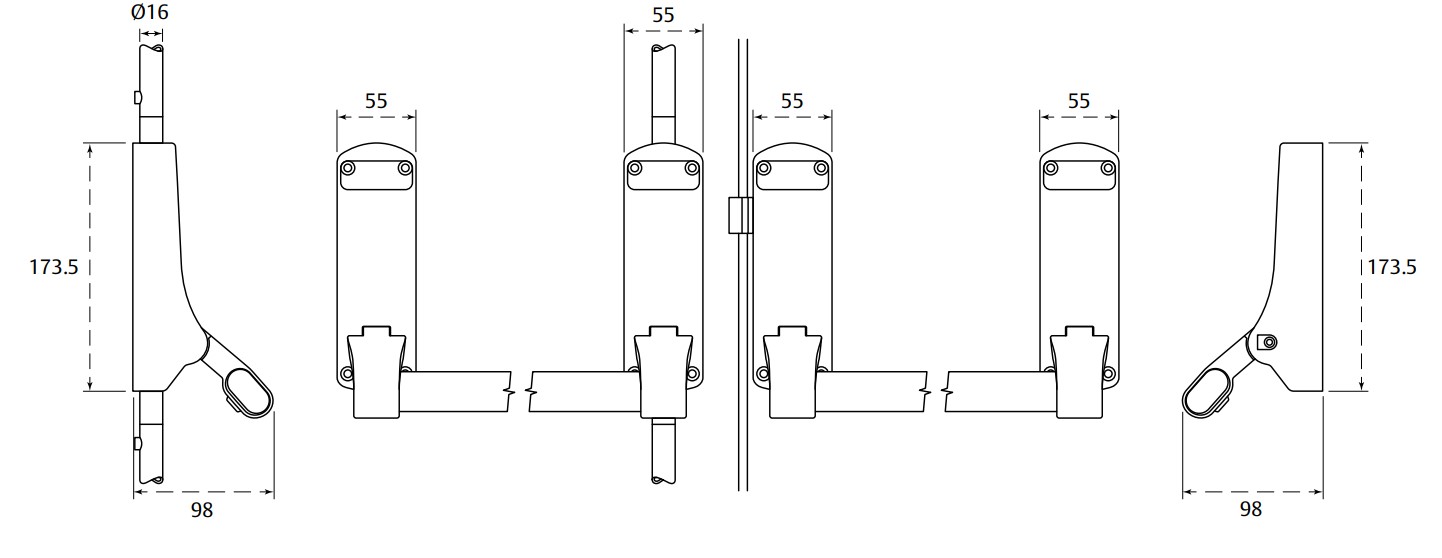

    Dimensions (mm)75 X 160 X 1250
    Durability200000
    Projection (mm)98
    Device TypePush Bar
    Door OpeningOutward
    Locking Points1
    Max Door Width (mm)1220mm
    Max Door Height (mm)2440mm
    Max Door Weight (kg)200kg
    Mounting MethodSurface Mounted
    Operator DetailPush Bar
    Cylinder IncludedNo
    Fire Door ApprovalYes
    Max Door Thickness (mm)46 To 51
    Max Door Weight (kg)101kg To 200kg
    StandardsCE, Certifire, EN 1125, EN 1634-1, UKCA
    Door TypeRebated Double Active Leaf, Single, Timber
    FeatureCentral Latch Lock
    FunctionCentral Latch/ Lock
    ProductProduct IDAttributes
    296 panic latches15000100-AA
    Finish: Silver
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15000112
    Finish: Passivated and Chromated Gold
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15000117
    Finish: Passivated and Chromated Silver
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15000120-AA
    Finish: Silver
    Handing: Right
    Suitable Door Material: Timber
    296 panic latches15001100
    Finish: Gold
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15004100
    Finish: Black
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15005100
    Finish: Brass
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15006100
    Finish: Satin Stainless Steel
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15007119
    Finish: Jet Black
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15901076
    Finish: Sepia Brown
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15901740
    Finish: Olive Brown
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15907204
    Finish: White and Green
    Handing: Left
    Suitable Door Material: Timber
    296 panic latches15907205
    Finish: Old Penny Bronze
    Handing: Left
    Suitable Door Material: Timber
