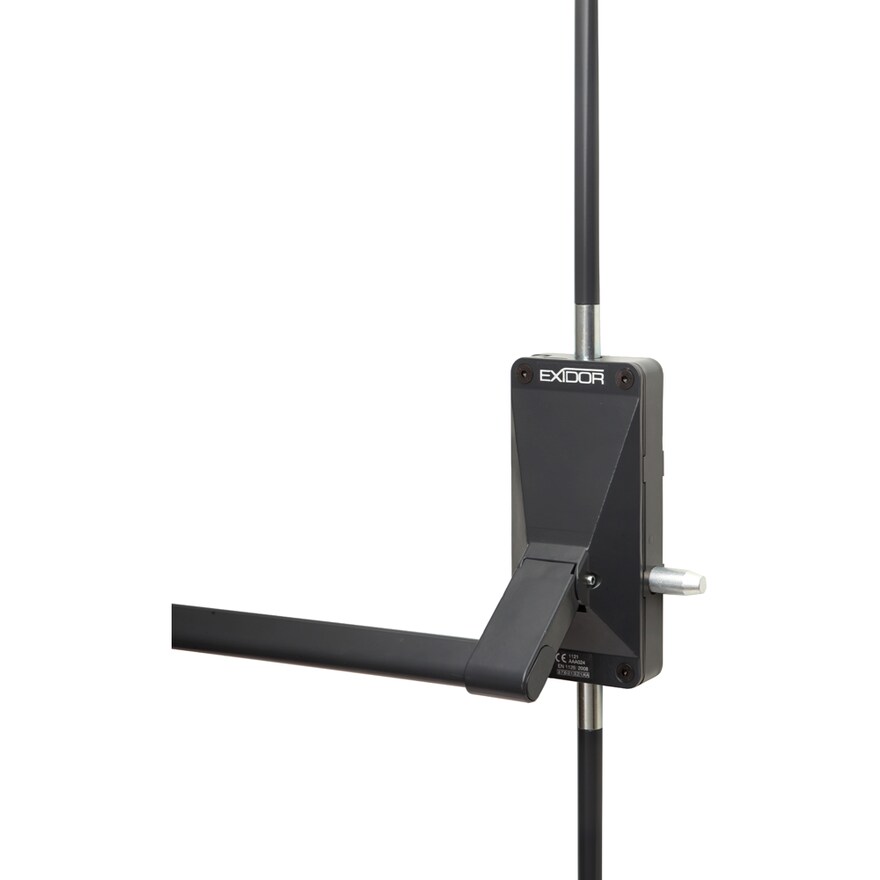

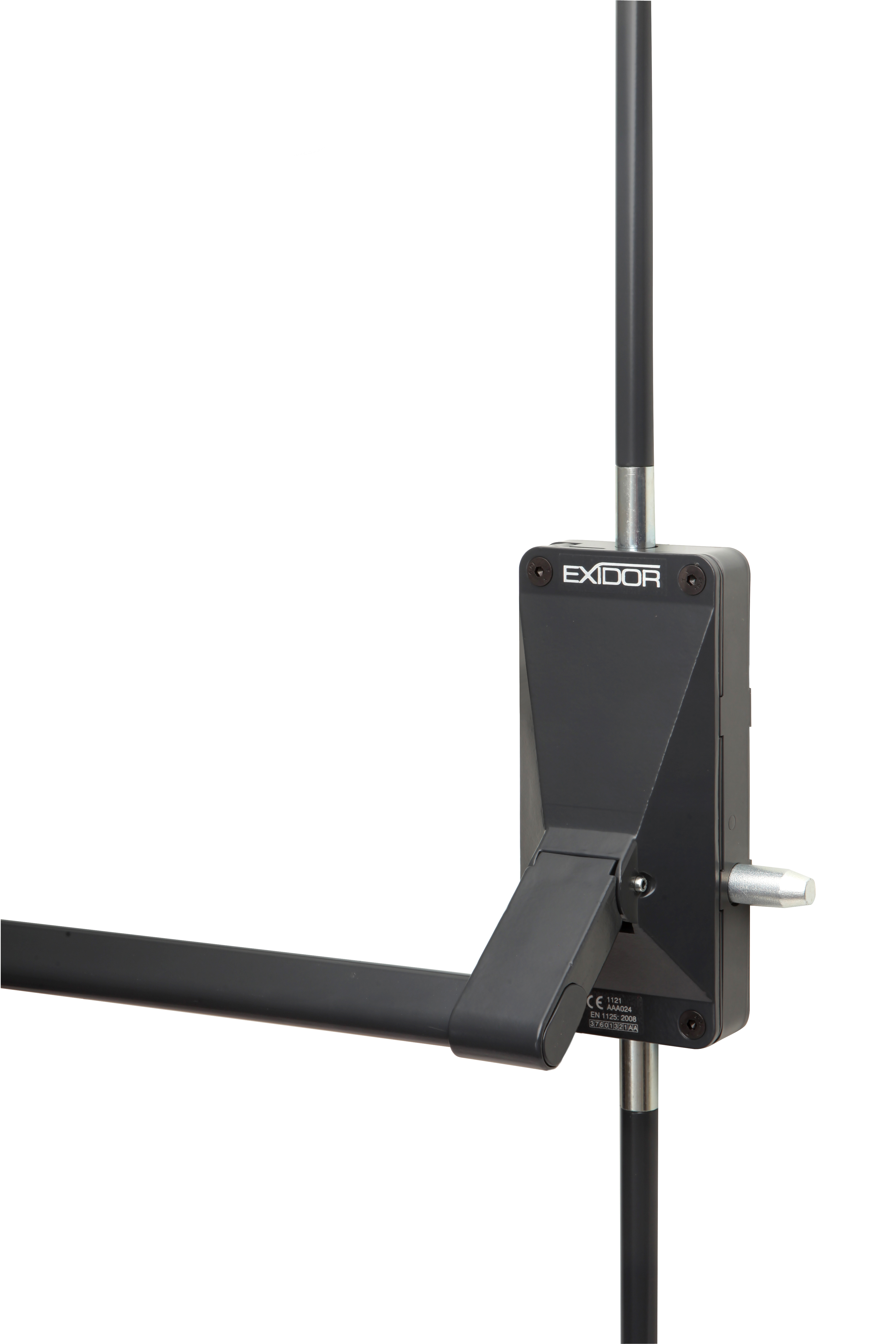

703B/30 Push bar with 3 point locking

Exidor high-security three-point locking panic push bar with shoot bolts. Ideal for utilities and data centres, where greater intruder resistance is required. Supplied with timber or steel door keeps and fixings, alternative keeps are also available on request. The unit is operated by pushing the bar down into the door face to retract the bolts, the bolts remain retracted until automatically released on the closing of the door. Certified in compliance with EN 1125 and suitable for use on FD30/FD60 timber doors and FD120/FD240 metal doors. Tested and approved to LPS 1175.  Indicate the required finish when ordering. Microswitch option available - suffix order code with “MS” for microswitch.
