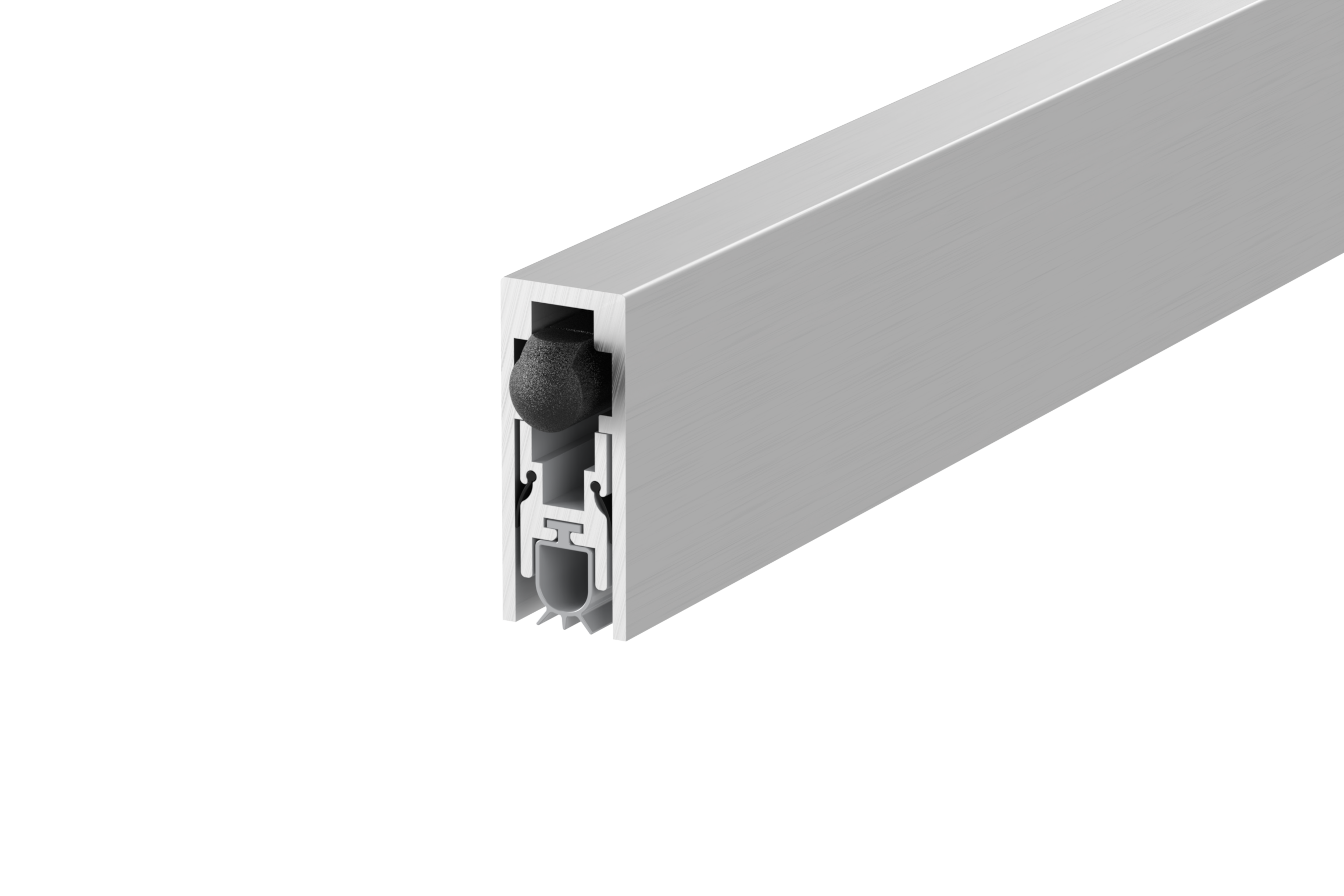

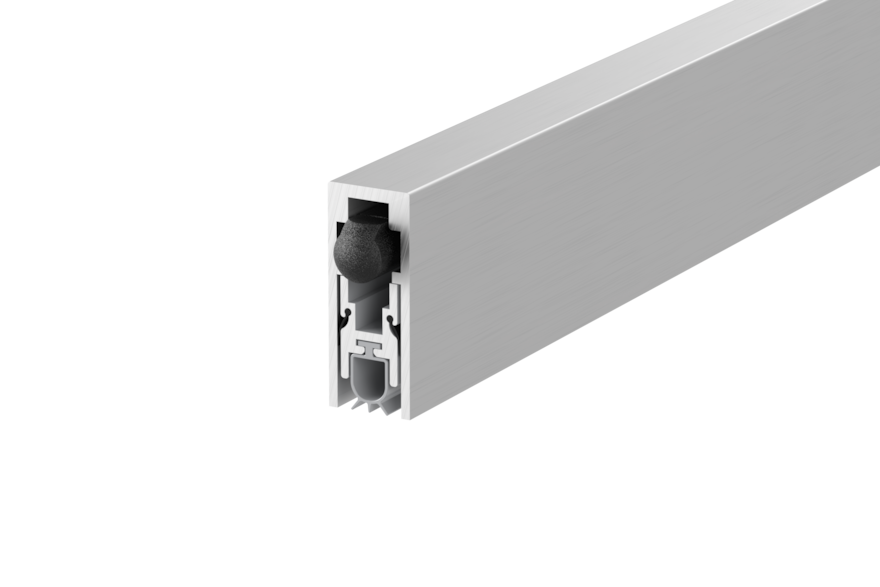

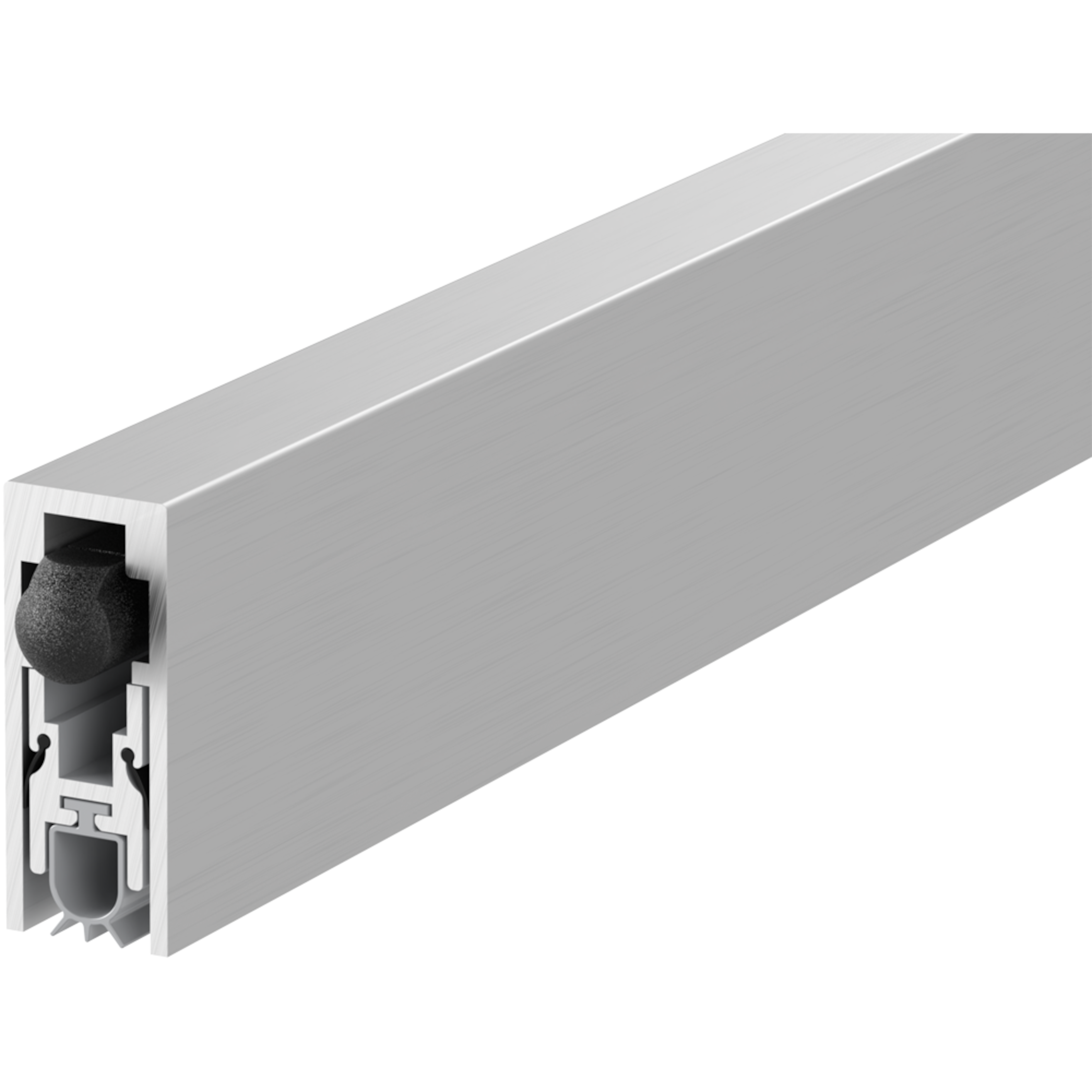

    LAS8001 si drop seal - 735mm, silver

    It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Requires no power connection. Self-levelling on uneven floors; seal height can be adjusted independently of fixing screws.

    1 of 4

    Always refer to door manufacturers' test evidence to determine the seal size and configuration for your needs

    • CF5179
    • Brochure
    • Datasheet
    NameValue
    SKULAS8001/0735A00
    BrandLorient
    Width (mm)14
    ColourSilver
    FinishSilver
    Height (mm)35
    Length (mm)735
    WarrantyNo
    Fire RatedYes
    Finish TypeSilver
    Gasket ColourGrey
    Location on DoorBottom Of The Door
    Min/Max Gap Sizes (mm)1mm/13mm
    EAN code5051325084454
    LocationDouble Leaf Door, Left Handed Door, Right Handed Door, Single Leaf Door, Single Swing Door
    MaterialAluminium, Silicone Rubber
    StandardsBS 476-20:1987, BS 476-22:1987, BS 476-31.1:1983, EN 1634-3:2004, EN ISO 10140-2:2010
    Fire Rated MetalNo
    Fire Rated TimberFD30
