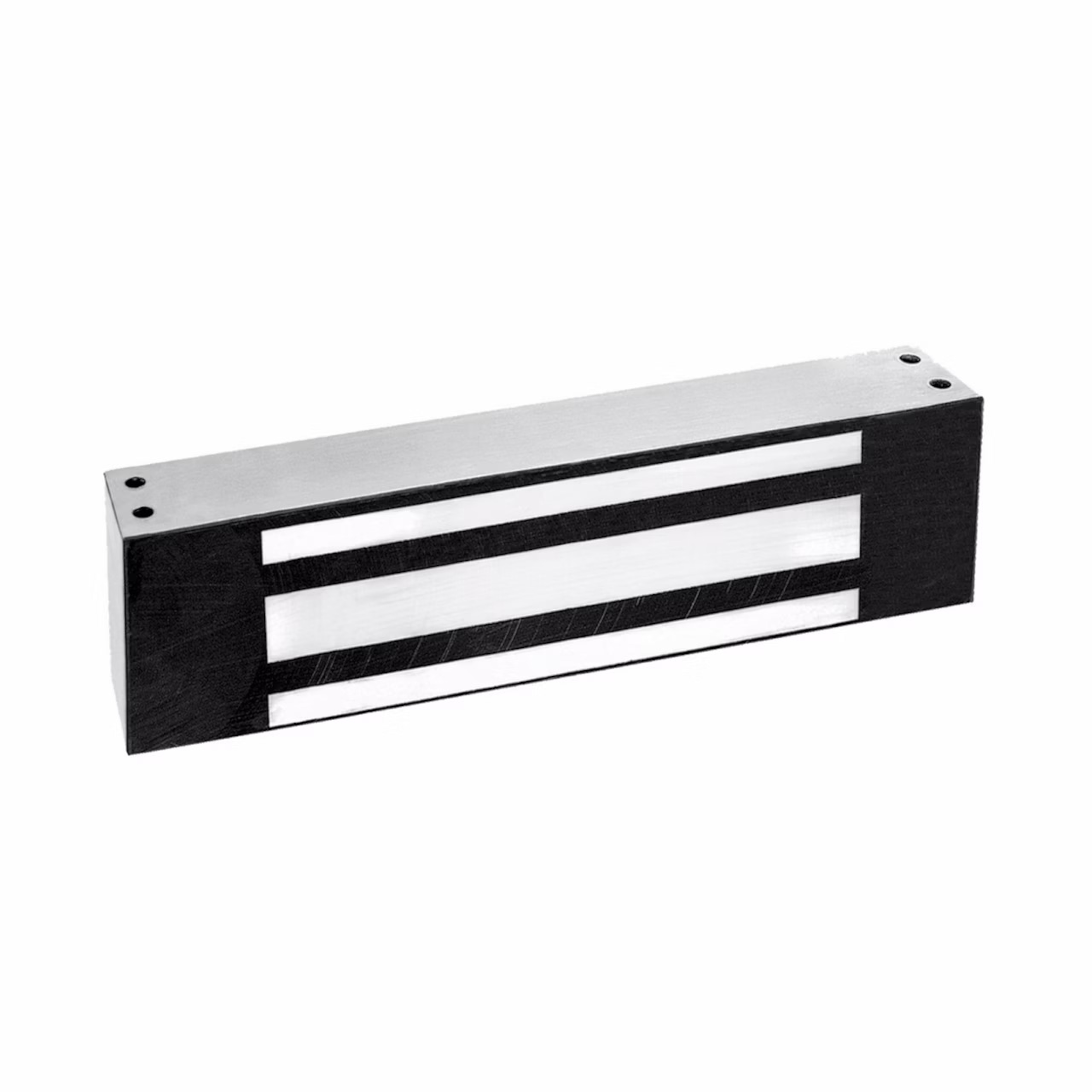

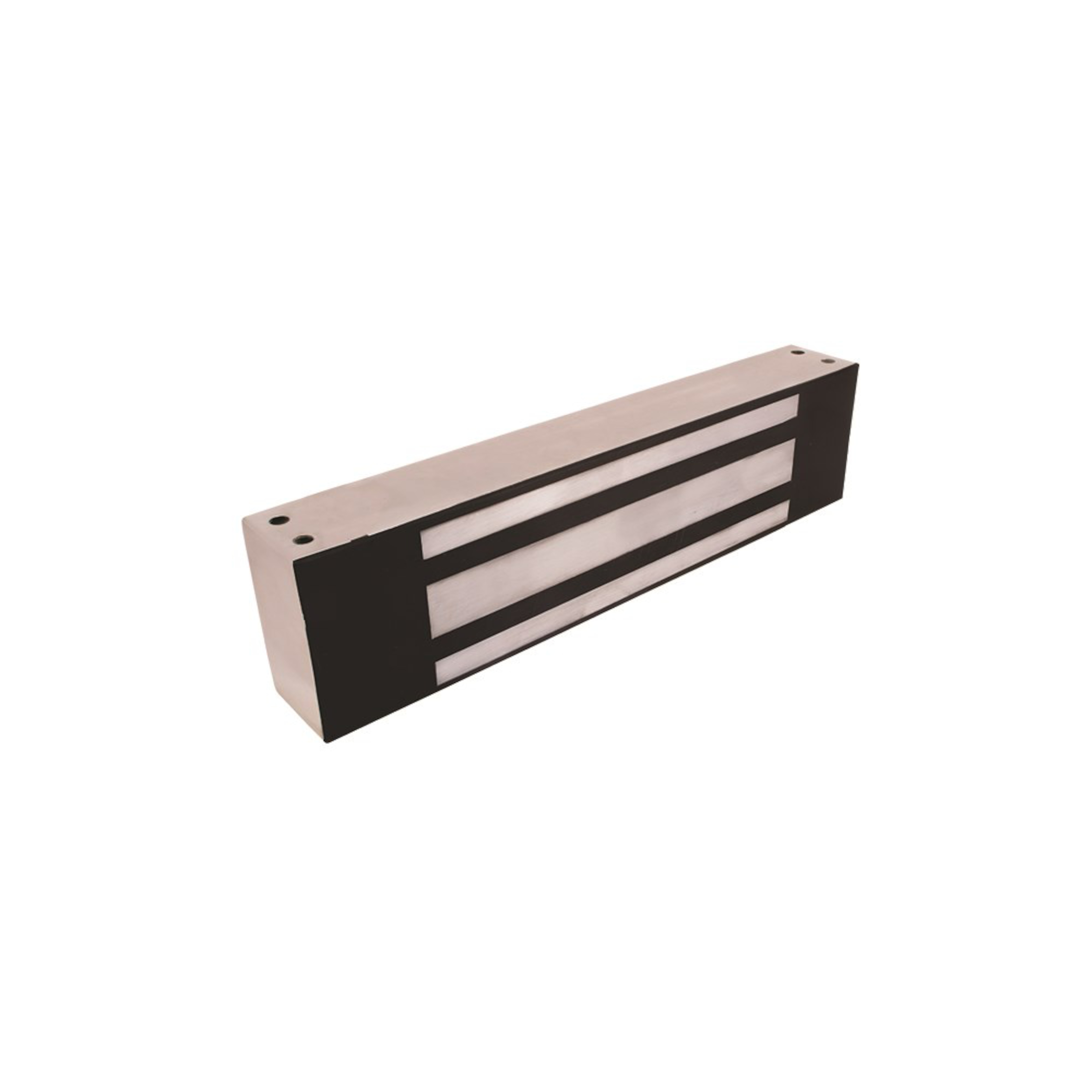

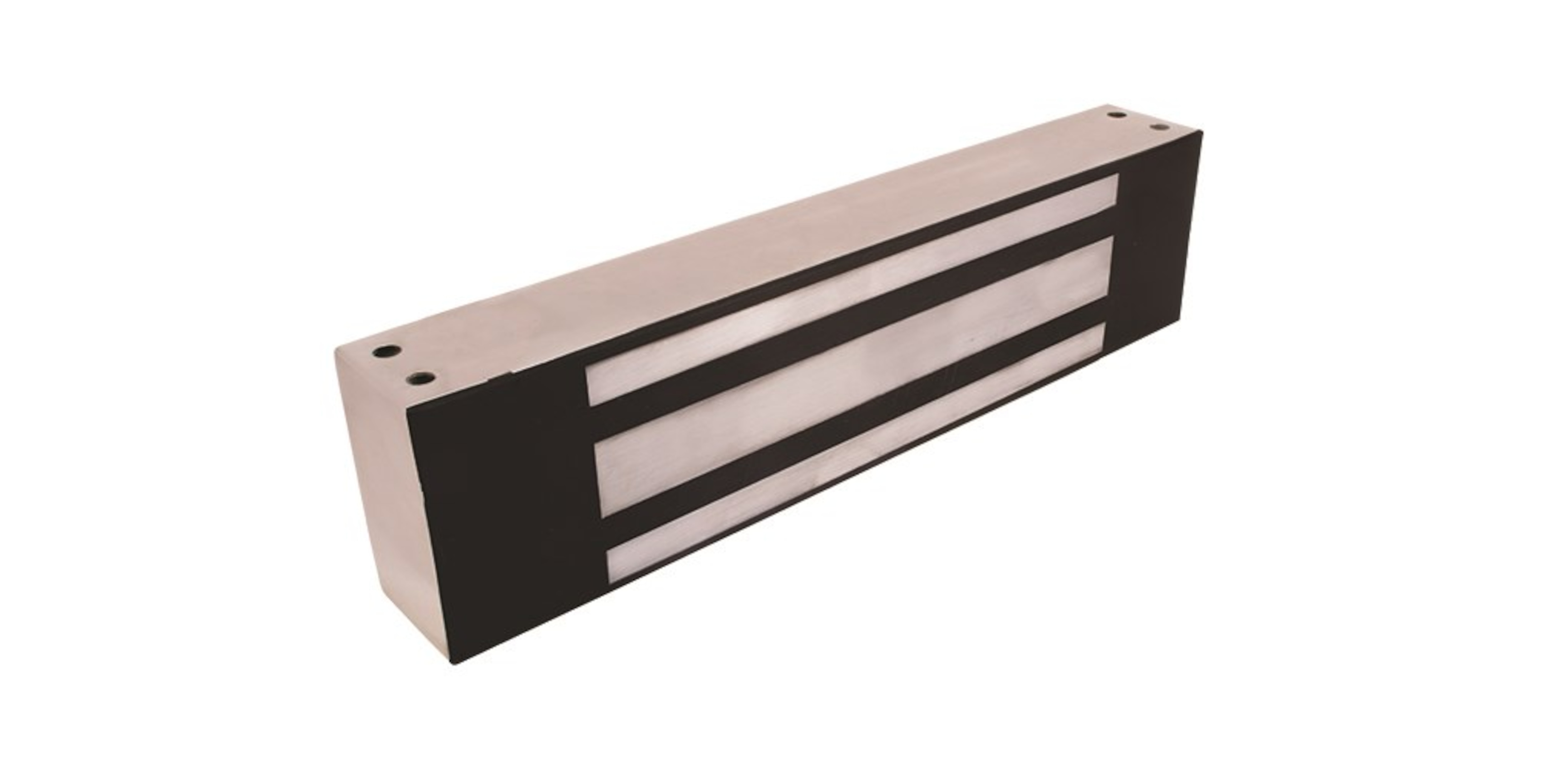

    M82 extreme-strength electromagnetic locks

    The M82 is a highly durable, extreme strength electromagnet, with 816kg holding force. Ideal for high security and high risk interior and exterior applications, where extreme forces may be encountered. Features a patented instant release circuit eliminates residual magnetism, for easy opening and closing. Designed with ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Features noise suppression with built-in MOV.

    1 of 3

    Efficient and low power usage

    Automatic dual-voltage configuration with no field adjustment required

    Fully sealed tamper and weather resistant electronics

    Rust resistant with all ferrous metal surfaces plated for durability and external use

    Bracket mounting and internal wiring chamber allows quick and accurate installation using minimal tools

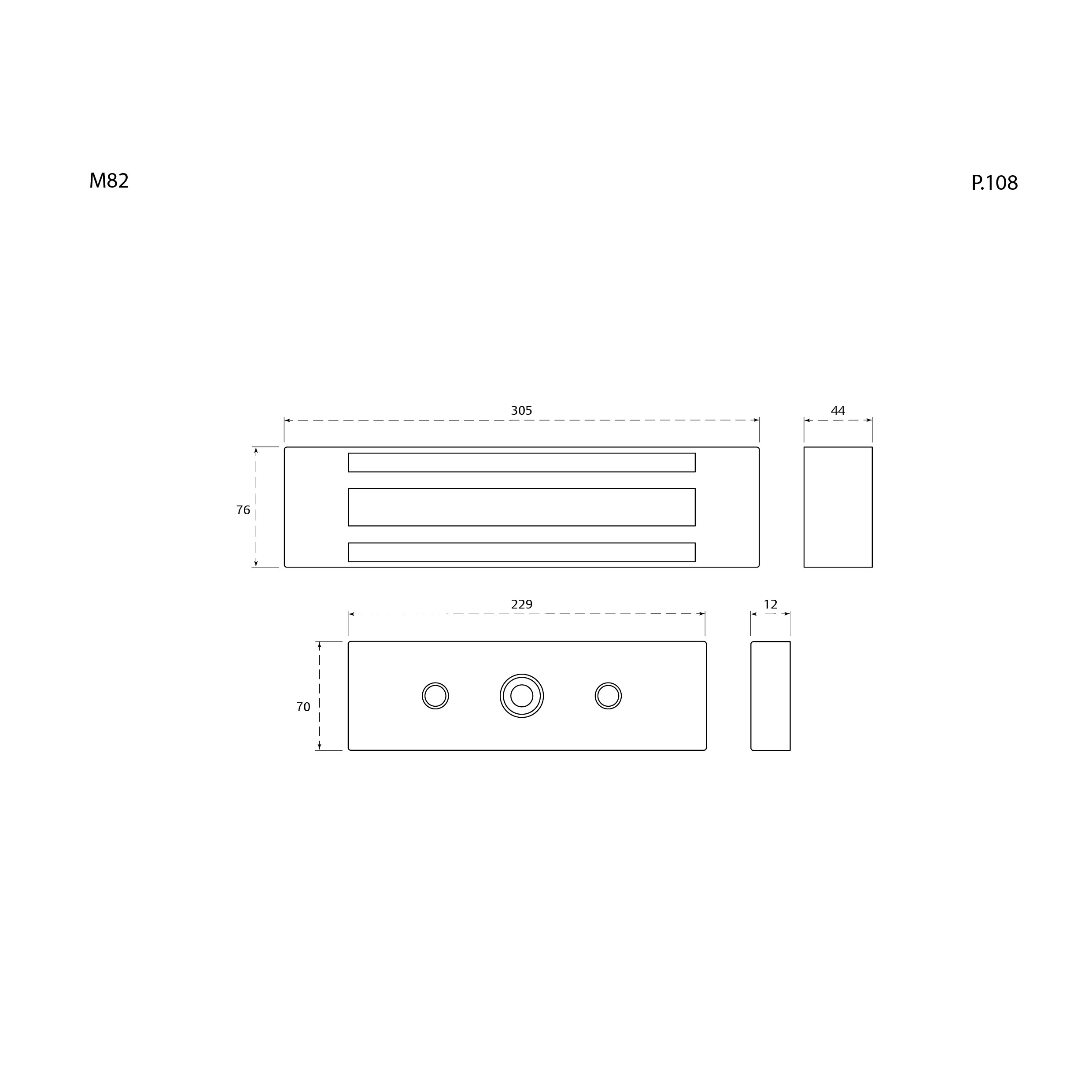

    • Dimensional Drawings
    • DoP
    • DoP
    • DoP
    NameValue
    StyleElectromagnetic
    WiresYes
    FinishSatin Stainless Steel
    WarrantyLifetime
    Faceplate229 X 70
    Dimensions (mm)305 X 76 X 44
    Finish TypeSilver
    Holding force (kg)816
    Door Leaf MaterialTimber & Metal
    Holding Force (kg)751kg To 1000kg
    Operating Temperature-40 To +60
    Rated Operational Voltage Tolerance12 Or 24v DC
    StandardsANSI, CE, EN 61000-6-1, EN 61000-6-3, UKCA, UL294
    Current Draw350mA At 12V DC And 200mA At 24V DC
    Door TypeMetal, Timber
    FunctionConfigurable
    ProductProduct IDAttributes
    M82 extreme-strength electromagnetic locksM82BDM
    Monitoring: Bondstat Door Position Switch
    Mounting Method: Direct
    M82 extreme-strength electromagnetic locksM82BM
    Monitoring: Bondstat
    Mounting Method: Direct
    M82 extreme-strength electromagnetic locksM82FBDM
    Monitoring: Bondstat Door Position Switch
    Mounting Method: Face Drilled
    M82 extreme-strength electromagnetic locksM82FBM
    Monitoring: Bondstat
    Mounting Method: Face Drilled
    M82 extreme-strength electromagnetic locksM82FGBM
    Monitoring: Bondstat
    Mounting Method: Face Drilled Gate Conduit
    M82 extreme-strength electromagnetic locksM82GBM
    Monitoring: Bondstat
    Mounting Method: Gate Conduit
