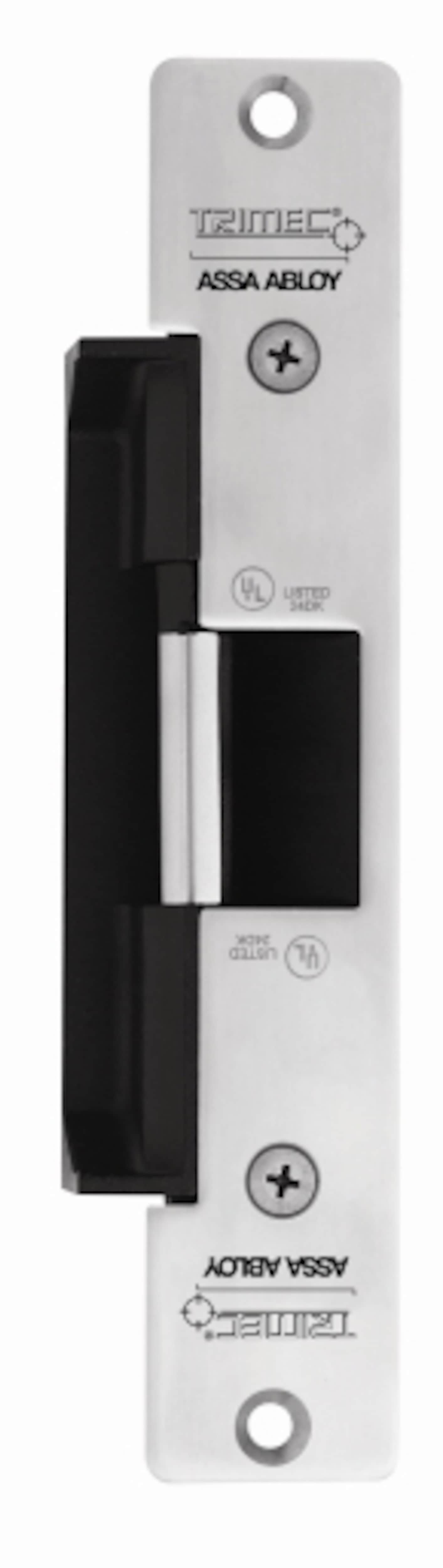

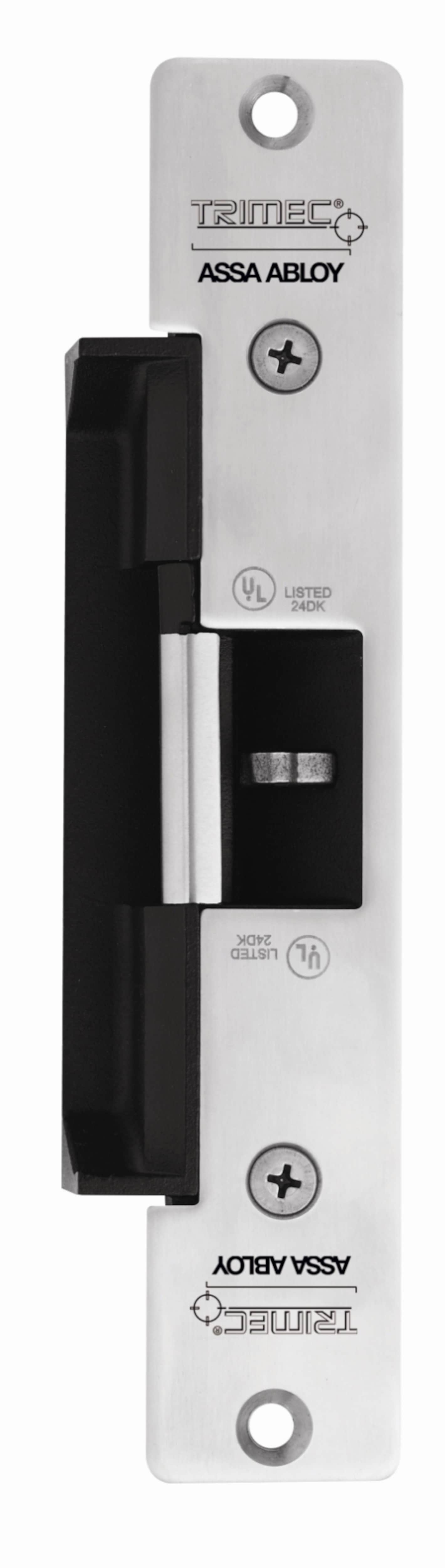

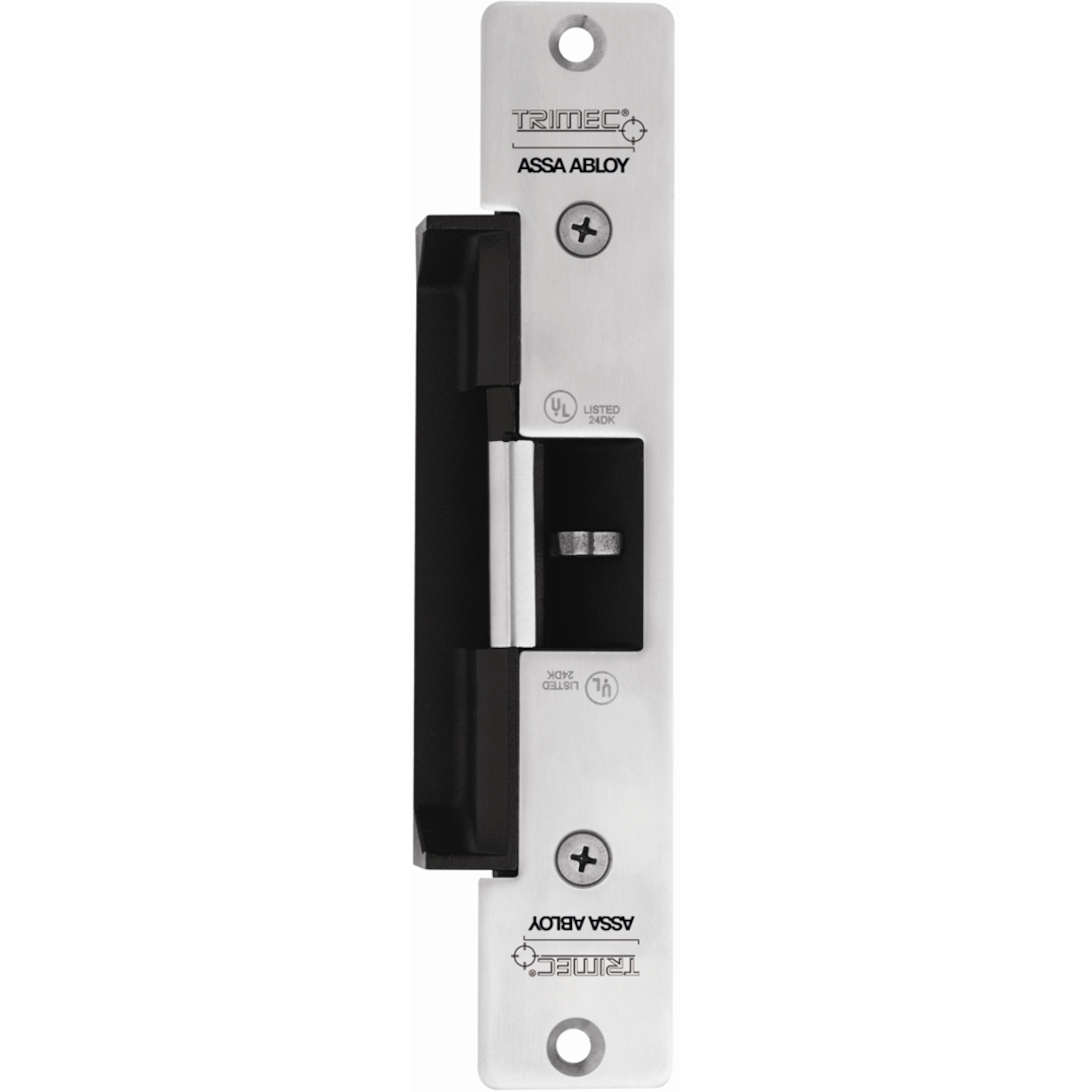

Trimec ES300 series electric strike
- Fail safe/fail secure changeable on site
- Available in 12Vdc 850kg holding force
- 1 million cycles endurance rating
- Stainless Steel locking pins
- Timber or metal doors
- Open in/open out doors
- Suitable for use with all access control systems
- Continuously rated solenoid
- Optional mounting kit
- Tricare 5 Year Warranty
- CE marked to EMC Directive
Voltage: 12Vdc
Current: 175mA @ 12Vdc
Solenoid: Solenoids rated for continuous use.
Monitoring: None
Holding Force: 850kg static strength rating
Endurance: Cycle tested to 1,000,000 operations
Environment: Operational temperature range 20°C to +60°C
Body: Solid Stainless Steel Construction
Keeper: Stainless Steel
Latch: Suit 18mm latch bolt with 3mm door gap
