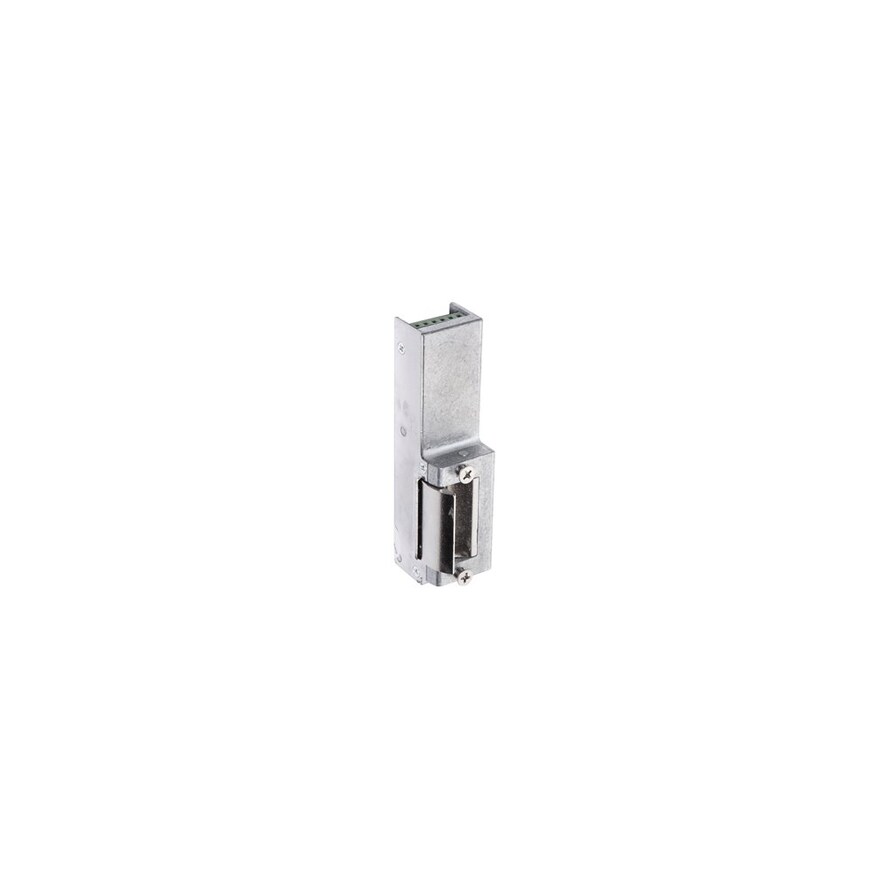

    ASSA 75 Multi-Strike Body 12/24V

    Experience enhanced security and convenience with the ASSA ABLOY 75 series electric strike. Designed for seamless access control, this durable and reliable device ensures smooth operation while maintaining a sleek appearance. Perfect for modern buildings, it offers peace of mind and effortless entry, elevating your security system to the next level.

    1 of 2

    Continuous duty AC or DC

    Fail-locked or fail-unlocked with built-in microswitch

    The strike may be set to either open when the current is on and lock automatically when the current is switched off (fail locked) or be closed as long as the current is on and open automatically when the current is switched off (fail unlocked)

    A microswitch monitors the latchbolt engagement

    High strength - resists 700kg sidepressure on the staple

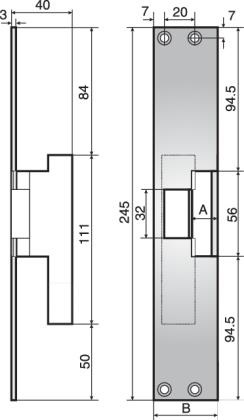

    • Dimensional Drawings (for Webshop/AEM/Priint) S3
    • Product Datasheets (for Webshop/AEM) S3
    NameValue
    SKU50382005100
    DutyDC Continuous Duty Fail Locked
    BrandASSA ABLOY ELMECH
    StyleMulti Strike
    WiresNo
    FinishStainless Steel
    Warranty1 Year
    FaceplateFlat
    Dimensions (mm)245 X 40 X 3
    MonitoringNone
    Finish TypeSilver
    Holding force (kg)700
    Mounting MethodConcealed
    Operating Voltage12-24
    Door Leaf MaterialMetal
    Holding Force (kg)501kg To 750kg
    EAN code5011783538456
    StandardsEN 61000
    Range NameASSA ABLOY - El Mech
    Door TypeMetal
    TypeWireless
    FunctionConfigurable
