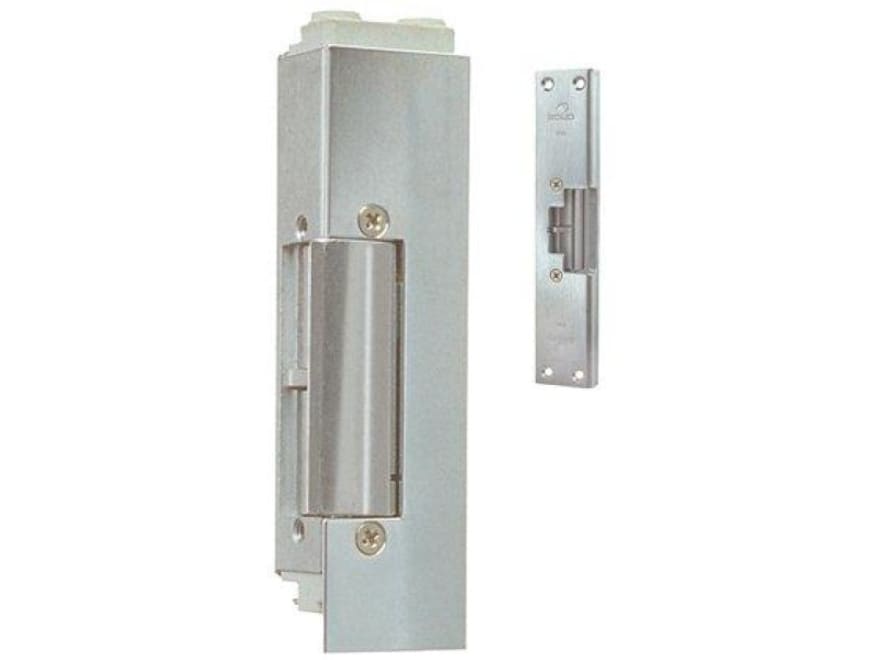

ASSA 514V 12V Strike Body

514E medium strength monitored electric strikes are ideal for areas where high security electric strikes are not required. Designed to be used with both left and right-hand doors without adjustment and durability tested to 1,000,000 cycles. 514E electric strikes resist 450kg of side pressure on the pivoting staple, providing medium strength. Suitable for use with 15mm latch with 3mm door gap.

Body only, order complete with faceplates 5, 10, 505, 510 using below product codes

Faceplate and pivoting staple are manufactured from high grade steel and offers greater protection and resistance to attack

Strike opens when current is on and locks automatically when current is off

Tested to 1,000,000 cycles

Suitable for use with 15mm latch with 3mm door gap

Can be used DIN right and left

Solenoid: Rated for Continuous use

Name	Value
SKU	50112020057
Duty	DC Continuous Duty Fail Secure
Brand	ASSA ABLOY ELMECH
Finish	Stainless Steel
Handing	Universal
Warranty	1 Year
Faceplate	Body Only
Fire Rated	No
Monitoring	Yes
Finish Type	Silver
Holding force (kg)	450
Body Dimensions	90 X 28.2 X 20
Operating Voltage	12V DC
Door Leaf Material	Metal
Holding Force (kg)	301kg To 500kg
Operating Temperature	-15 To +45
Rated Operational Voltage Tolerance	Solenoid: Rated For Continuous Use
EAN code	5011783538258
Standards	CE, EN 14846, EN 61000-6-1, EN 61000-6-3, UKCA
Range Name	Assa Abloy - El Mech
Current Draw	200 MA
Door Type	Metal
Type	Wired
Function	Non-Configurable
