    • 131 series - high security

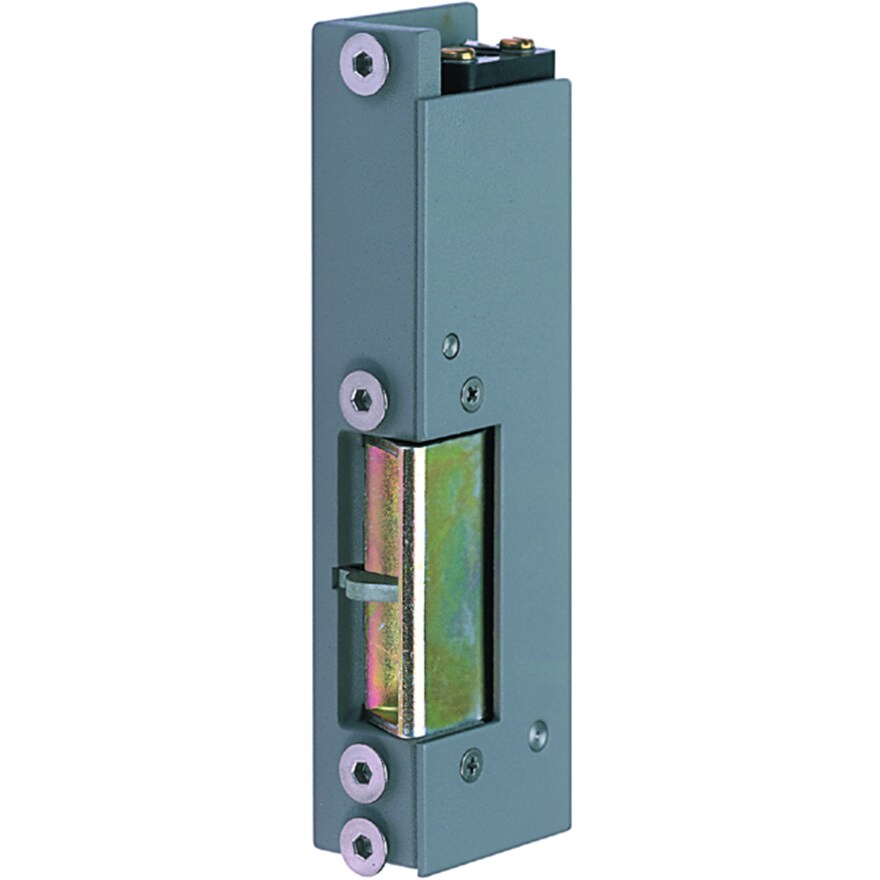

    5131E electric strike (12V, body only)

    For use on external door entry systems where high security and resistance to vandalism is paramount.Supplied fitted with either faceplate 13, 16, 24 or 823, secured with anti­vandal screws.Body, faceplate and pivoting staple are manufactured from high grade steel. Tested to 1,000,000 operations. Very high strength, resists 1,500 kg side pressure on the pivoting staple. Can be used with both left and right hand doors without adjustment. DC continuous duty fail ­locked with built ­in microswitch.The strike opens when the current is on and locks automatically when the current is switched off. A microswitch monitors the latchbolt engagement. Will open even when a side pressure up to 25kg is applied.

    DC continuous duty fail-locked with built-in microswitch

    The strike opens when the current is on and locks automatically when the current is switched off

    A microswitch monitors the latchbolt engagement

    Will open even when a sidepressure up to 25kg is applied

    Very high strength - resists 1,500 kg sidepressure on the pivoting staple

    • Datasheet

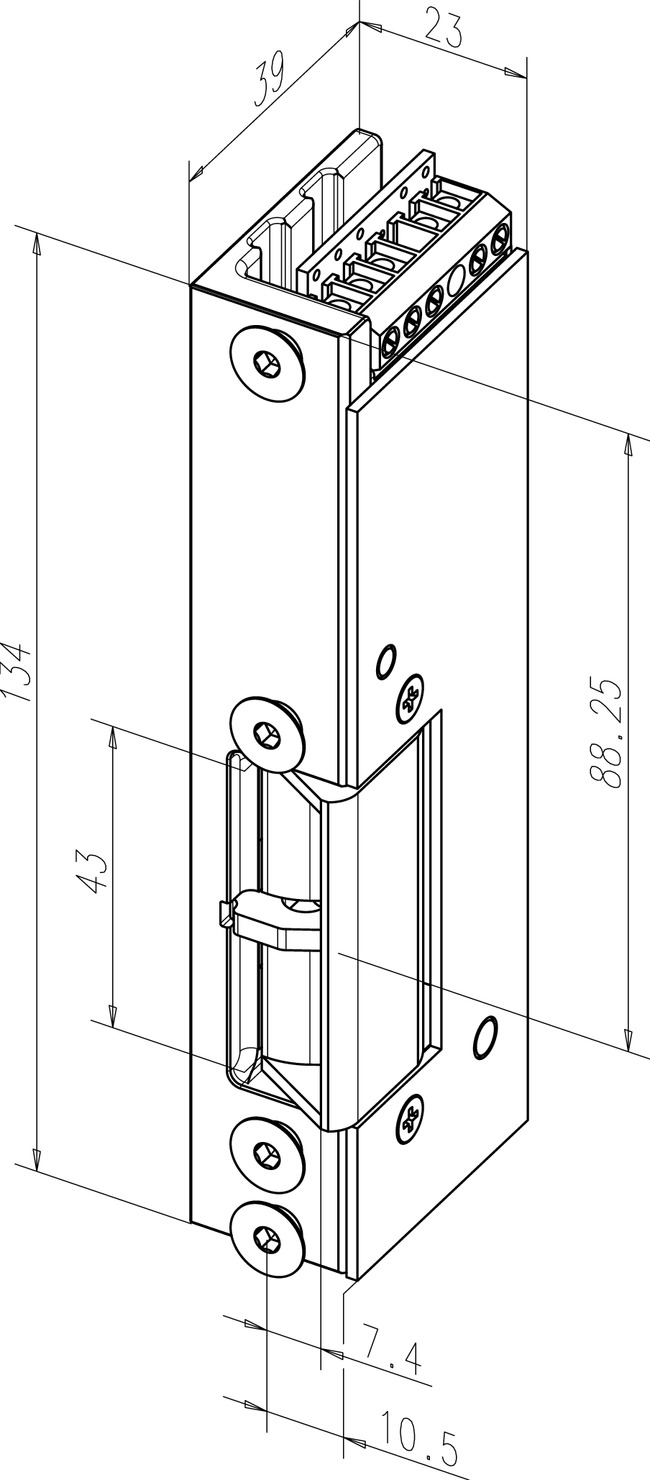

    • Dimensional Drawings
    NameValue
    SKU50215006957
    BrandASSA ABLOY ELMECH
    WiresNo
    FinishStainless Steel
    Warranty1 Year
    Dimensions (mm)134 X 39 X 23
    MonitoringYes
    Finish TypeSilver
    Holding force (kg)1500
    Mounting MethodConcealed
    Side Load Force (kg)25
    Operating Voltage12
    Door Leaf MaterialMetal
    Holding Force (kg)1001kg To 2000kg
    Side Load Force (kg)Up To 100kg
    EAN code7391166240571
    SKU code50215006957
    Range NameASSA ABLOY - El Mech
    TypeWireless
    FunctionNon-Configurable
