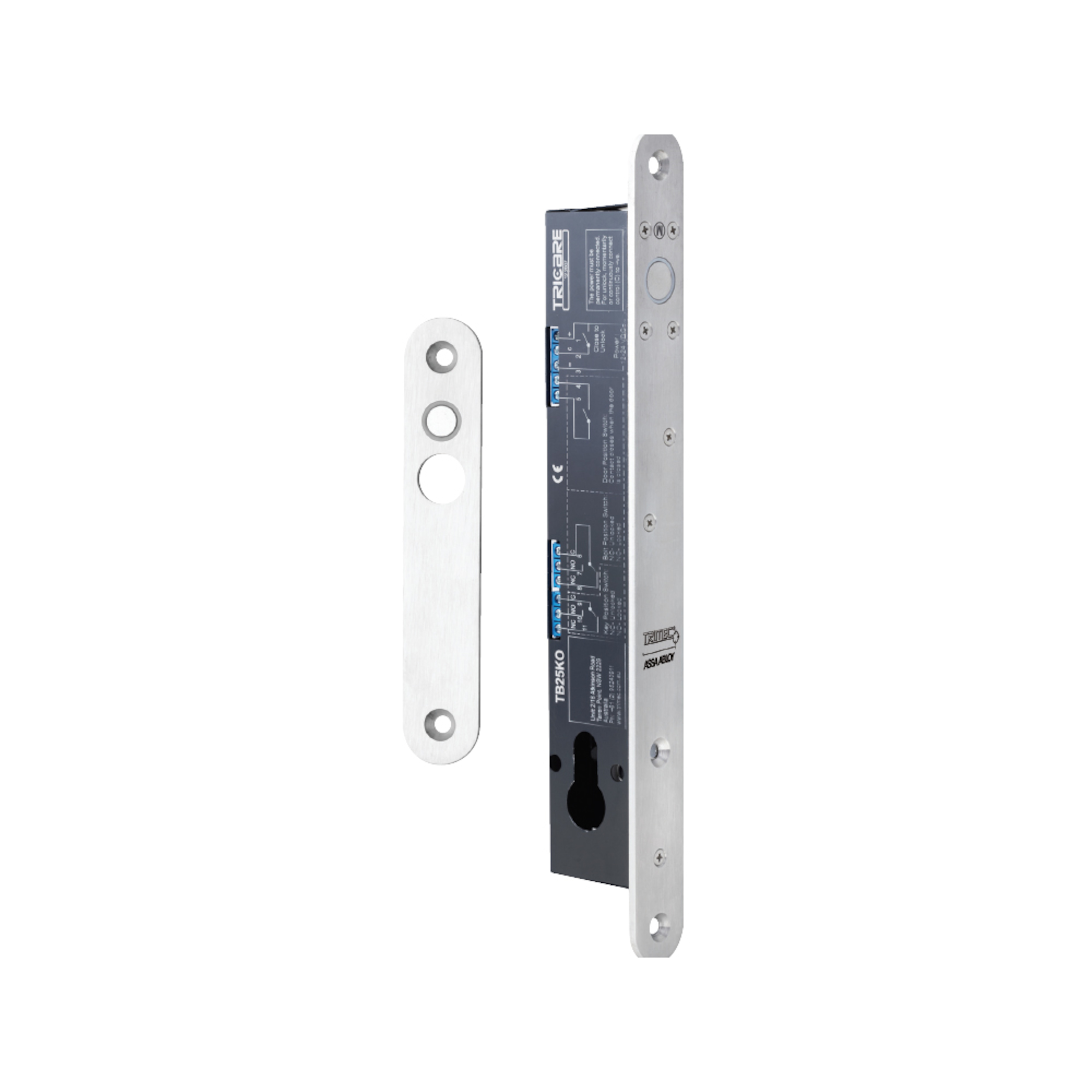

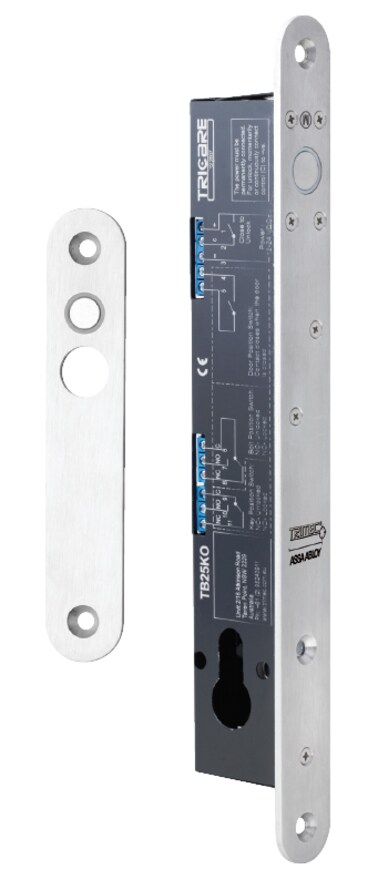

    TB25KO fail-secure dropbolt with square strike hole

    The TB25KO high quality, high security drop bolt which includes a unique mechanical override in the event of power failure. Ideal for use on swing-through and double action doors, where an electric strike is impractical. Multiple orientation, drop bolts will work horizontally or vertically. Designed to be tamper proof and can’t be defeated by slipping a metal object between lock and strike plate.

    1 of 2

    Unique mechanical override within integrated Euro profile cylinders for power to open applications,if power failure occurs

    Continuously rated solenoid

    Bolt and door position monitored with integrated magnet into the strike plate which removes the need to install a separate reed switch

    Intelligent electronics attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position

    Tested to 1,000,000 cycles

    Monitoring: Bolt, door and key

    Voltage tolerance: 12 to 24V DC

    Solenoid: Rated for Continuous use

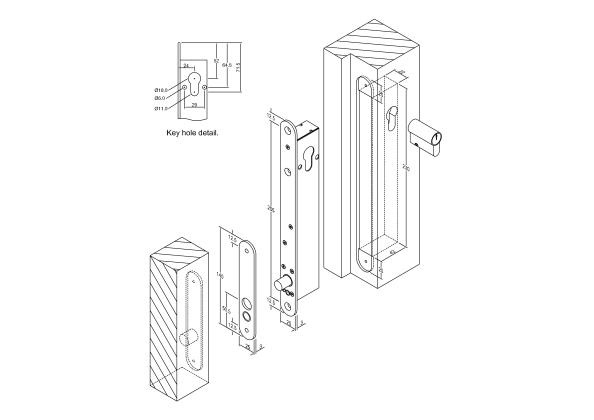

    • Dimensional Drawings (for Webshop/AEM/Priint) S3
    NameValue
    SKU188252-510
    DutyFail Secure
    BrandTrimec
    WiresYes
    FinishStainless Steel
    WarrantyNo
    FaceplateFlat
    Fire RatedNo
    PIR SensorNo
    Finish TypeStainless Steel
    Strike HoleSquare
    Holding force (kg)1000
    Case Dimensions227 X 22 X 33
    Mounting MethodConcealed
    Extended Lip TypeNo Lip
    Door Leaf MaterialAluminium
    Electric Locking TypesWired
    Rated Operational Voltage Tolerance12-24v DC
    EAN code9311847989122
    StandardsEN 58001-1:1992
    Range NameTrimec
    Current DrawStart: 1100mA @ 12Vdc – 1000A @ 24Vdc
    Function12v/24v
    Electric Locking Function12v/24v
