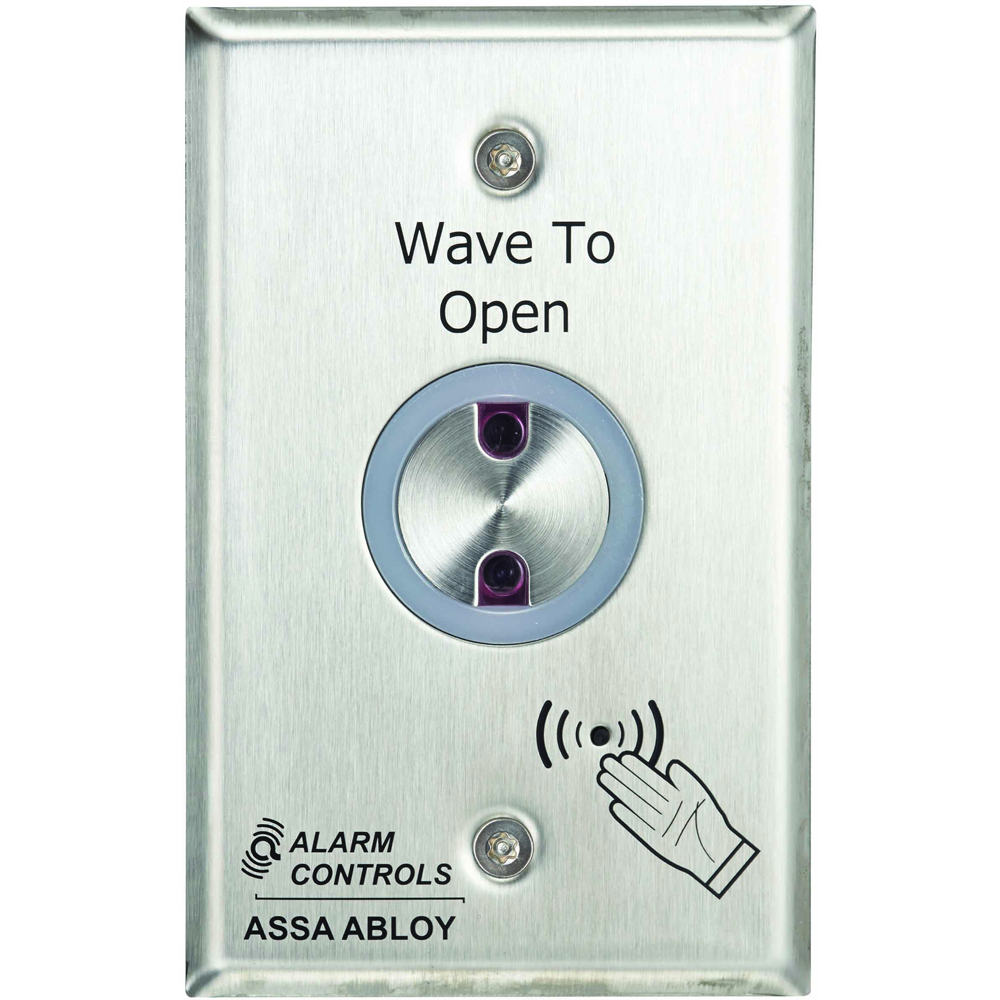

    Nts-3 Non Touch Switch Narrow Stile Wall Plate 114 X 44.5mm

    Allows hands free activation designed to reduce the risk of contamination for sensitive applications including bathrooms, hospitals, labs, schools, and offices. Stainless steel with vandal resistant face plate. Features sensor detection range up to 4”. Bi-colour Halo LED status indicates active status. Plate printed ‘Wave to Open’. Time delay can be set for 1 to 35 seconds, ideal if other products are timed.

    1 of 2

    Stainless steel with vandal resistant face plate

    Sensor detection range up to 4”

    Bi-colour Halo LED status indicates active status

    Plate printed ‘Wave to Open’

    Time delay can be set for 1 to 35 seconds, ideal if other products are timed

    Voltage tolerance: 12 or 24v DC

    NameValue
    SKUNTS-3
    BrandASSA ABLOY ELMECH
    StyleNarrow
    WiresYes
    FinishStainless Steel
    FunctionAccessory
    WarrantyLifetime
    Fire RatedNo
    MonitoringNo
    PIR SensorNo
    Finish TypeStainless Steel
    Mounting MethodSurface Mounted
    Operating Temperature-25 To +55
    Rated Operational Voltage Tolerance12 Or 24v DC
    EAN code0604840001359
    StandardsCE, UKCA
    Range NameAssa Abloy - El Mech
    Current DrawSPDT Relay Rated 2A At 30 VDC/VAC
    TypeWired
    Function12v/24v
