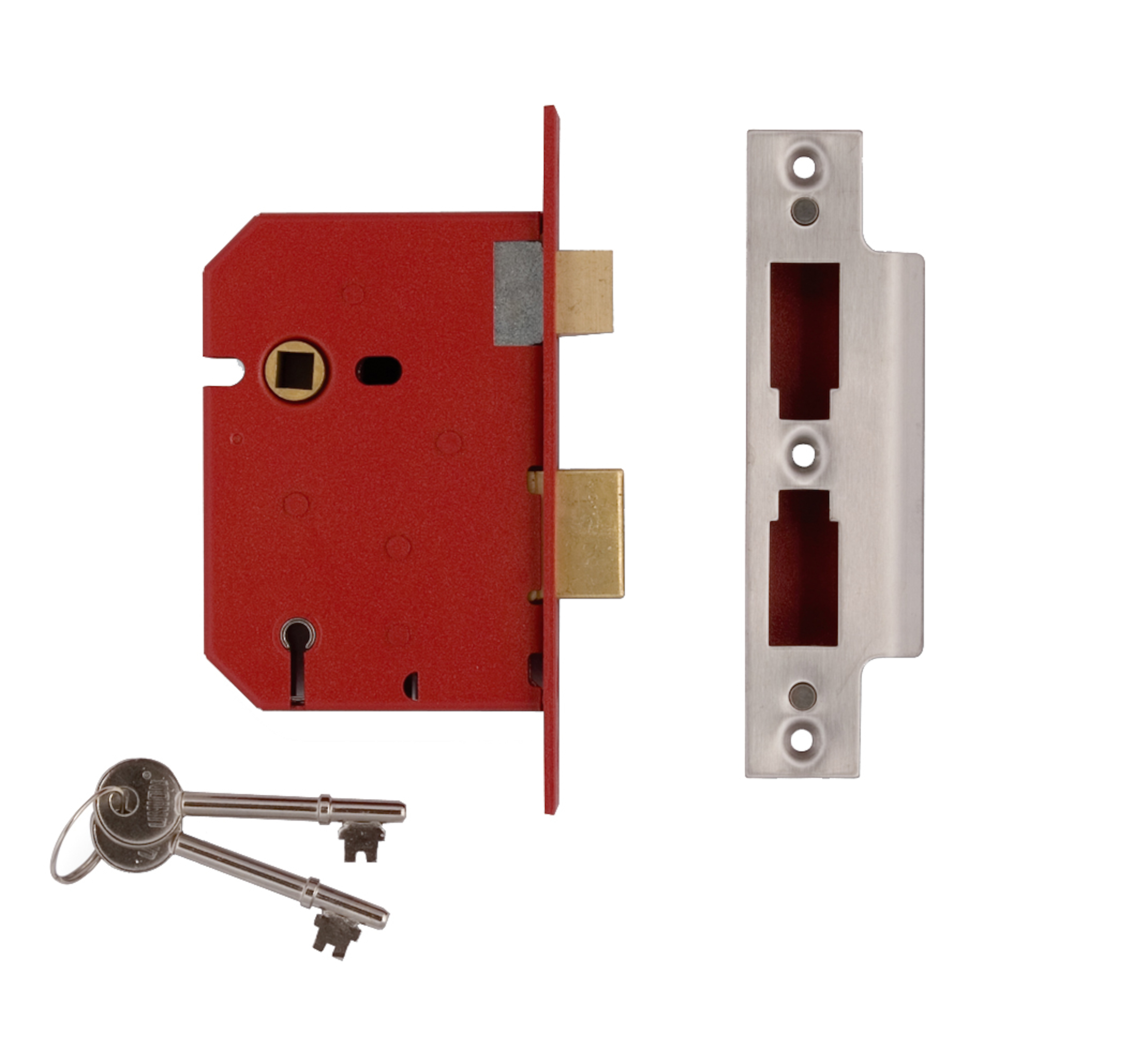

    UNION 2201 5 Lever Sashlock

    Our UNION 2201 5 lever sashlock is designed for timber doors, hinged on the left or right. Designed to suit doors up to 54mm thick. Deadbolt locked or unlocked by key from either side.

    1 of 2

    Deadbolt locked or unlocked by key from either side of the door

    Latch bolt withdrawn by lever handle from either side

    Pierced to accept bolt through furniture

    Security box striking plate

    Easily reversible latch bolt from outside of case

    • Datasheet

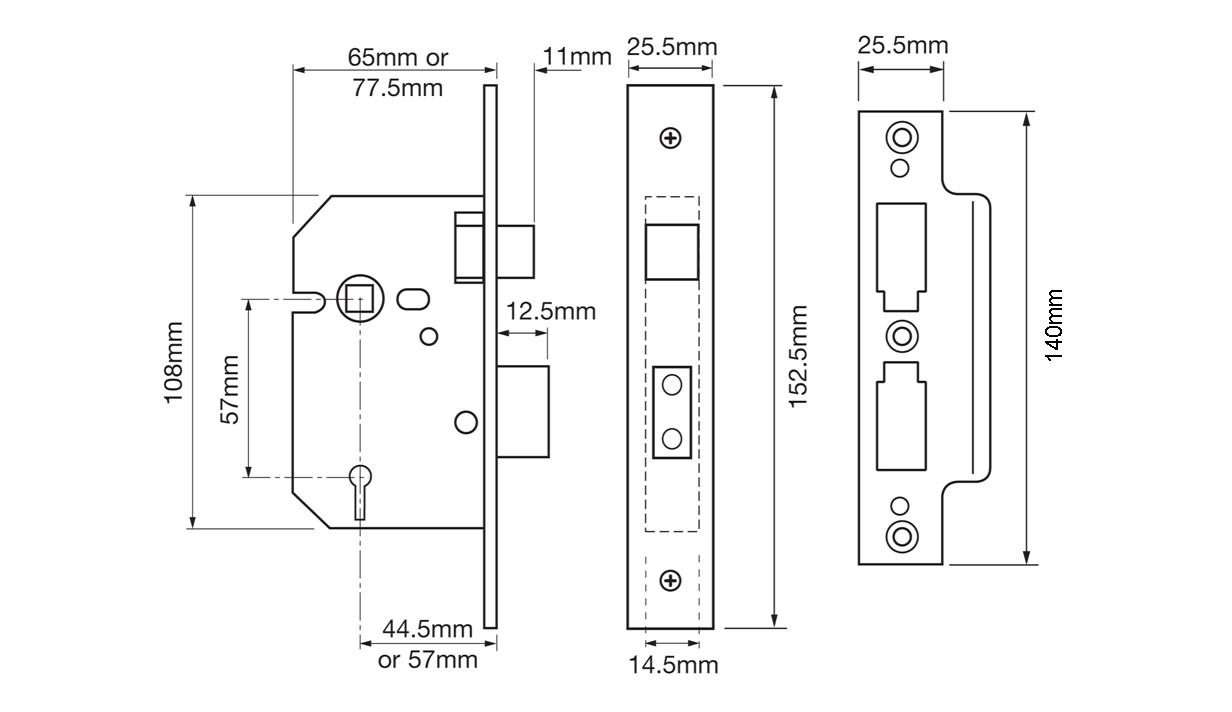

    • Dimensional Drawings
    • DoP
    NameValue
    StyleMortice
    Centres (mm)57
    FunctionSashlock
    Pack Qty1
    Qty of Keys2
    Warranty10 Years
    FaceplateFlat
    Fire RatedYes
    MonitoringNo
    Door OpeningInwards & Outwards
    Forend StyleSquare / Flat
    Keys IncludedYes
    Micro SwitchedNo
    Follower Distance (mm)8
    Fire Door ApprovalYes
    Max Door Thickness (mm)54
    StandardsCE, EN 12209, EN 1634-1
    Fire Rated MetalNo
    Fire Rated TimberFD30, FD60
    TypeMortice
    FunctionSashlock
    ProductProduct IDAttributes
    UNION 2201 5 Lever SashlockJ2201-PL-2.50
    Finish: Polished Brass
    Backset (mm): 44.5
    Package Type: Boxed
    UNION 2201 5 Lever SashlockJ2201-PL-3.00
    Finish: Polished Brass
    Backset (mm): 57
    Package Type: Boxed
    UNION 2201 5 Lever SashlockJ2201-SC-2.50
    Finish: Satin Chrome
    Backset (mm): 44.5
    Package Type: Boxed
    UNION 2201 5 Lever SashlockJ2201-SC-3.00
    Finish: Satin Chrome
    Backset (mm): 57
    Package Type: Boxed
    UNION 2201 5 Lever SashlockY2201-PL-2.50
    Finish: Polished Brass
    Backset (mm): 44.5
    Package Type: Clam Packed
    UNION 2201 5 Lever SashlockY2201-PL-3.00
    Finish: Polished Brass
    Backset (mm): 57
    Package Type: Clam Packed
    UNION 2201 5 Lever SashlockY2201-SC-2.50
    Finish: Satin Chrome
    Backset (mm): 44.5
    Package Type: Clam Packed
    UNION 2201 5 Lever SashlockY2201-SC-3.00
    Finish: Satin Chrome
    Backset (mm): 57
    Package Type: Clam Packed
