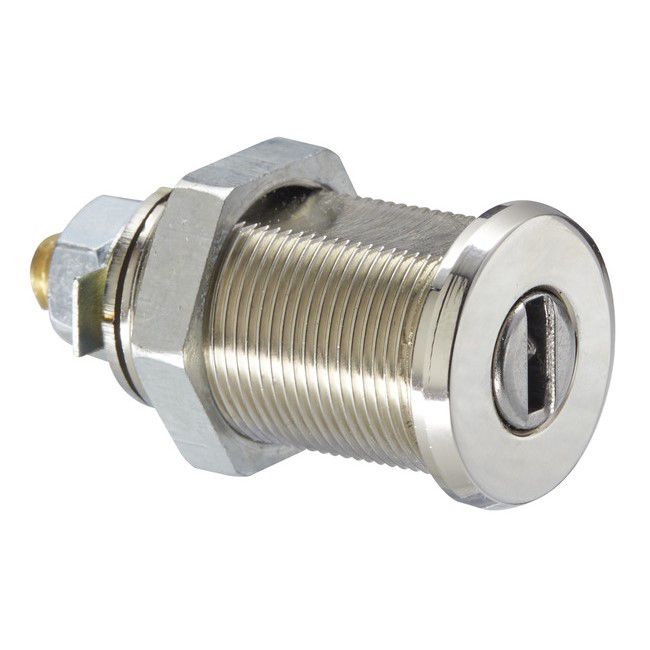

Locking lever cylinder CLIQ® Go NT01,SERVICE=CLIQGo

19 mm Diameter, laterally flattened to 16 mm - without key, without locking lever

Product description

  • Ideal for application in letter boxes, lockers and metal cabinets with cylinder lever locks
  • Available as rotary secured or electronical version (V=)

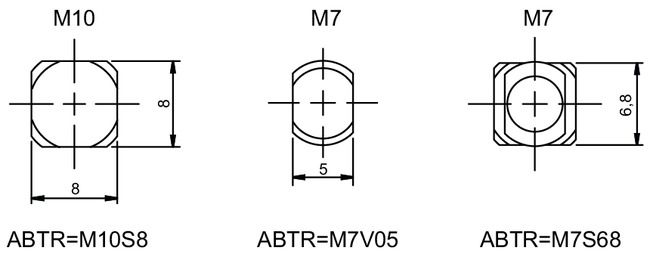

  • Standard with core output for mounting of locking levers (ABTR=M10S8)
  • Optionally available with additional core outputs (ABTR=)
  • Brass cylinder housing components
  • Matt nickel-plated surface (OF = MV)

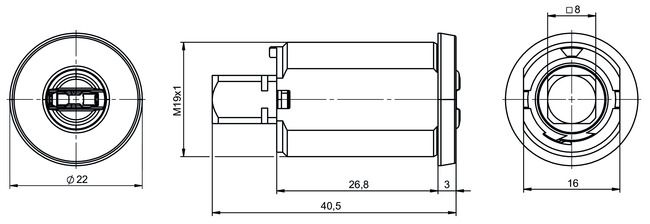

  • Fixing with M19 x 1 x 5 housing nut
  • Standard locking path and locking lever path 90º left or right (AUS=0) Key withdrawal at 0° and 180°
  • Optionally locking path and locking lever path 180º left or right (AUS=180) Key withdrawal at 0° and 180°
  • Maintenance-free for up to 200,000 cycles

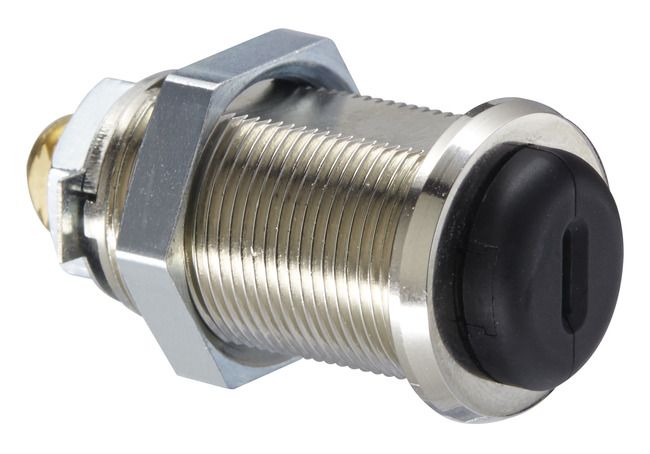

  • Dust and rain cover available (SUR=1) IP55

Scope of delivery

  • 1 locking lever cylinder - without locking lever
  • 1 housing nut M19 x 1 x 5
  • 1 core nut, M7 x 1 (for core output M7V05 and M7S6,) or M10 x 1 (for core output M10S8)

Note

  • Please order locking levers and other additional parts separately - Part No. NTS1
