    ASSA ABLOY DL6211S (formerly Crawford) Swingdock 100

    • Distribution and logistics
    • ASSA ABLOY

    Heavy-duty swing lip dock leveller built to handle tough loads and tough environments.

    The ASSA ABLOY DL6211S Swingdock 100 is a heavy-duty dock leveller with a 100 kN load capacity. It’s built from high-grade S355 steel for long-lasting performance - and fewer parts mean fewer breakdowns, easier servicing, and lower operational costs.



    Downloads

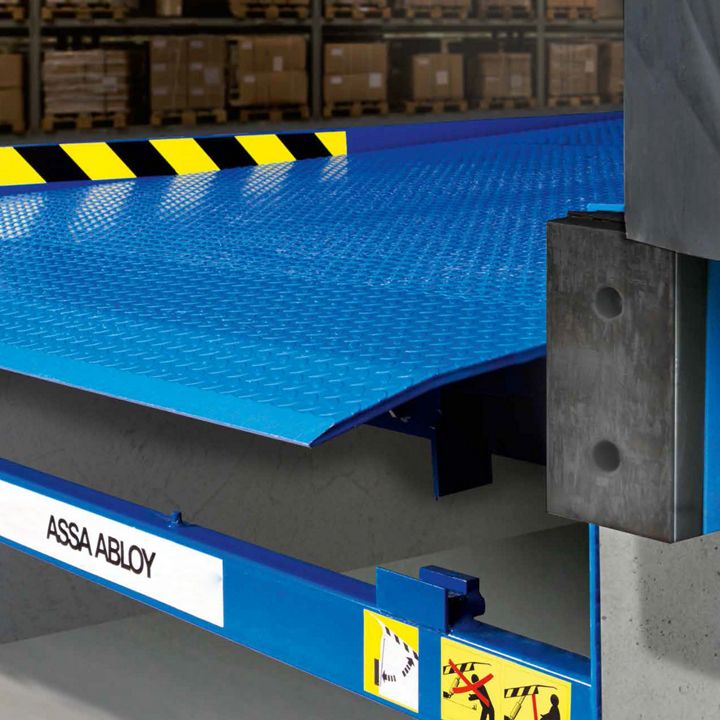

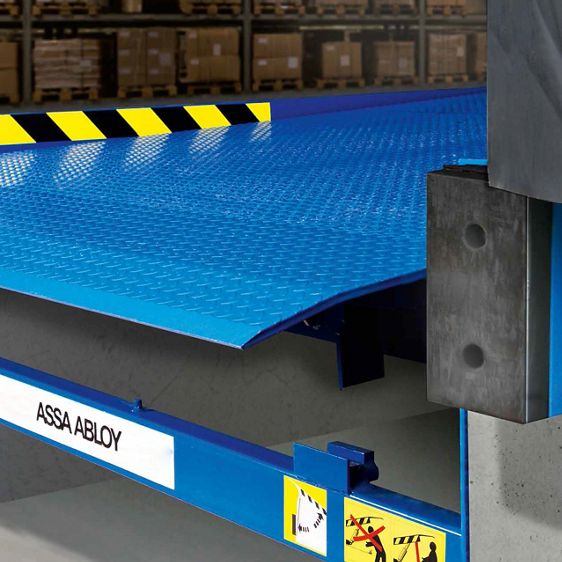

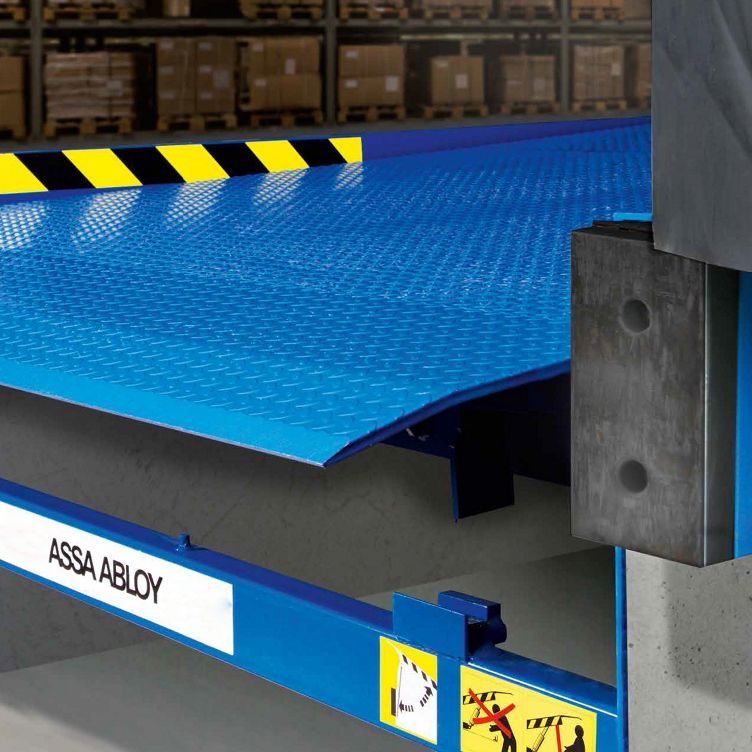

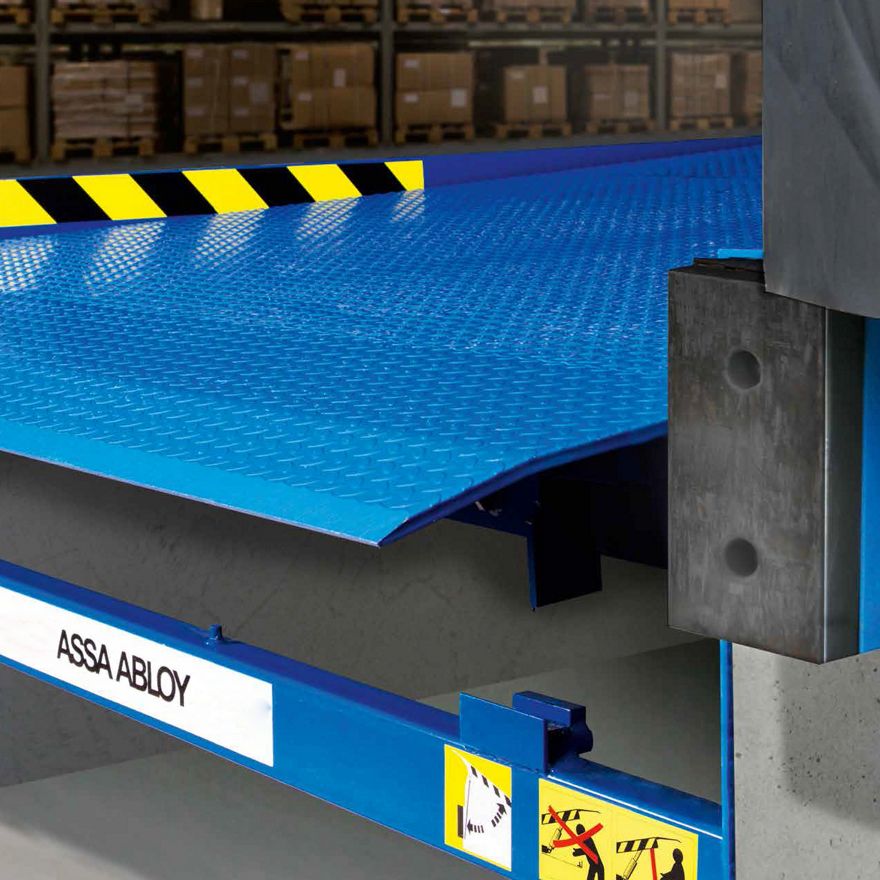

    ASSA ABLOY DL6211S hydraulic swing-lip dock leveller
    ASSA ABLOY DL6211S hydraulic swing-lip dock leveller

    1 of 2

    ASSA ABLOY DL6211S Swingdock 100

    • Product ID: DL6211S
    • Normal length: 2000, 2500, 3000 mm (other sizes on request)
    • Normal width: 2000, 2200 mm
    • Load capacity; 100 kN (10 tonnes)
    • Vertical working range; Rise above dock up to 270 mm, Fall below dock down to 270 mm
    • Platform tear-plate thickness: 8 mm S355 (8/10 mm)
    • Lip material & length: Steel, 400 mm
    • Control unit protection class: IP 54
    • Nominal voltage: 400V 3-phase, 230V 3-phase
    • Nominal motor power: 1,5 kW
    • Temperature range hydraulic oil: -15°C - +60°C
    • European standard: EN1398 dock levellers
