CLIQ Outdoor Reader

Trusted CLIQ control for a variety of third-party outdoor devices

CLIQ Readers simplify the secure management of access for a variety of openings and switch operations. They can be fully integrated into the existing CLIQ system and are compatible with all CLIQ user keys.

The Reader verifies the status of the inserted key and, if authorization is valid, switches the potential‑free contact. An inbuilt white LED displays the Reader’s status. The acoustic and visual authorisation signals are displayed directly on the key. Access rights are programmed via the CLIQ Web Manager, CLIQ Local Manager, or CLIQ Go software.

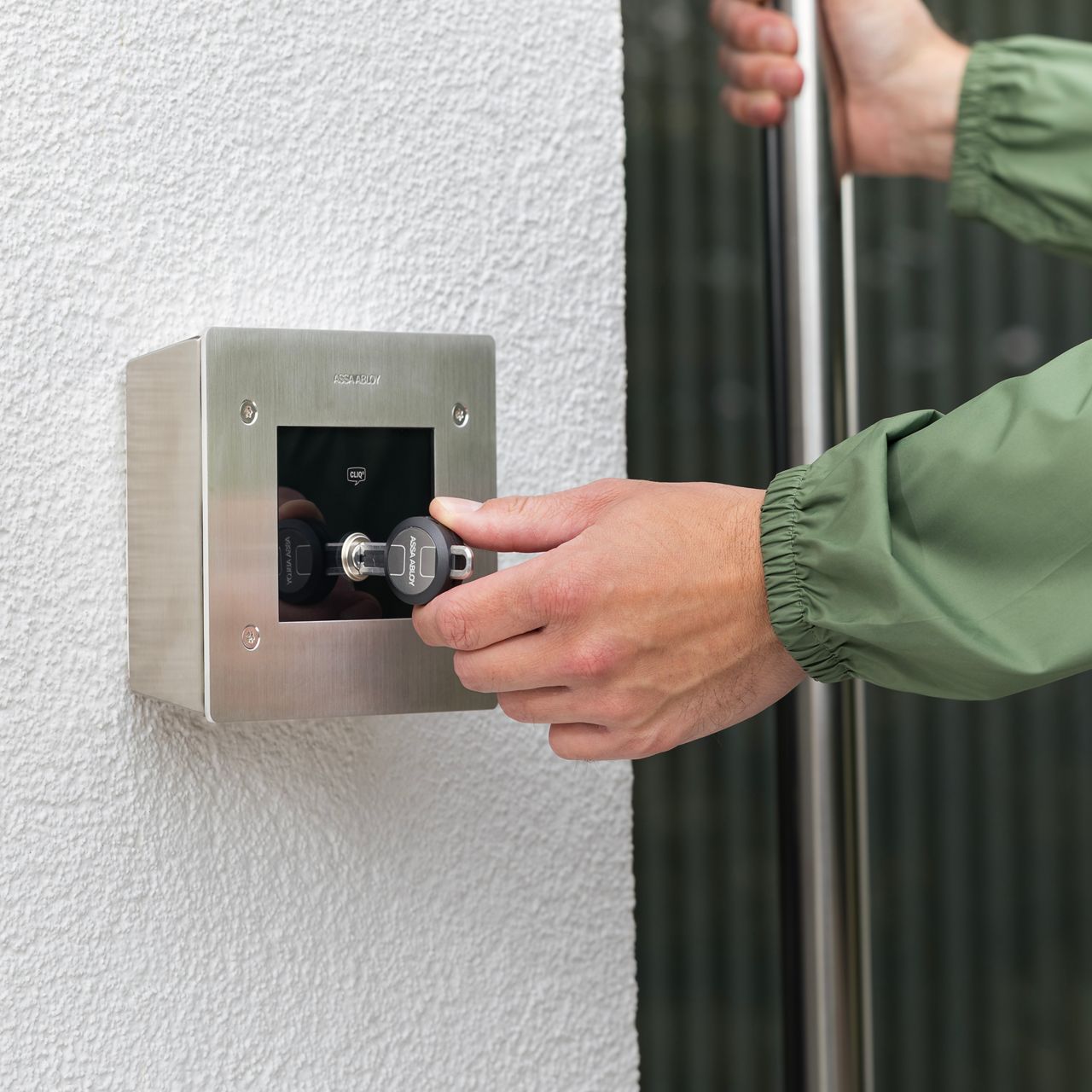

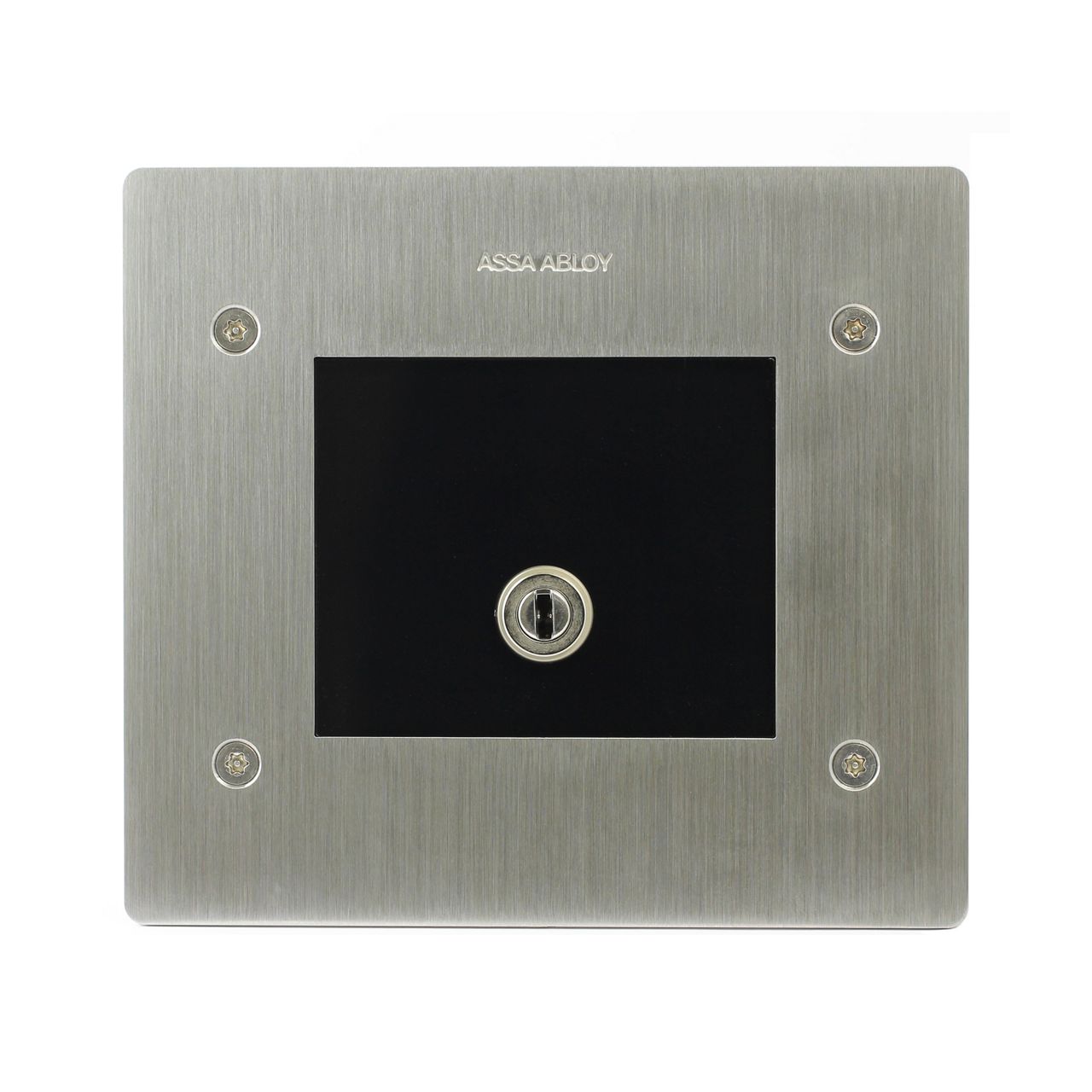

The CLIQ Outdoor Reader comes in a robust stainless-steel housing with protection against weather, dust and vandalism. It is also available in an indoor version that can be easily integrated into light switches.

Where to deploy a CLIQ Outdoor Reader

Doors with electric strikes or motorized locks
Automatic revolving doors or sliding glass doors
Barriers, gates, and other entrances

Technical data and features

Housing material / colour: Stainless steel

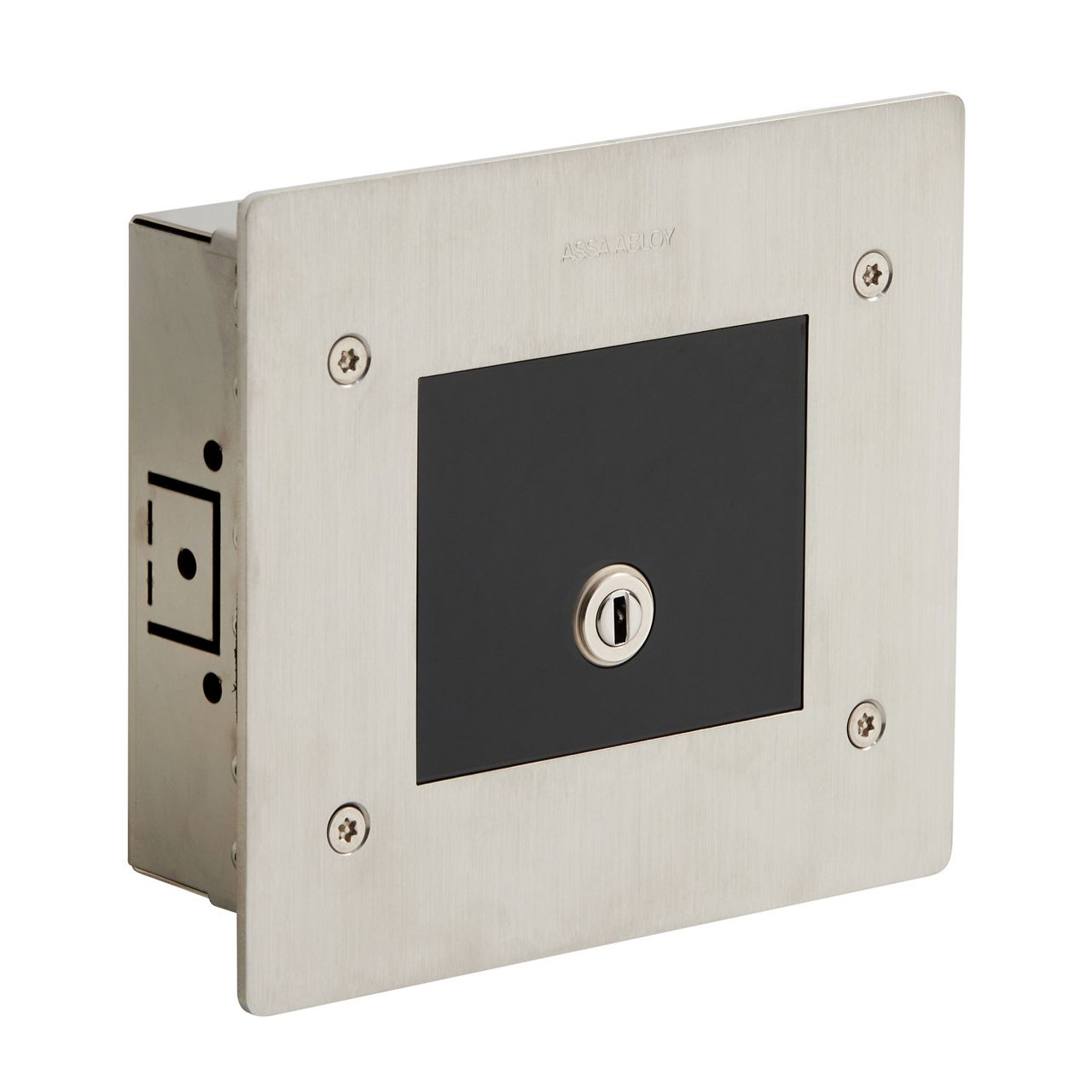

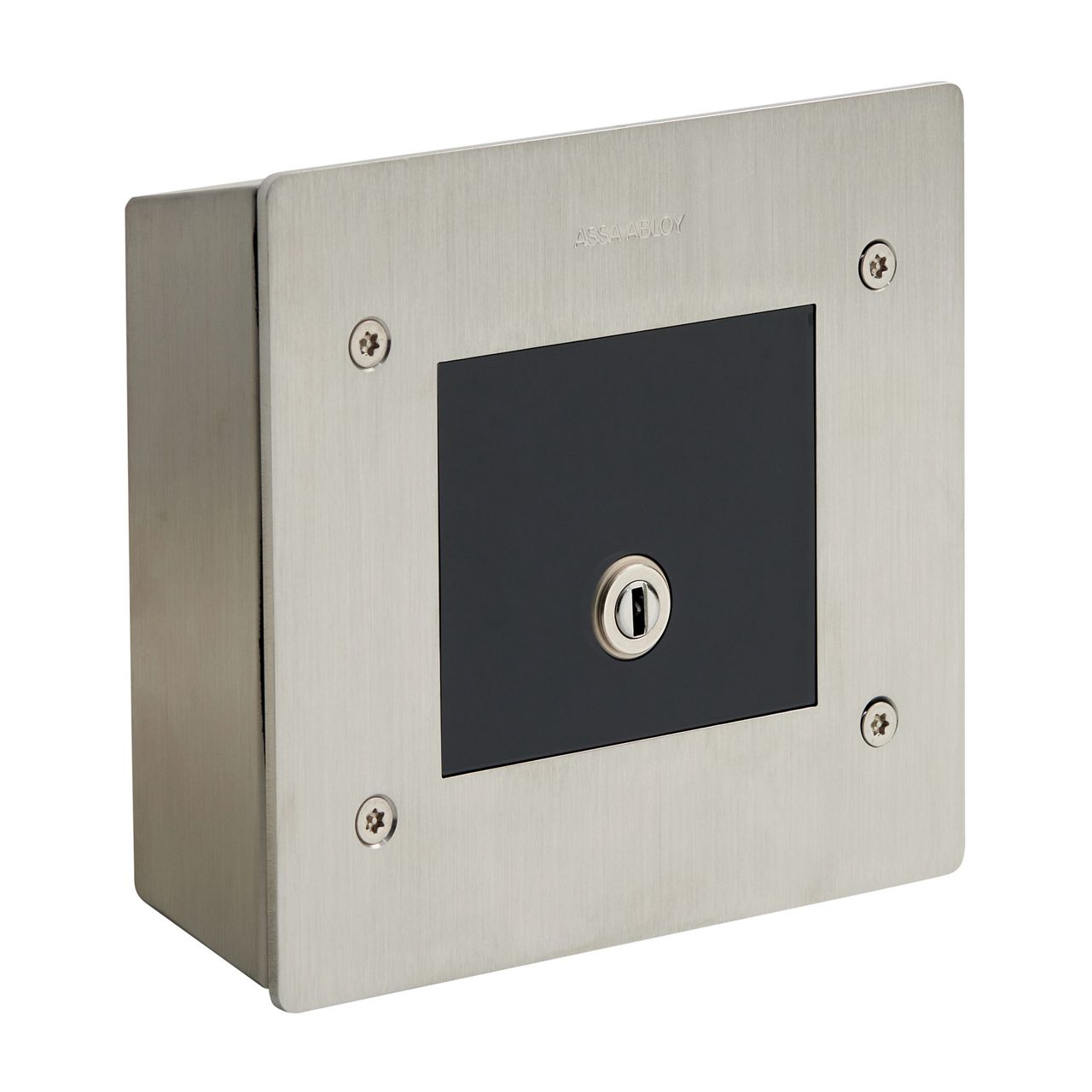

Mounting options: Surface mounting; Flush mounting; Integrated into intercoms or panels

Dimensions (W x H x D): Surface-mounted: 156 x 140 x 52 mm; Flush-mounted: installation dimension 135 x 121 x 45 mm, front plate 156 x 140 x 7 mm

Key adapter: Product-specific (eCLIQ / PROTEC2 CLIQ)

Connection: Offline

Interfaces: Free output: 1 A at 12 V AC or 24 V DC; Adjustable switch time (approx. 1 – 10 s) with optional activation on key insertion or removal

Indicators: Operation indicator: White LED on the display; Authorization status: Visual and acoustic signal in the key

Data storage: Yes

Security: Contact-based data transmission; Secure element on separate PCB (remote relay unit), max. distance 2 m

Encryption: AES / 3DES

Power: 12 V DC to 24 V DC ± 10 %; Current consumption at 12 V DC 0.1 A

Operating temperature range: –25 °C to +60 °C

Relative humidity: < 99 % (non-condensing)

Ingress protection: IP65

Impact protection: IK09

Certification: CE
