CLIQ Indoor Reader
Trusted CLIQ control for a variety of third-party indoor devices
CLIQ Readers simplify the secure management of access for a variety of openings and switch operations. They can be fully integrated into the existing CLIQ system and are compatible with all CLIQ user keys.

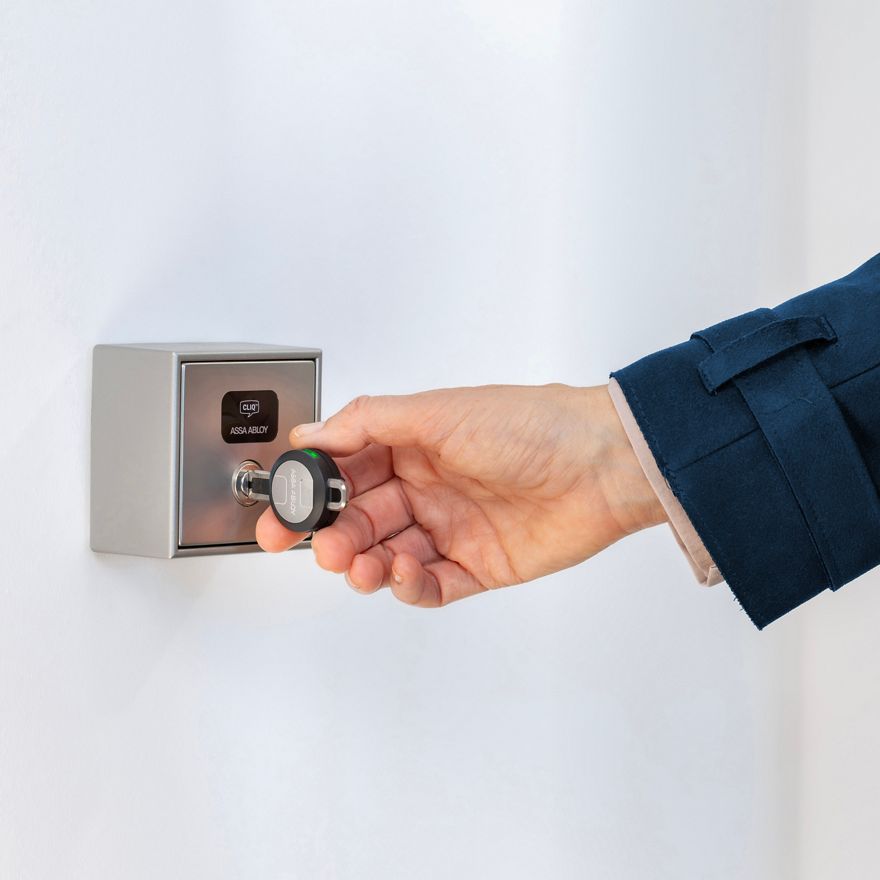

The Reader verifies the status of the inserted key and, if authorization is valid, switches the potential‑free contact. An inbuilt white LED displays the Reader’s status. The acoustic and visual authorisation signals are displayed directly on the key. Access rights are programmed via the CLIQ Web Manager, CLIQ Local Manager, or CLIQ Go software.
The CLIQ Reader is also available in an outdoor version that is equipped with a robust stainless-steel housing, protected against weather, dust and vandalism.
Where to deploy a CLIQ Indoor Reader
- Doors with electric strikes or motorized locks
- Automatic revolving doors or sliding glass doors

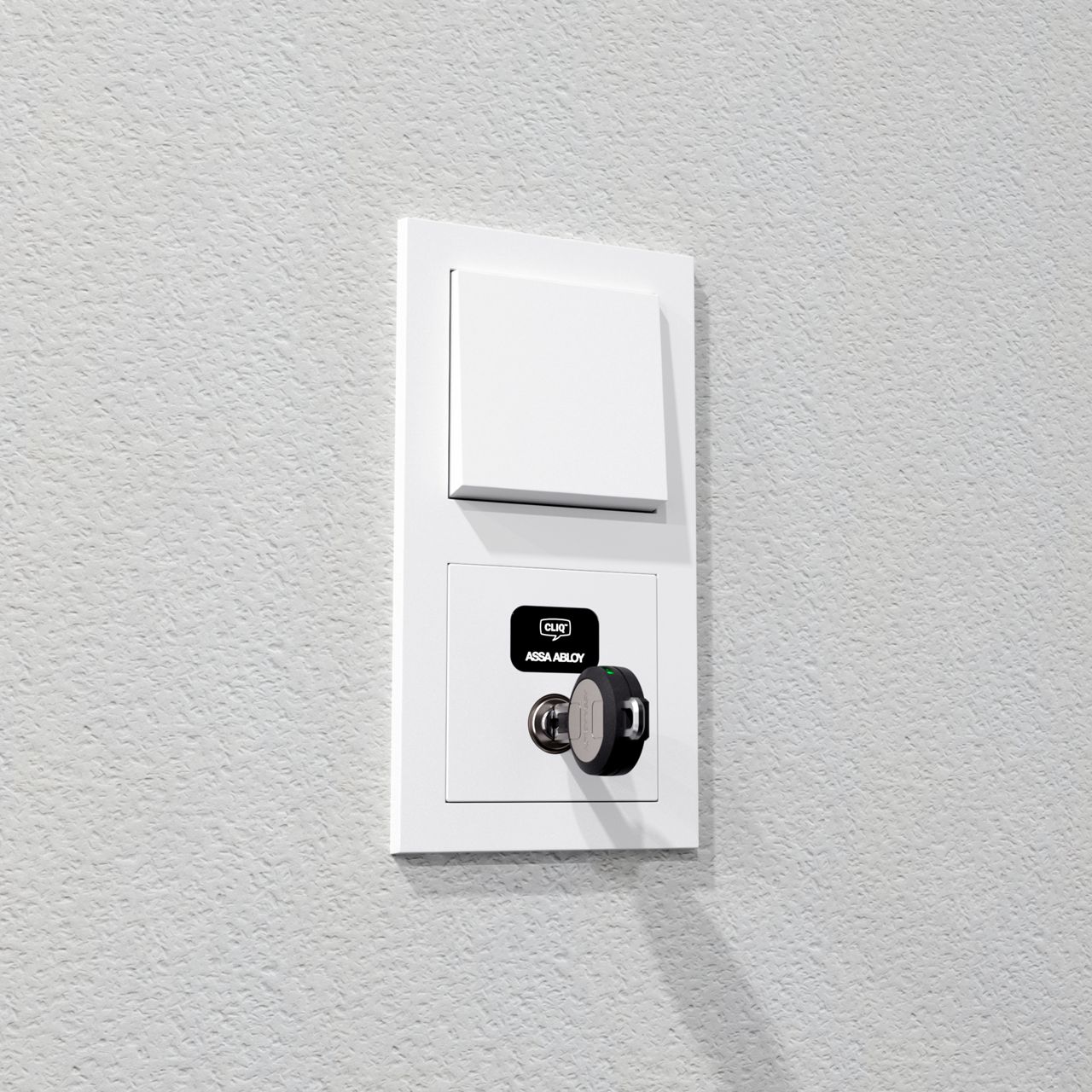

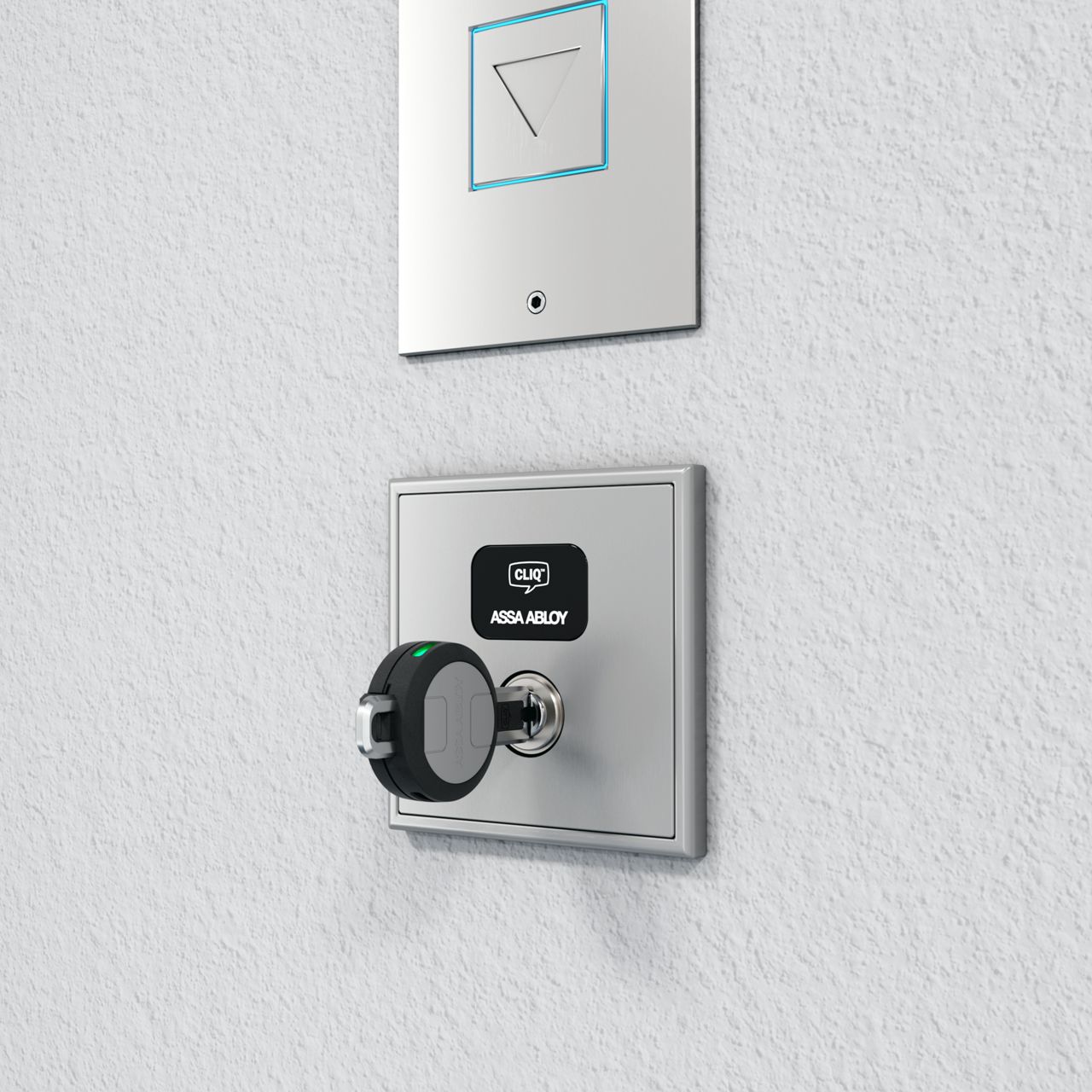

- Switches for light control, lift priority and more
Technical data and features

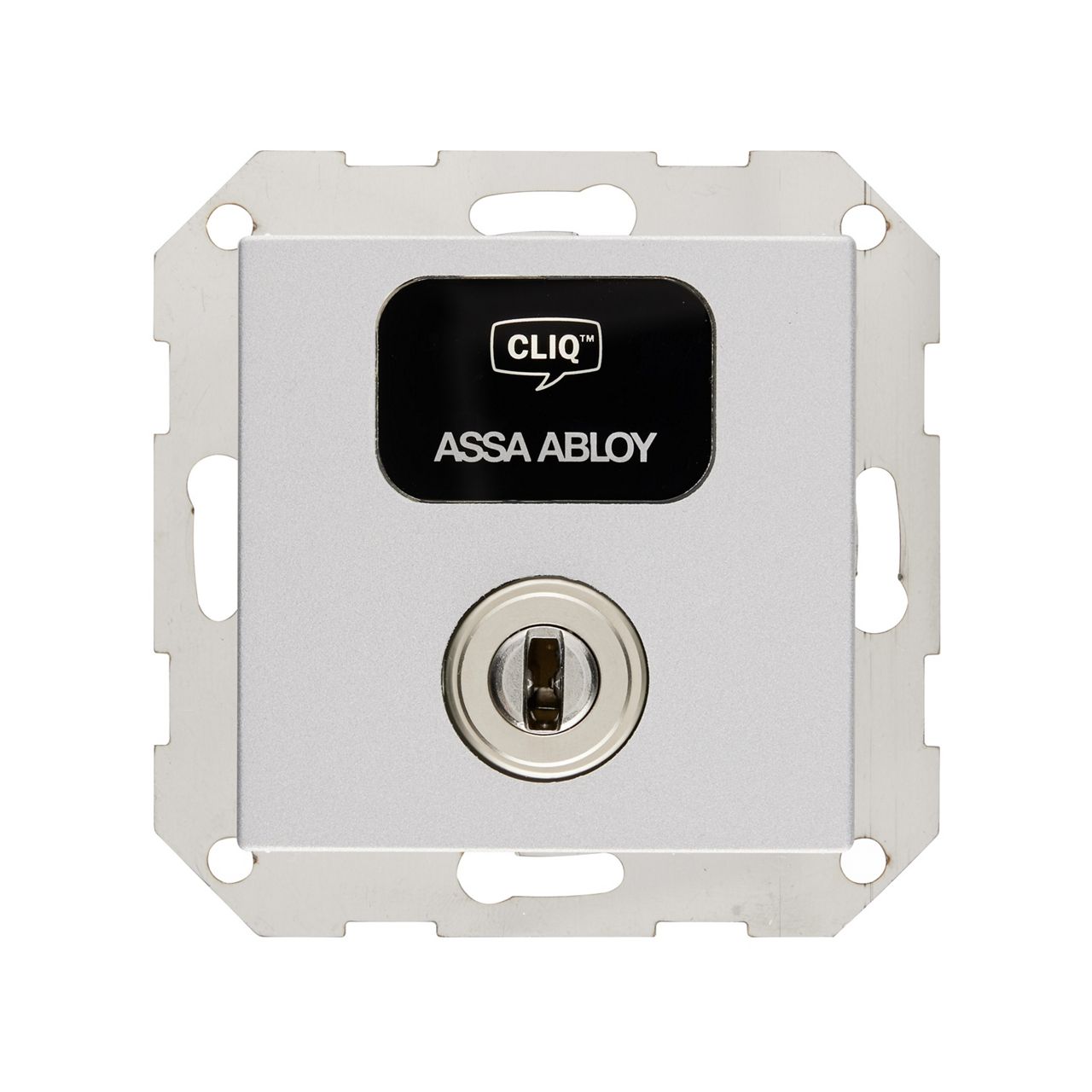

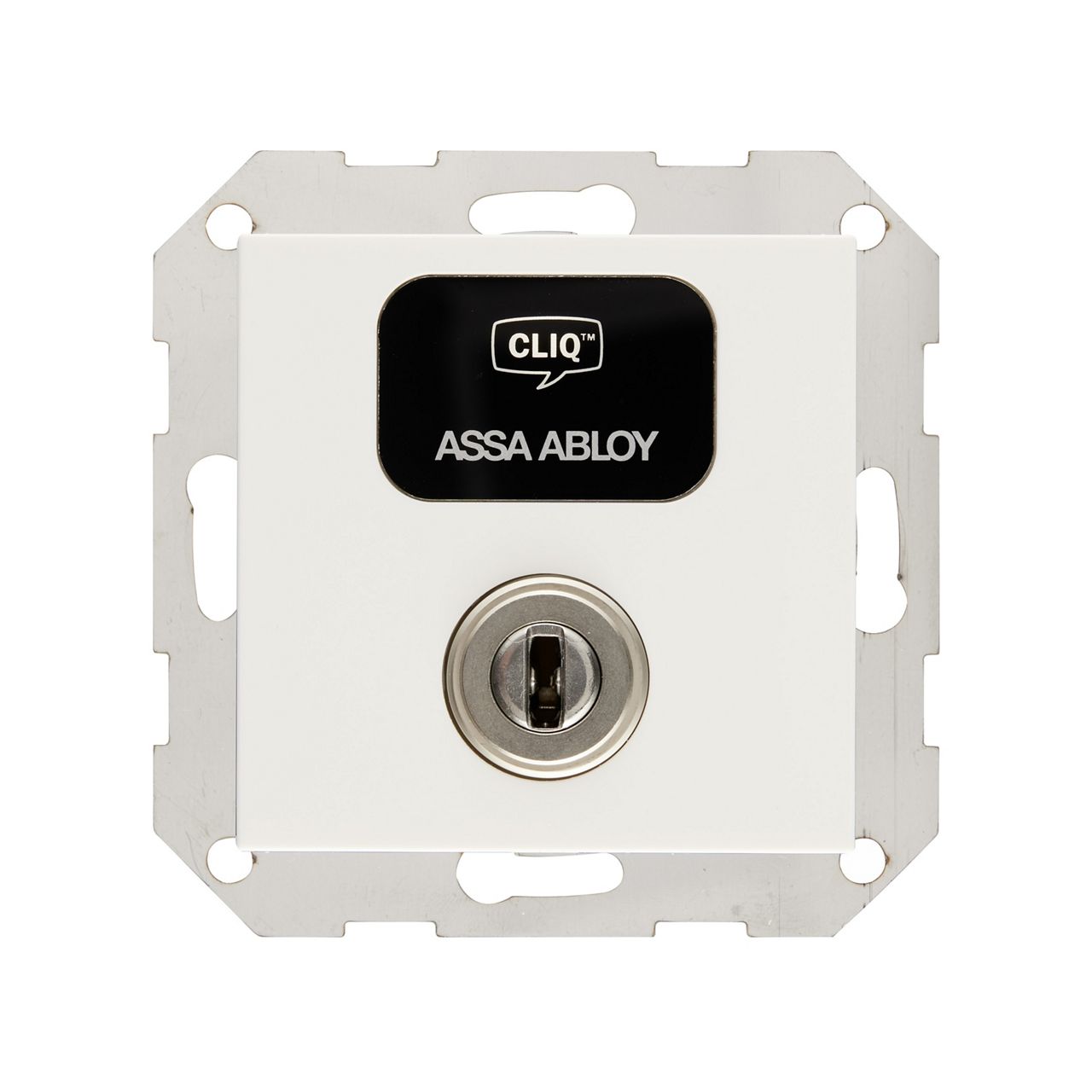

Housing material / colour: JUNG Stainless Steel; JUNG Alpine White; GIRA Alu; GIRA Pure White (frame / flush-mounted box not included in the scope of delivery)
Mounting options: Frame or flush-mounted box (optional)
Dimensions (W x H x D): 71 x 71 x 45 mm (minimum depth for flush-mounted box 60 mm)
Key adapter: Product-specific (eCLIQ / PROTEC2 CLIQ)
Connection: Offline
Interfaces: Free output: 1 A at 12 V AC or 24 V DC; Adjustable switch time (approx. 1 – 10 s) with optional activation on key insertion or removal
Indicators: Operation indicator: White LED on the display; Authorization status: Visual and acoustic signal in the key
Data storage: Yes
Security: Contact-based data transmission; Optional: secure element on separate PCB (remote relay unit), max. distance 2 m
Encryption: AES / 3DES
Power: 12 V DC to 24 V DC ± 10 %; Current consumption at 12 V DC 0.1 A
Operating temperature range: –25 °C to +60 °C
Relative humidity: < 99 % (non-condensing)
Ingress protection: Indoor use only
Impact protection: No
Certification: CE
CLIQ Indoor Reader frame-mounted
1 of 7
Key benefits of the CLIQ Indoor Reader
Convenient
Key only needs to be inserted, not turned, minimizing wear-and-tear
Secure
Optional remote relay unit adds a valuable extra layer of security
Flexible
Customizable switch delay, with optional activation on key insertion or removal
Versatile
Available in different colours and mounting options
