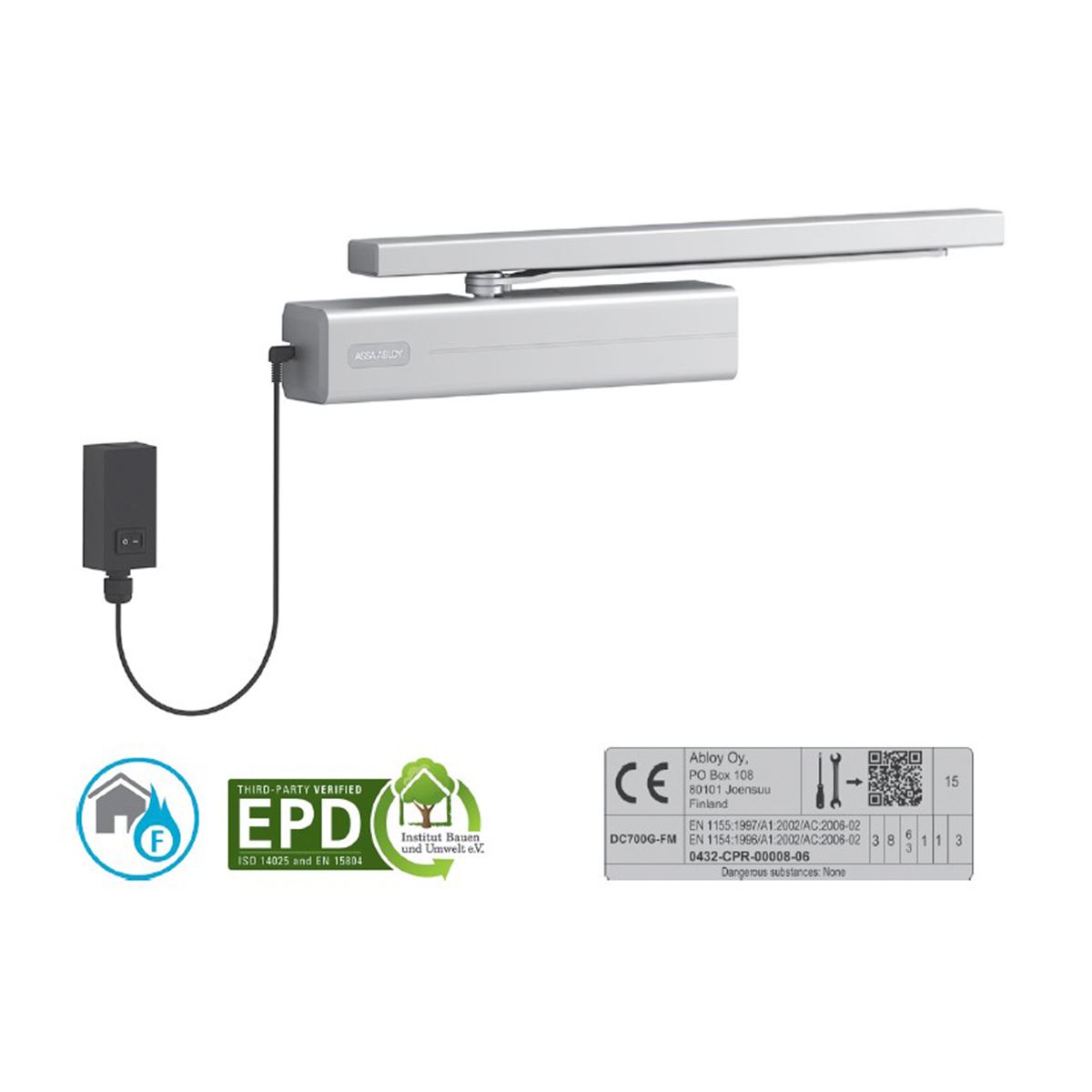

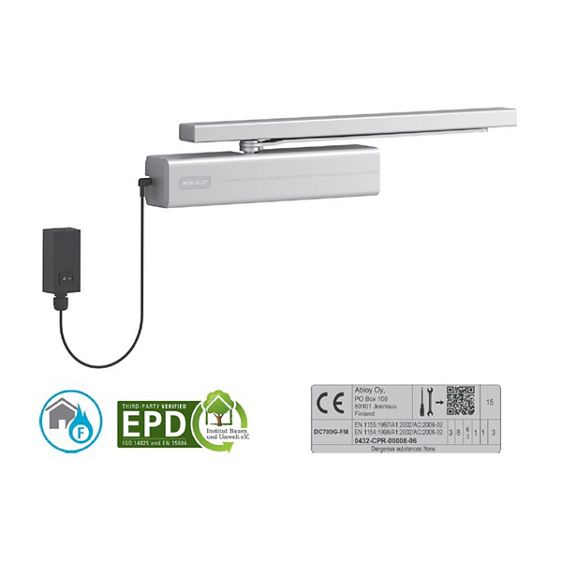

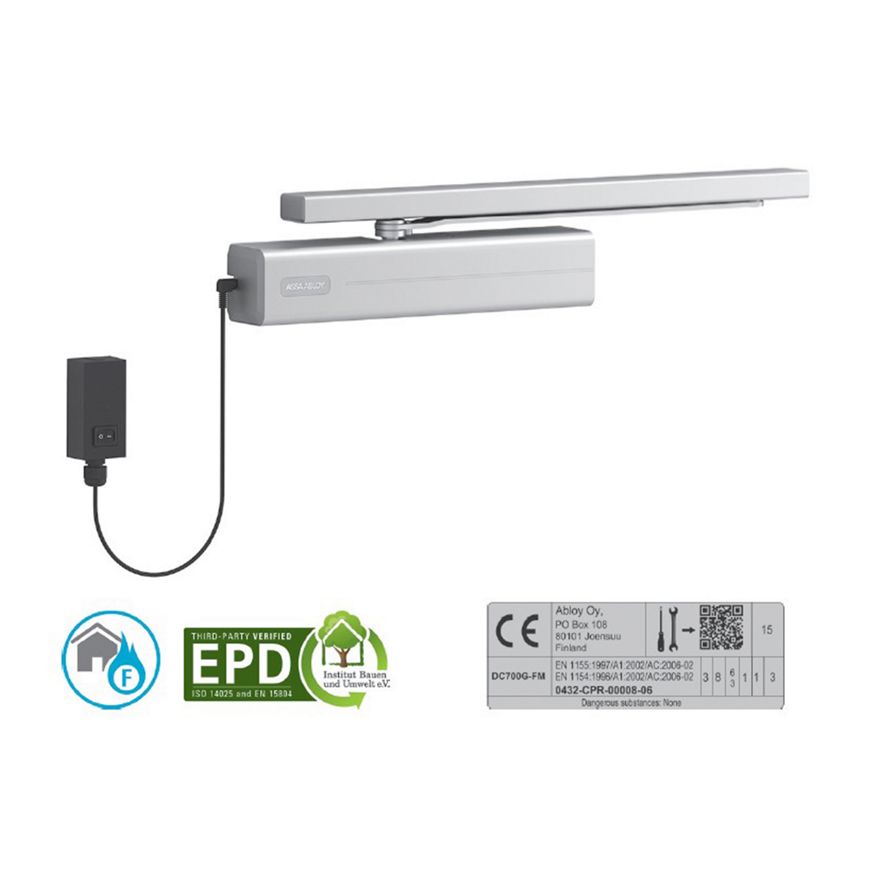

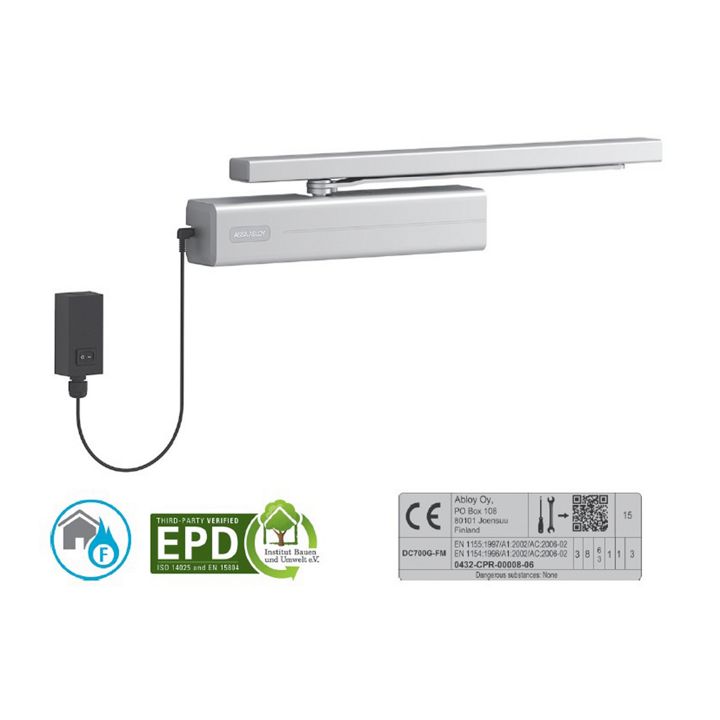

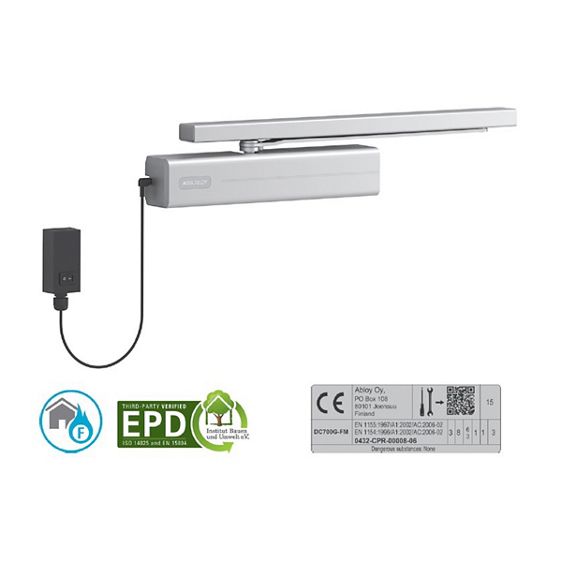

DC700G-FM

Variations

• ASSA ABLOY-DC700G-FM
• EN 3-6

Technical Attributes

• Free-Motion® door closer with free-swing function starting from a door opening angle 0°
• Certified in compliance with EN 1155/1154, size 3-6
• Easy, initial door opening due to the rapidly decreasing opening force. When active, the free-swing function enables permanent
• opening of the door without the resistance of the door closer
• Door remains in free-swing mode until power supply is switched-off
• For single action doors up to 1400mm wide
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Can be used for left and right-handed doors
• Suitable for fire and smoke protection doors
• Adjustable closing speed, latching speed and backcheck
• Variable adjustable closing force
• Opening angle up to 160°
• Hold-open variant available
• Hold-open angle 130°
