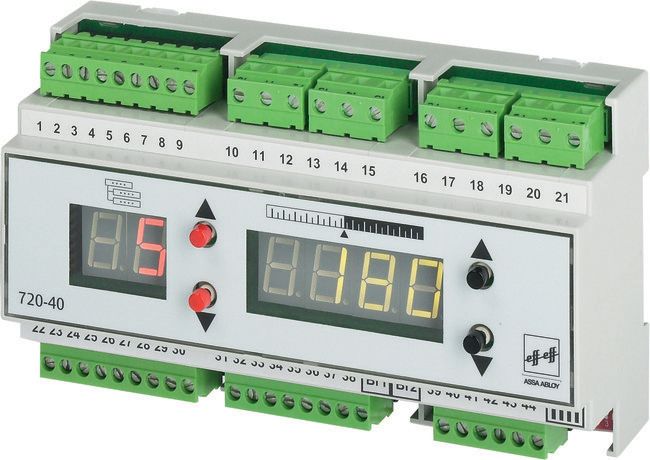

External control unit

To control electric locking systems in doors along escape routes; certified.

• Can be connected to door terminals and operating components
• Can be connected to locking components
• Adjustable time period for max. continuous release, delay in continuous release, temporary release, pre-alarm, alarm interval, guidance signal,
• Monitoring of time door is open during temporary release.
• With 4 inputs featuring adjustable parameters for:
• Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units.
• Temporary release using an access control system, or
• Emergency release via fire alarm system, or
• Priority locking via burglar alarm system, or
• Unlocking via timer and many other systems
• With 4 relay outputs featuring adjustable parameters for:
• Door locked/unlocked, or
• Door open/closed, or
• Collective alarm, or individual alarm,
• Activation of electric strike/motorized lock/door automatics/arrestor system.
• TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
• Connections: plug-in screw terminals
