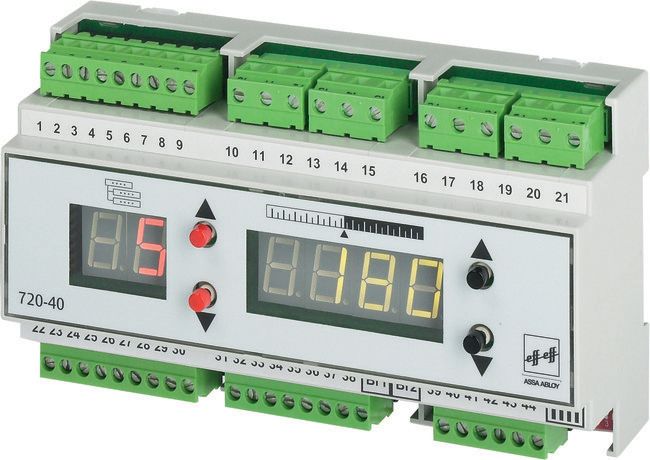

Escape Door Control Model 720-40

To control electric locking systems in doors along escape routes; certified.

Can be connected to door terminals and operating components
Can be connected to locking components
Adjustable time period for max. continuous release, delay in continuous release, temporary release, pre-alarm, alarm interval, guidance signal,
Monitoring of time door is open during temporary release.
With 4 inputs featuring adjustable parameters for:
Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units.
Temporary release using an access control system, or
Emergency release via fire alarm system, or
Priority locking via burglar alarm system, or
Unlocking via timer and many other systems
With 4 relay outputs featuring adjustable parameters for:
Door locked/unlocked, or
Door open/closed, or
Collective alarm, or individual alarm,
Activation of electric strike/motorized lock/door automatics/arrestor system.
TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server
Connections: plug-in screw terminals
