DC340

For Single leaf doors up to size EN6 (1400 mm)

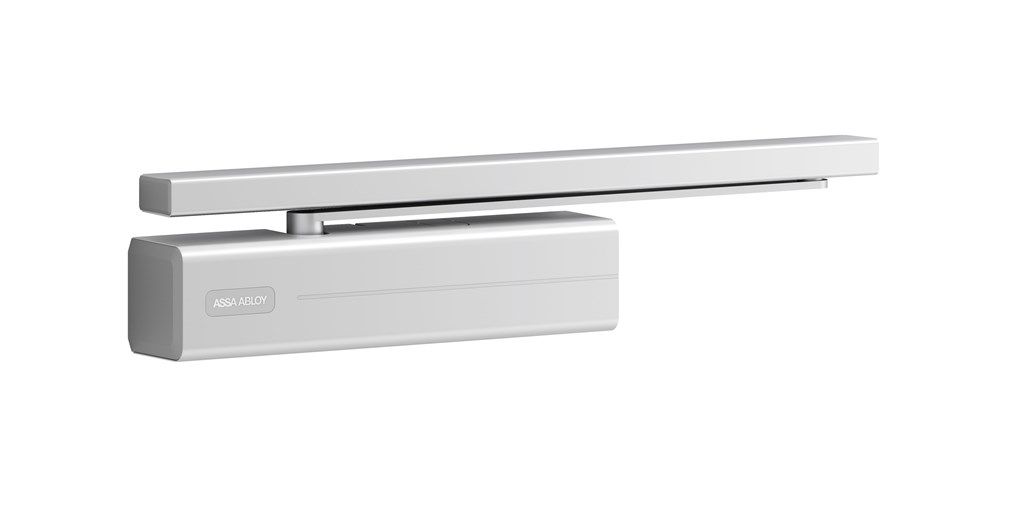

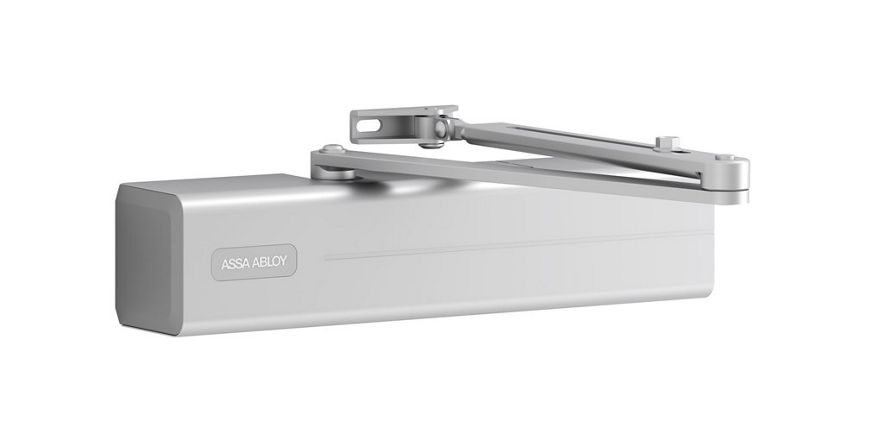

• Rack and pinion door closer with height-adjustable

link arm L190 or guide rail G195/G193

• Certified in compliance with EN1154, size 2-6 with

link arm and size 2-4 with guide rail

• Delayed action variant DC340DA certified in compliance

with EN1154, size 2-6 with link arm and size

2-4 with guide rail

• Suitable for fire and smoke protection doors
• For single action doors up to 1100 mm wide (guide

rail) and 1400 mm (link arm)

Characteristics of DC340

• Can be used with integrated concealed mounting

plate, suitable for fire and smoke protection doors

• Can be used for left and right-handed doors
• 14 mm height adjustable arm system for ease of

fitting

• Closing speed, latching speed and backcheck adjustable

via front facing regulating valves

• Thermodynamic valves for consistent performance
• Variable adjustable closing force
• Opening angle up to 180°
• Large range of applications

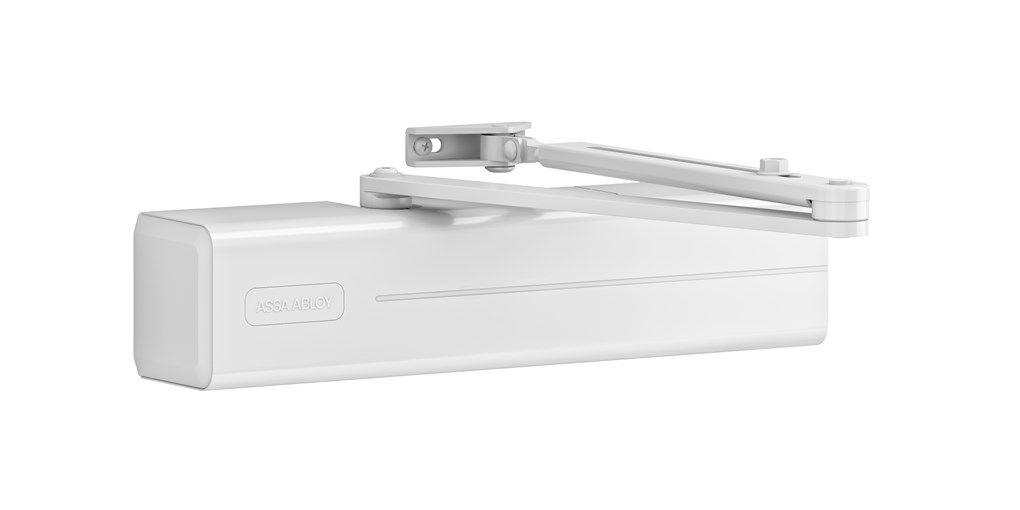

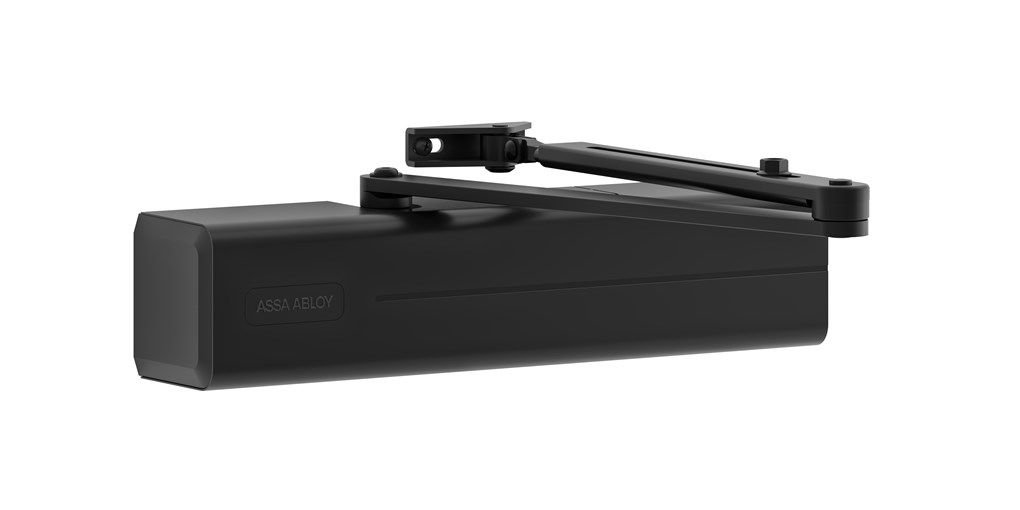

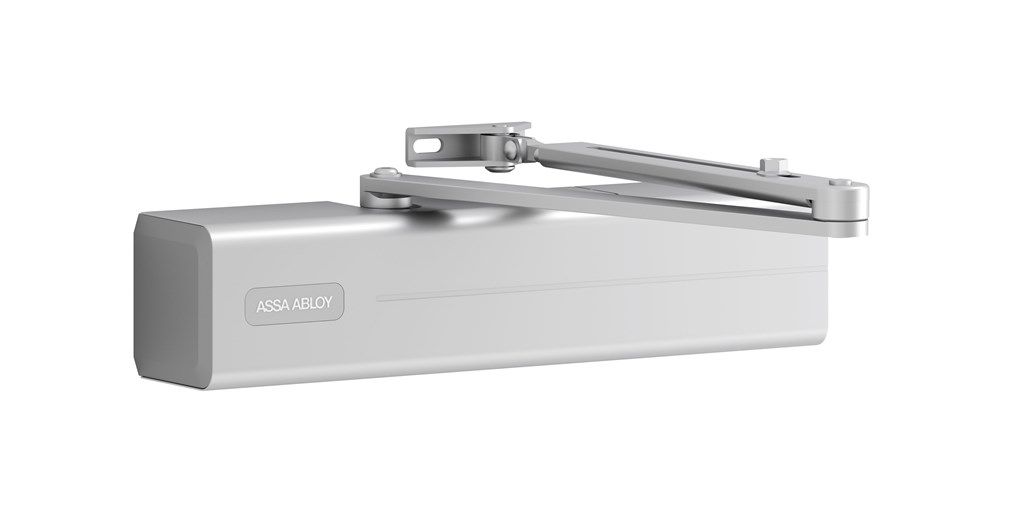

• Standard colours: silver EV1; white, similar to

RAL9016; brown, similar to RAL8014; black, similar

to RAL9005, stainless steel

• Customised finishes available on request
