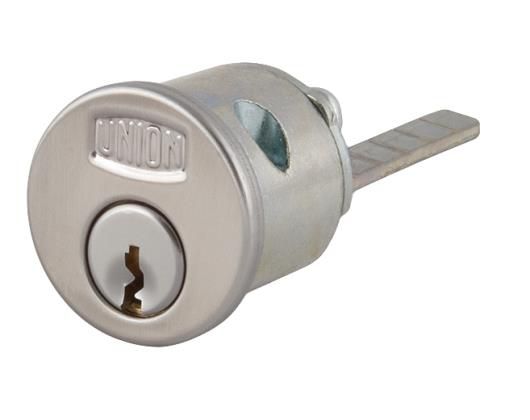

KURIMCYL - KeyULTRA Rim Cylinder

Application

• Single rim keyed cylinder
• For use with nightlatches or other locking devices which are operated from a tailbar
• Suitable for doors up to 54mm thick

Specification

• Key access from one side of the door
• Patented until 2028 (GB2453625 and GB2453624)
• Suitable for fire doors
• Bump resistant GuardPIN technology
• Drill resistant
• Plug extraction resistant
• Chisel and twist resistant
• Pick resistant:
• Paracentric keyway
• Mushroom drivers
• Anti-pick notches in the differ pins
• Wear resistance: Nickel silver differ pins
• Extensive master keying capability - available key differs in excess of half a million
• Supplied with 2 oversized solid nickel silver keys as standard
• Extra keys available upon request
• Manufactured in UK
• Available in SC and PL finishes

Finish

• SC - Satin Chrome
• PL - Polished Brass

Standards

• Cycle tested to 500,000 cycles
• BS EN 1303:2005

  1

  6

  0

  1

  0

  C

  6

  2*

   *When used with appropriate security escutcheon
• EN 1634-1 assessed for use on 60 minutes timber fire doors
