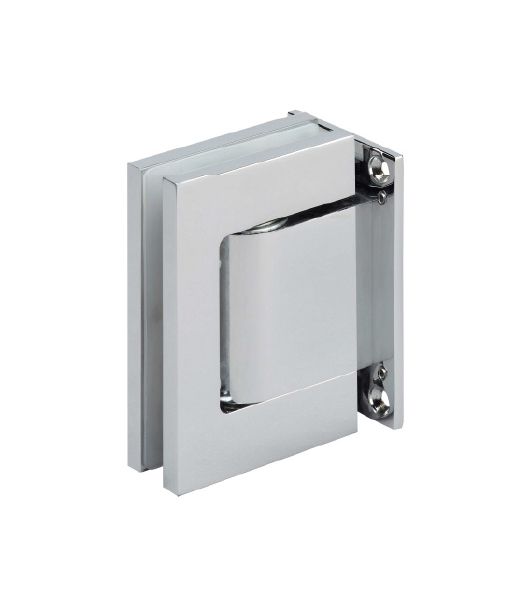

4961.**.0SQ Freeline Hinge

Hydraulic Hinge

Description:

          • Single hydraulic hinge wall plate with 4 fixing holes
          • Hydraulic system for comfort in automatic door closing
          • Aesthetic solution
          • Adjustable closing speed
          • For glass door
          • 100kg easy installation
          • Max. load 100kg for 2 hinges

          Technical details:

          • Recommended for inside doors
          • Maximum door size 1000mm x 3000mm
          • For 8, 10 or 12mm thick toughened glass
          • Blocking at 0° and 90° with hydraulic return from 80° to 0° on both sides
          • Adjustable in the closed position
          • Adjustable closing speed
          • To fit notch 4961E1 for single hinge 4961 and notch 4962E for double hinge 4962
          • Supplied with spacers and stainless steel fixing screws
