AAF-TV45
Curtain Walls

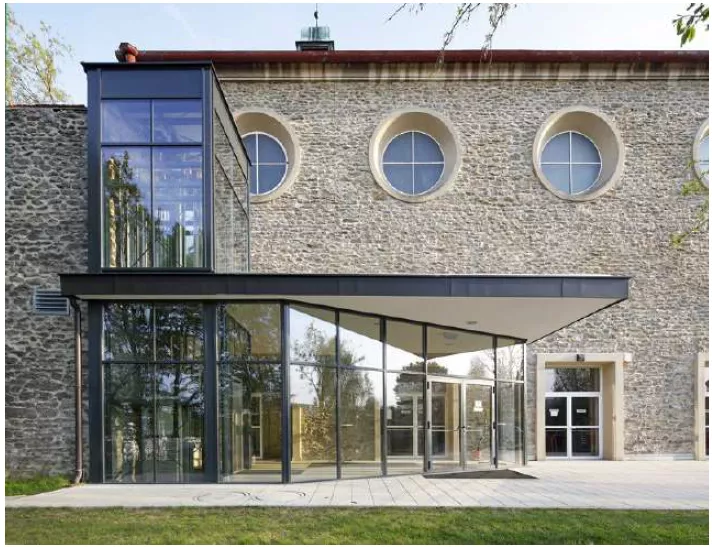

Thermfix Vario is the system for thermally insulated, internal and external grade, curtain walls and skylights comprising of mild steel profiles, stainless steel pressure plates and
aluminium or stainless-steel cover caps.
The system boasts very narrow sightlines, with 45mm depth and has been tested for all aspects of safety, security and weather performance. Thermfix Vario is an extremely versatile system, as the performance can be altered simply by changing the glass.
The system has been comprehensively tested to both the European and North American standards for fire resistance, balistic, burglary, and blast protection. The system is listed
and labelled by M/S Intertek - a well-renown independent third-party certification body - and is approved by the Civil Defense authorities across the GCC.
Technical Datasheet:
| Description | Result | Standard | |
| Material Options | Black box steel (mildsteel) profiles | ||
| Galvanized steel profiles | |||
| Stainless steel grade 304 available for some sections (brush finish grain 220-240) | |||
| Availible profile widths: 45 mm and 60 mm | |||
| Aluminium and stainless-steel capping with stainless steel pressure plates | |||
| Fire resistant options | Fixed partitions | EI30 to EI120 | EN 1634-1 |
| Fixed partitions | 1 and 2 hours temperature rise restricted (T) | UL 463/ NFPA 251 | |
| Fire code compliance | European and North American Standards | ||
| NFPA101 and NFPA80 | |||
| GCC Civil Defence Approved through local forster fabricators | |||
| Tested design variants | Tested with single, double and tripple glazed options Classification from CE-tests according to EN13830: | ||
| Thermal insulation: U-Values | Up to1.0 W/(m2∙K) | ||
| Resistance to wind load | 3 kN, safety load 4.5 kN | EN 12179 | |
| Air permeability | AE (>600) | EN 12153 | |
| Sound insulation | Rw up to 50dB | EN ISO140-3 | |
| Burglary resistance | RC2-3 | EN 1627-1630 | |
| Ballistic rating | FB4, FB6 and FB7 | EN 1522 | |
| Water Penetration | R2 1200 | EN 12155 | |
| Impact resistance | E5/l5 | EN 14019 | |
| Blast resistant facade | EPR1(S) | EN 131 23-1 | |
| System properties | Extremely slender visible section widths (45mmand60mm) and depth | ||
| Can be powder coated or wet paint coated (to be checked with local applicator) | |||
| Large glass panels available for re rated systems | |||
| Extremely economical manufacturing without special equipment | |||
| Robust system, resistant to damage | |||
| Can be used in combination with forster presto and forster fuego light | |||
| Environmental & Sustainability Credentials | Environmental Product Declaration (EPD) | Can apply online | |
| High Recycle Content | Project specific declaration can be provided on request |
