AAF-FL65/70
Fire Rated Doors & Partitions Thermally Insulated

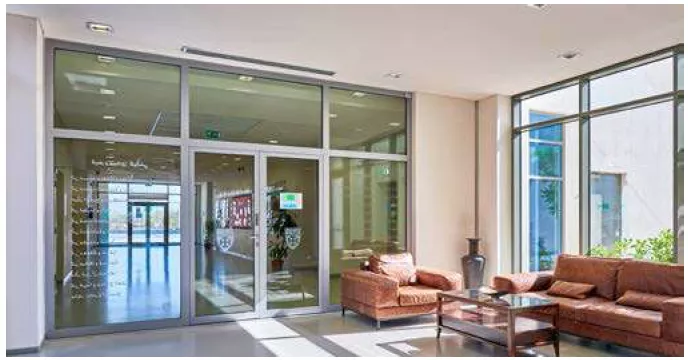

This system is a highly advanced thermally insulated profile system used for flush mounted single or double-leaf swing doors, single and double-leaf sliding doors, windows and glazed partitions.

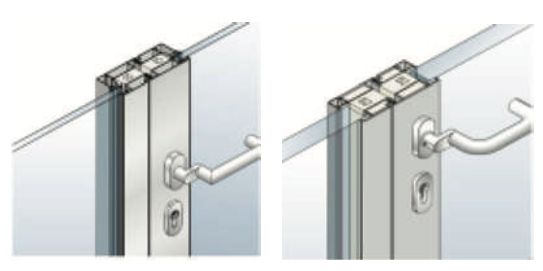

It is manufactured from cold rolled mild steel profiles, with zinc magnesium coating, square cut Snap-on glazing beads, and calcium silicate insulation embedded in the profiles.

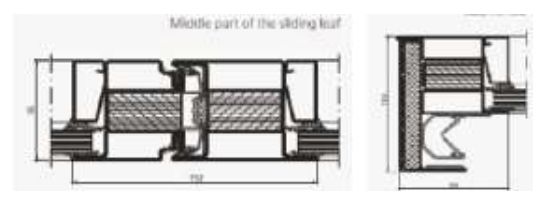

The system has a nominal depth of 65mm, 70mm and 110mm; where the profiles can also be welded together to form complex constructions.
The system has been comprehensively tested to both the European and North American standards for fire resistance and other safety parameters.
The system is listed and labeled by M/S Intertek, a well - renown independent third-party certification body and is approved by the Civil Defense authorities across the GCC.
Technical Datasheet:
| Description | Result | Standard | |
| Material Options | Zinc magnesium (ZM) coated steel | ||
| Stainless steel grade 304 (brush finish grain 220-240) | |||
| Various profile depths availible, depending on the fire rating | |||
| Fire resistant options | Fixed partitions | EI30 to EI120 | EN 1634-1 |
| Single and double doors | EI30 to EI90 | ||
| Single and double automatic sliding doors | EI30 to EI90 | ||
| Double action, non-rebated, unlatched swing doors (Single and double leaf) | EI30 | ||
| Double egress doors/push pull | EI30 to EI60 | ||
| Single action, non-rebated, unlatched swing doors (Single and double leaf) | EI30/EI60/EW90 | ||
| Flush mounted sheet metal doors | EI30 to EI60 | ||
| Fixed partitions | 1 and 2 hours temperature rise restricted (T) | UL 263/NFPA251 | |
| Single action, non-rebated, latched swing doors (Single and double leaf) | 1 and 5 hours temperature rise restricted (T) | UL10C/NFPA252 | |
| Single and double doors | |||
| Sound absorbing/ fire rated panel | 2 hours | ASTME119 | |
| Fire code compliance | European and North American Standards | ||
| NFPA101 and NFPA80 | |||
| GCC Civil Defence Approved through local forster fabricators | |||
| Tested design variants | Fire resistant doors in combination with smoke rating requirements | Sa, S200 | EN1634-3 |
| Burglar resistant doors | RC1-3 | ||
| Fittings | UL listed hardware available | ||
| Door closers complete within house cycling testing | |||
| Sound insulation (hinged doors, depth 60 mm) | |||
| Latch locks and lever handles | |||
| Un-latched systems available with pull handles | |||
| Compatable with access control devices | |||
| System properties | Extremely slender visible section width sand depth | ||
| Sound insulation (hinged doors, depth 60 mm) | |||
| Can be powder coated or wet paint coated (To be checked with local applicator) | |||
| Large glass panels available for fire rated systems | |||
| Large door sizes available for fire rated systems | |||
| Extremely economical manufacturing without special equipment | |||
| Robust system, resistant to damage | |||
| Can be used in conjunction with forster thermfix vario facades | |||
| Sound insulation (hinged doors EI30) | Up to 45 dB | EN ISO 140-3 | |
| Sound insulation (hinged doors EI60) | Up to 48 dB | ||
| Sound insulation (fixed screens EI30) | Up to 47 dB | ||
| Sound insulation (fixed screens EI60) | Up to 48 dB | ||
| Sound insulation (hinged doors EI90) | Up to 47 dB | ||
| Sound insulation (fixed screens EI60) | Up to 48 dB | ||
| Environmental & Sustainability Credentials | Environmental Product Declaration (EPD) | Can apply online | |
| High Recycle Content | Project specific declaration can be provided on request |
