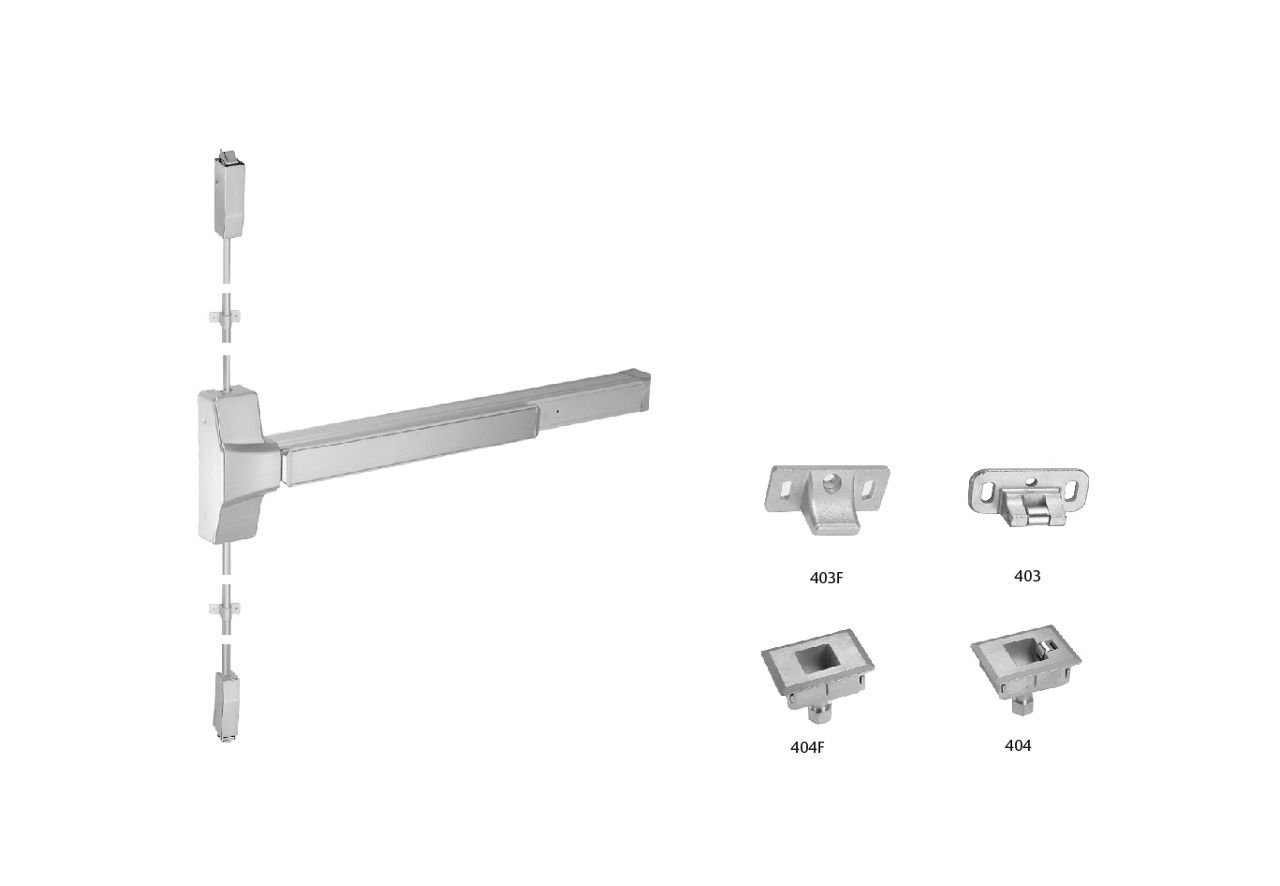

XD 1V - Vertical Rod Exit Device

Characteristics:

Model XD 1V Panic SVR exit devices are used for all types of single and double doors. Fire SVR exit devices are used for UL listed fire labeled single doors up to 8 x 8 (2438mm x 2438mm) double doors installation
These SVR models cannot be omitted the bottom rod to use as Less Bottom Rod (LBR) devices. If LBR devices are desired, see the Less Bottom Rod Surface Vertical Rod Exit Devices page

Material	Stainless steel and steel components on aluminum chassis
Strikes	Steel Vertical rods Aluminum
Handing	This device ships RHR and is quick field-reversible

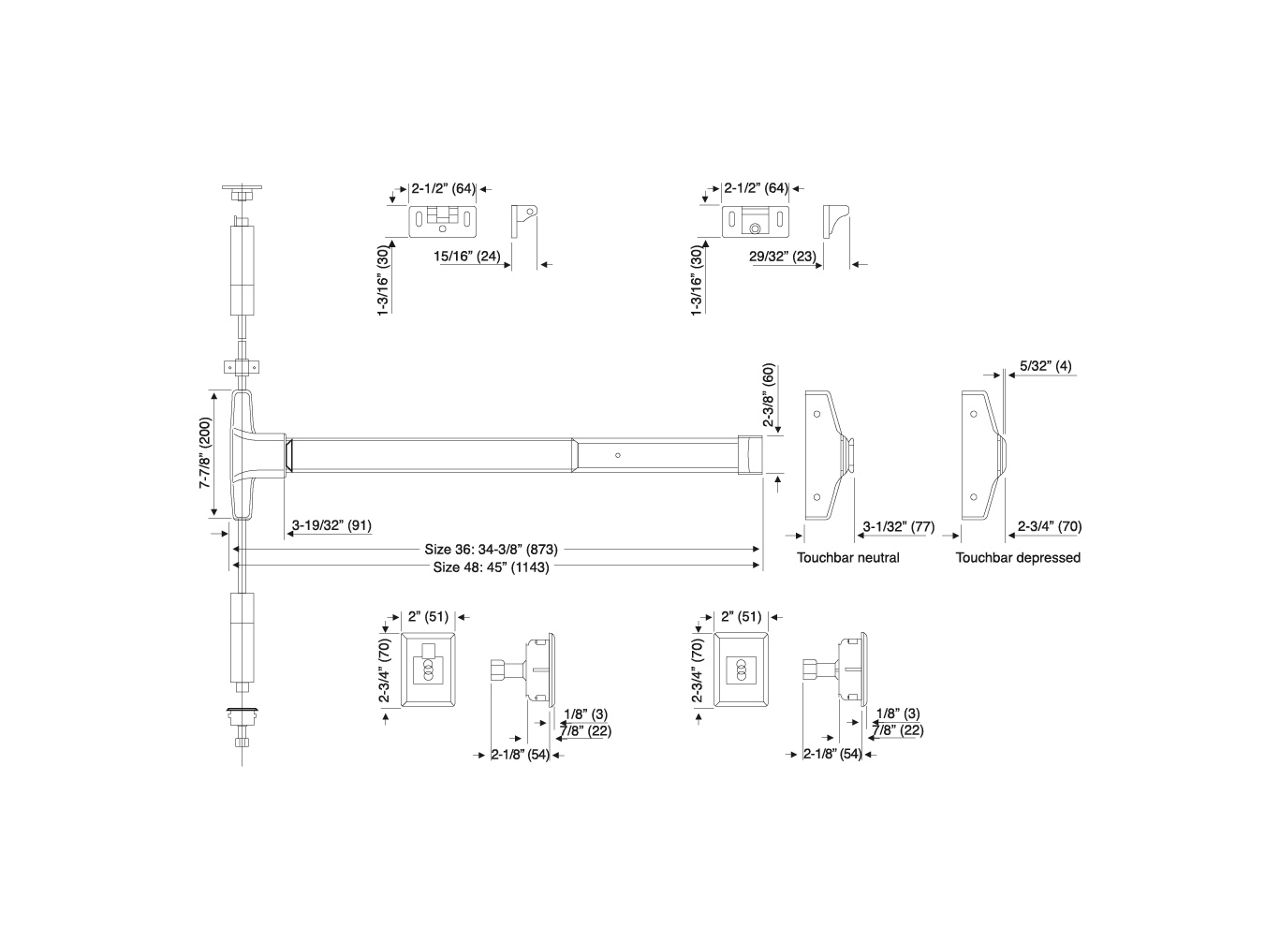

Device Lengths	Short - 36” (850mm) Long - 48” (1137mm)
Door Widths	36” - (736mm to 914mm) door size 48” - (838mm to 1219mm) door size
Minimum Stile Width	107mm
Latch Bolt	Top latch - (16mm) throw, can be deadlocked automatically Bottom latch - (16mm) throw, held retracted during door swing
Dogging Kit	Panic device - Hex key dogging (RD) standard Fire device - No mechanical dogging (ND)
Dogging Options	Cylinder Dogging (CD) Less Dogging (LD)
Mounting Fasteners	Panic device - Machine screws furnished standard SNB furnished for top & bottom latches Fire device - Six nuts and bolts (SNB) supplied standard SNB are required to use for wood doors, order SNB separately
Mounting Heigh	Device center line from finished floor is (1016mm) standard
Door Opening	Height Standard door height is 7. (8’is available)
Vertical Rods	(13mm) diameter tubular with rod guides Top rod has two pieces to connect for accomodating 7’ or 8’ door Bottom rod is one piece, it’s length is (794mm)
Projection	Pushbar Neutral: 3-1/16” (78mm) Pushbar Depressed: 2-19/32” (66mm)
Finish	603, 605, 612, 613, 625, 626, 630, 689
Certification	ANSI /BHMA: Tested and certified to the requirements of ANSI/BHMA A156.3 Exit Devices Grade 1 UL listed: Panic Exit Hardware, or 3-hours Fire Exit Hardware
