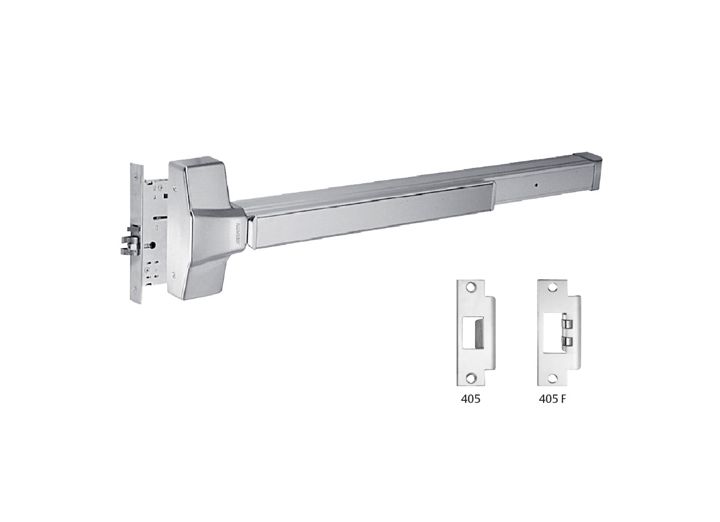

XD 1M rim exit devices are used for all types of single and double doors with mullion
XD 1M rim exit devices are used for UL listed fire labeled single doors up to 4 x 8 (1219mm x 2438mm) or 8 x 8 (2438mm x 2438mm) double doors installation
1
of
3
Cookie consent
This video is hosted by YouTube. By showing the external content you accept the terms and conditions of
www.youtube.com.
*Your choice will be saved in a cookie until you have closed your browser.
Material
Stainless steel and steel components on aluminum chassis
Strikes
Steel
Vertical rods
Aluminum
Handing
This device ships RHR and is quick field-reversible
Device Lengths
Short - 36” (850mm)
Long - 48” (1137mm)
Door Widths
36” - (736mm to 914mm) door size
Minimum Stile Width
48” - (838mm to 1219mm) door size
Latch Bolt Strikes
Stainless steel two-piece mechanical (19mm) with anti-friction inset and auxiliary deadlocking latch.
Dogging Kit
Fire device - No mechanical dogging (ND)
Dogging Options
Cylinder Dogging (CD)
Less Dogging (LD)
Mounting Fasteners
Panic device - Machine screws furnished standard
Fire device - Six nuts and bolts (SNB) supplied standard SNB are required to use for wood doors, order SNB separately
Mounting Heigh
Device centerline from finished floor is 40" (1016mm) standard
Projection
Pushbar Neutral: 3-1/16” (78mm)
Pushbar Depressed: 2-19/32” (66mm)
Finish
603, 605, 612, 613, 625, 626, 630, 689
Certification
ANSI /BHMA: Tested and certified to the requirements of ANSI/BHMA A156.3 Exit Devices Grade 1
UL Listed : Panic Exit Hardware, or 3-hour Fire Exit Hardware
