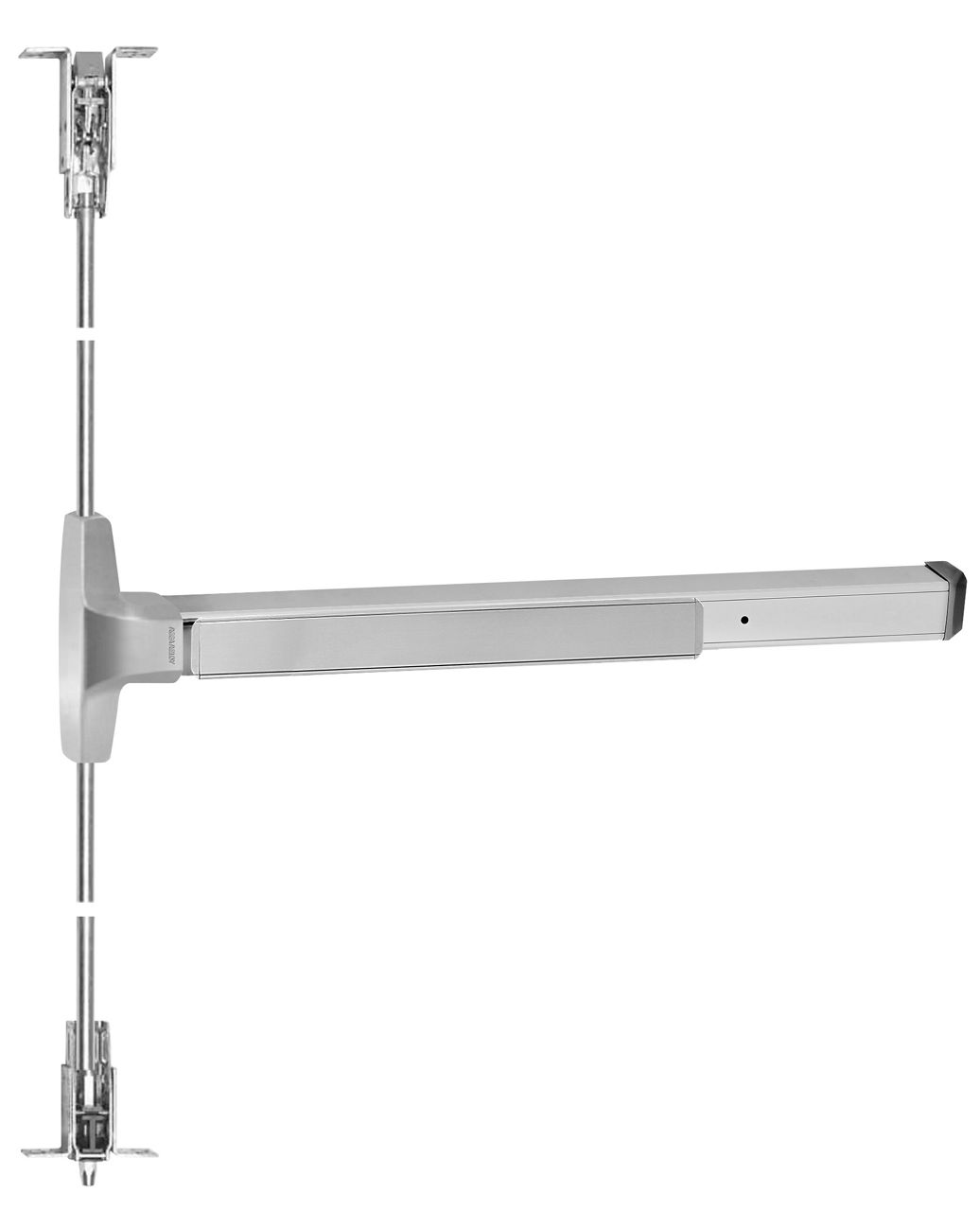

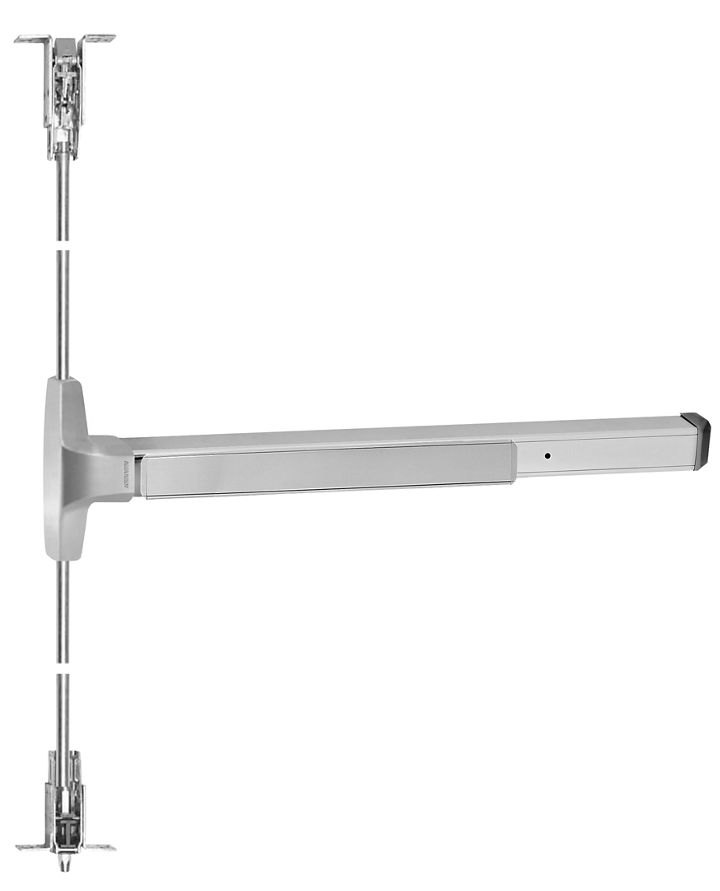

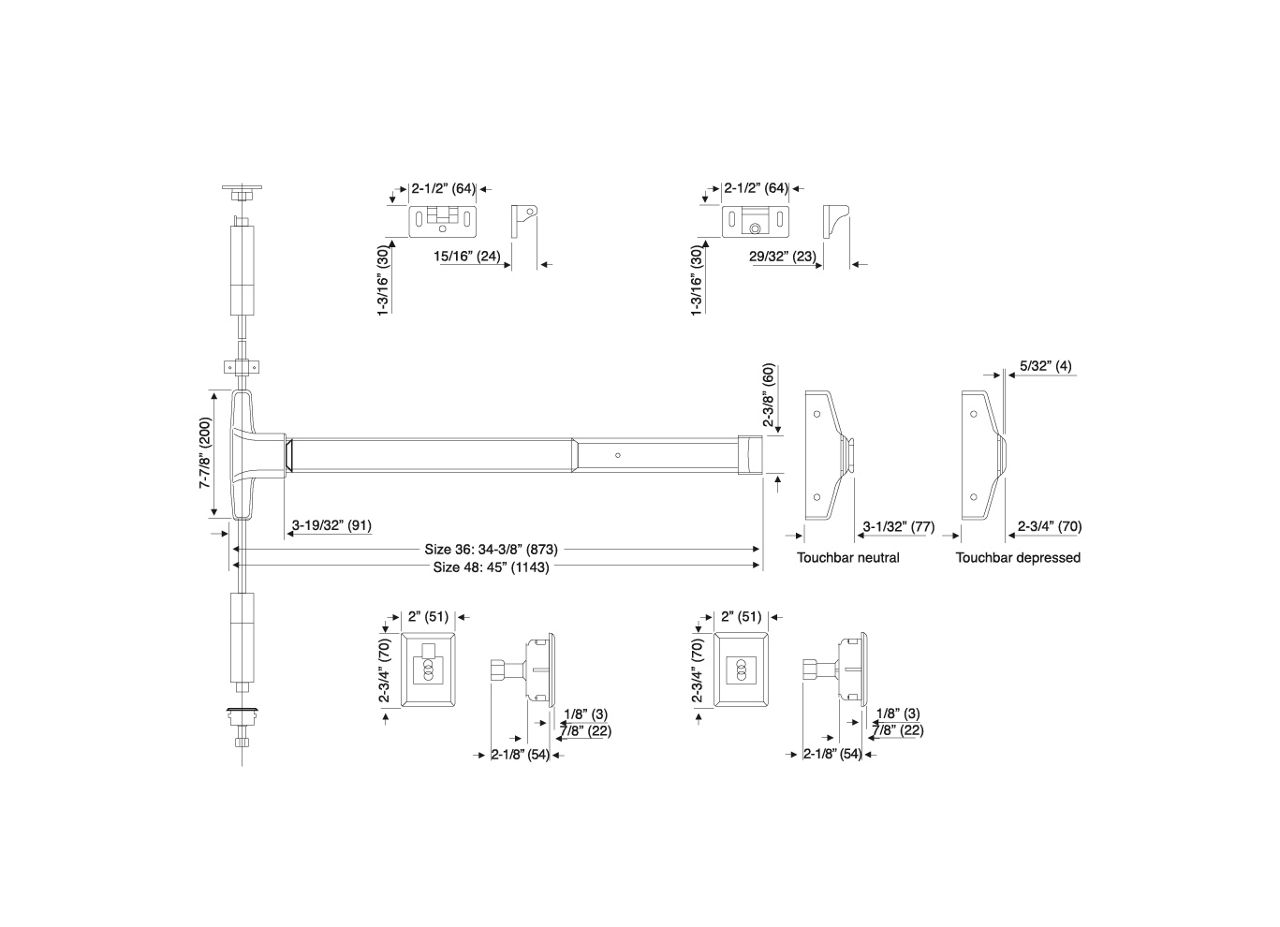

XD 2C - Concealed Vertical Rod Exit Device

Characteristics:

XD 2C Narrow design panic SVR exit devices are used for the aluminum frame full glass doors or narrow style aluminum doors applications. Narrow design Fire SVR exit devices are used for the aesthetics requirements of wide style pairs of metal or wood doors up to 8’ x 8’ (2438mm x 2438mm).


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Material  Stainless steel and steel components on aluminum chassis
Strikes Steel
Vertical rods Aluminum
Handing This device ships RHR and is quick field-reversible
Device Lengths

Short - 850mm

Long - 1137mm

Door Widths

736mm to 914mm door size

838mm to 1219mm door size

Minimum Stile Width 66mm
  Latch Bolt Strikes

Top latch - (16mm) throw, can be deadlocked automatically

Bottom latch - (16mm) throw, held retracted during door swing

Dogging Kit

Panic device - Hex key dogging (RD) standard

Fire device - No mechanical dogging (ND)

Dogging Options

Cylinder Dogging (CD)

Less Dogging (LD)

Mounting Fasteners

Panic device - Machine screws furnished standard

Optional SNB are available for device, order SNB separately

Fire device - Six nuts and bolts (SNB) supplied standard

Mounting Heigh

Device centerline from finished floor is 40" (1016mm) standard

Door Opening

Height Standard door height is 7 (8’is available)

Vertical Rods

1/2” (13mm) diameter tubular with rod guides

Top rod has two pieces to connect for accommodating 7’ or 8’ door

Bottom rod is one piece, its length is 794mm

Projection

Pushbar Neutral: 3-1/16” (78mm)

Pushbar Depressed: 2-19/32” (66mm)

 Finish

603, 605, 612, 613, 625, 626, 630, 689

Certification

ANSI /BHMA: Tested and certified to the requirements of ANSI/BHMA A156.3 Exit Devices Grade 1

UL Listed : Panic Exit Hardware, or 3-hour Fire Exit Hardware
