Trims

XDT Series

Characteristics:

Non-handed, easy installation
Easy operating lever handle allows convenient one hand operation
Finishes: US3 (605), US4 (606), US10 (612),US10B (613), US26 (625), US26D (626), US28(689) and US32D (630)
Trim has 4 through-bolts to the device chassis directly for more security and durability
Clutch free wheeling design. The lever rotates when the door is locked preventing excessive force from being applied to the horizontal lever. This designed feature can decrease the lever to be broken or damaged

Operation Options	Key Locks &Unlocks	Always Active (No Cylinder)	Key Retracts Latchbolt	Pull When Dogged

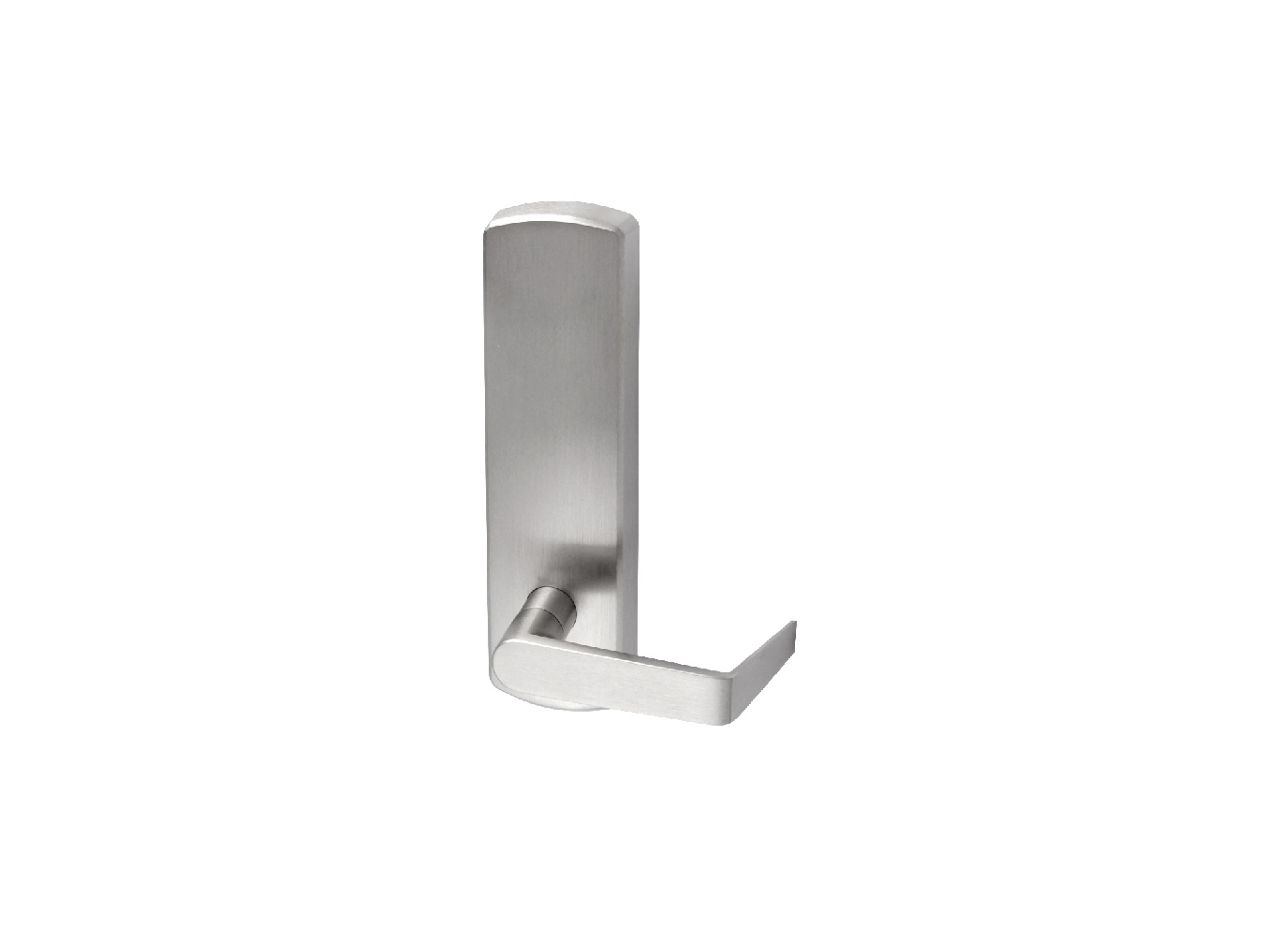

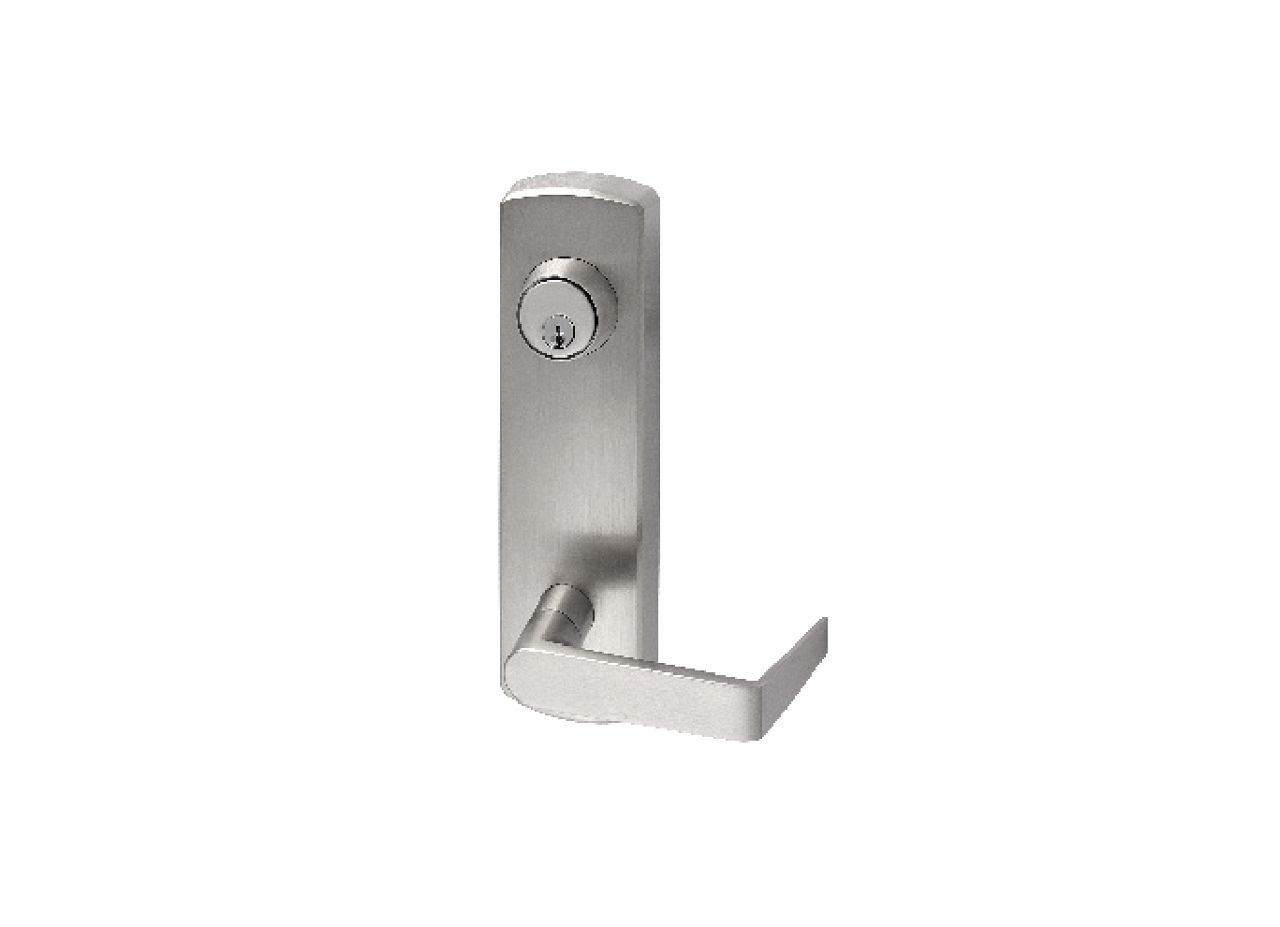

Leverhandle Trim
Designation	Cylinder Esculcheon Lever	Blank Esculcheon Lever	Night Latch Esculcheon Lever	Dummy Esculcheon Lever

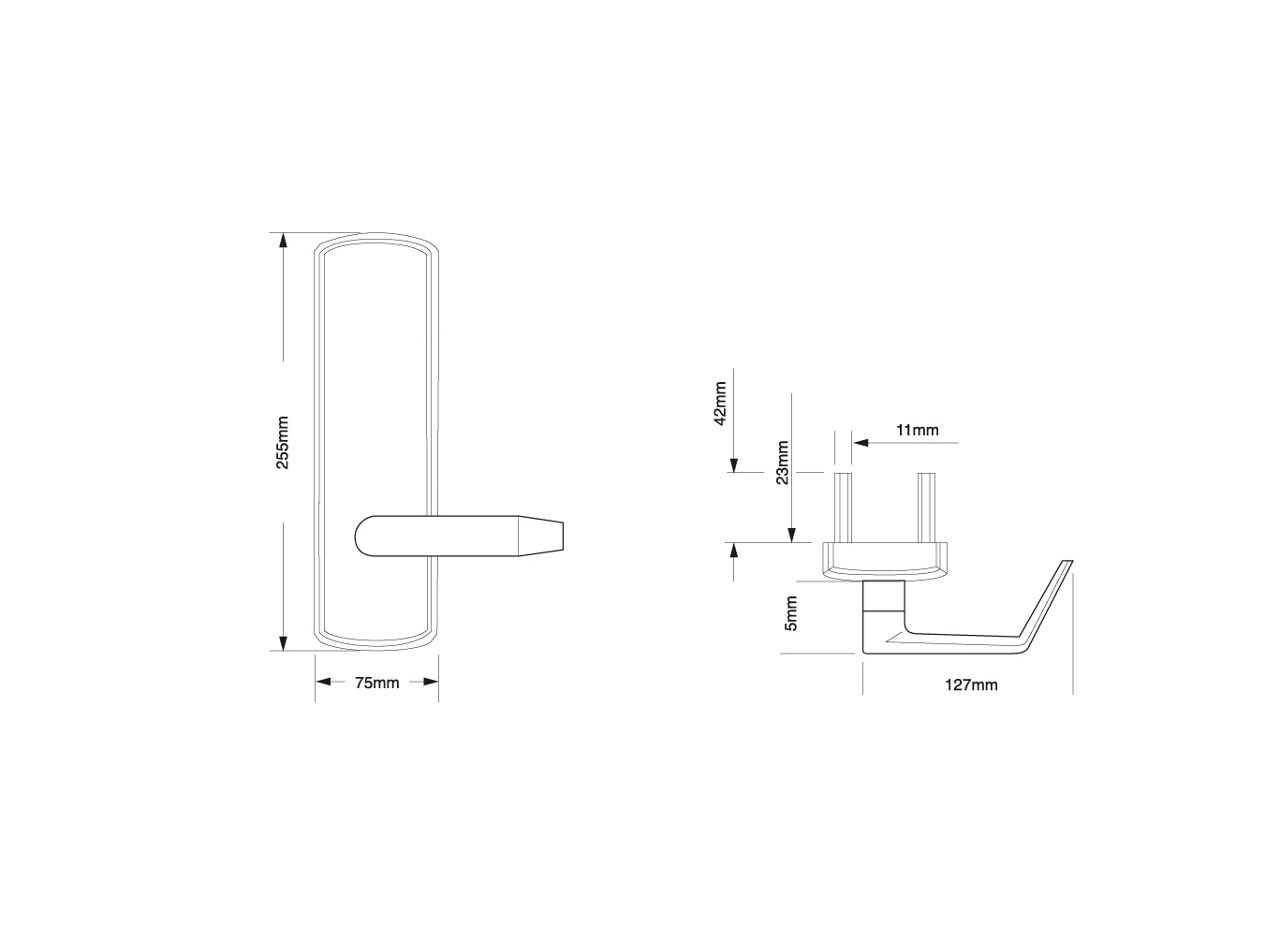

	8 27/32" x 2 15/16" x 15/16" (255mm x 75mm x 24mm)

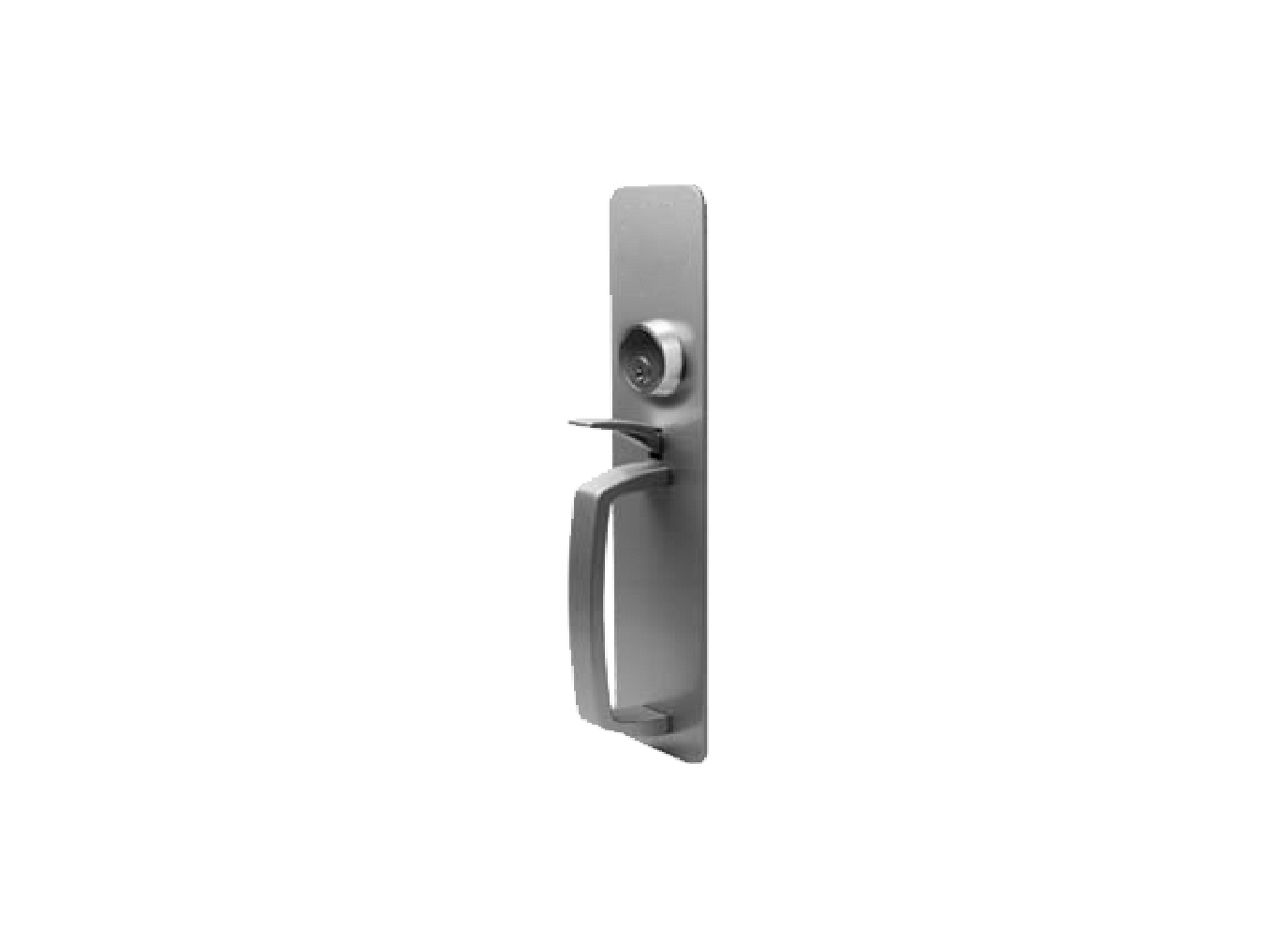

Pull Plate Trim

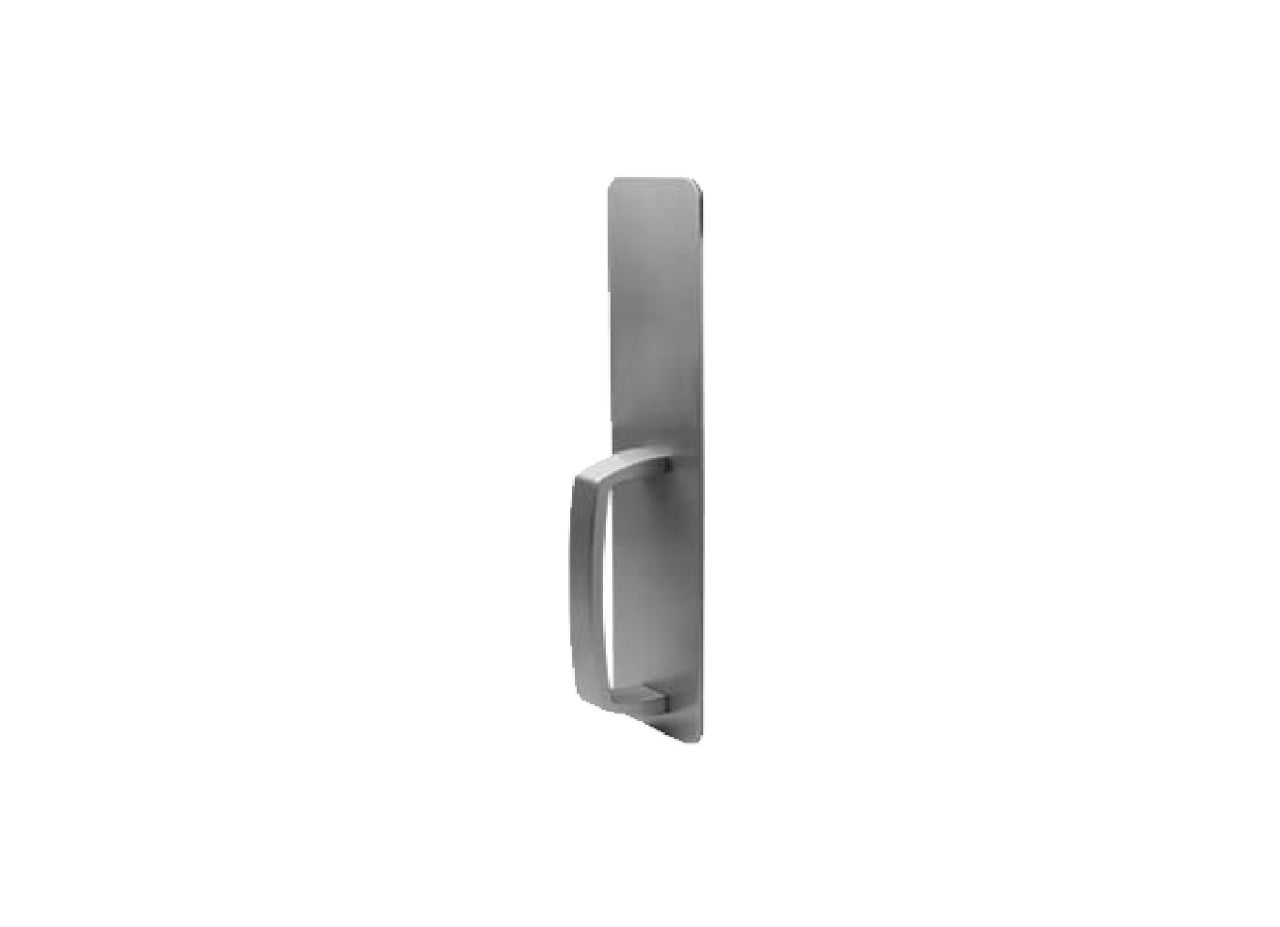

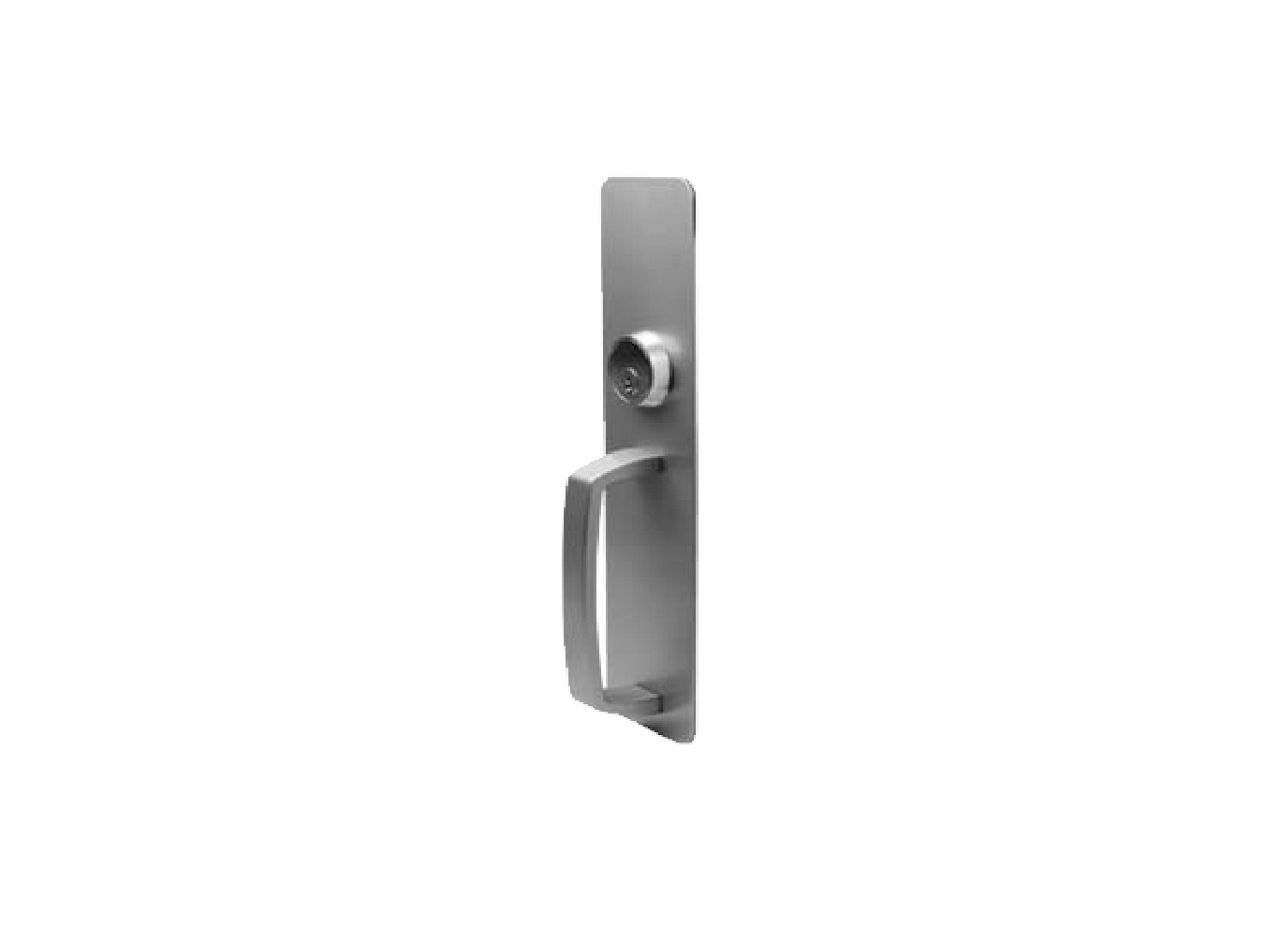

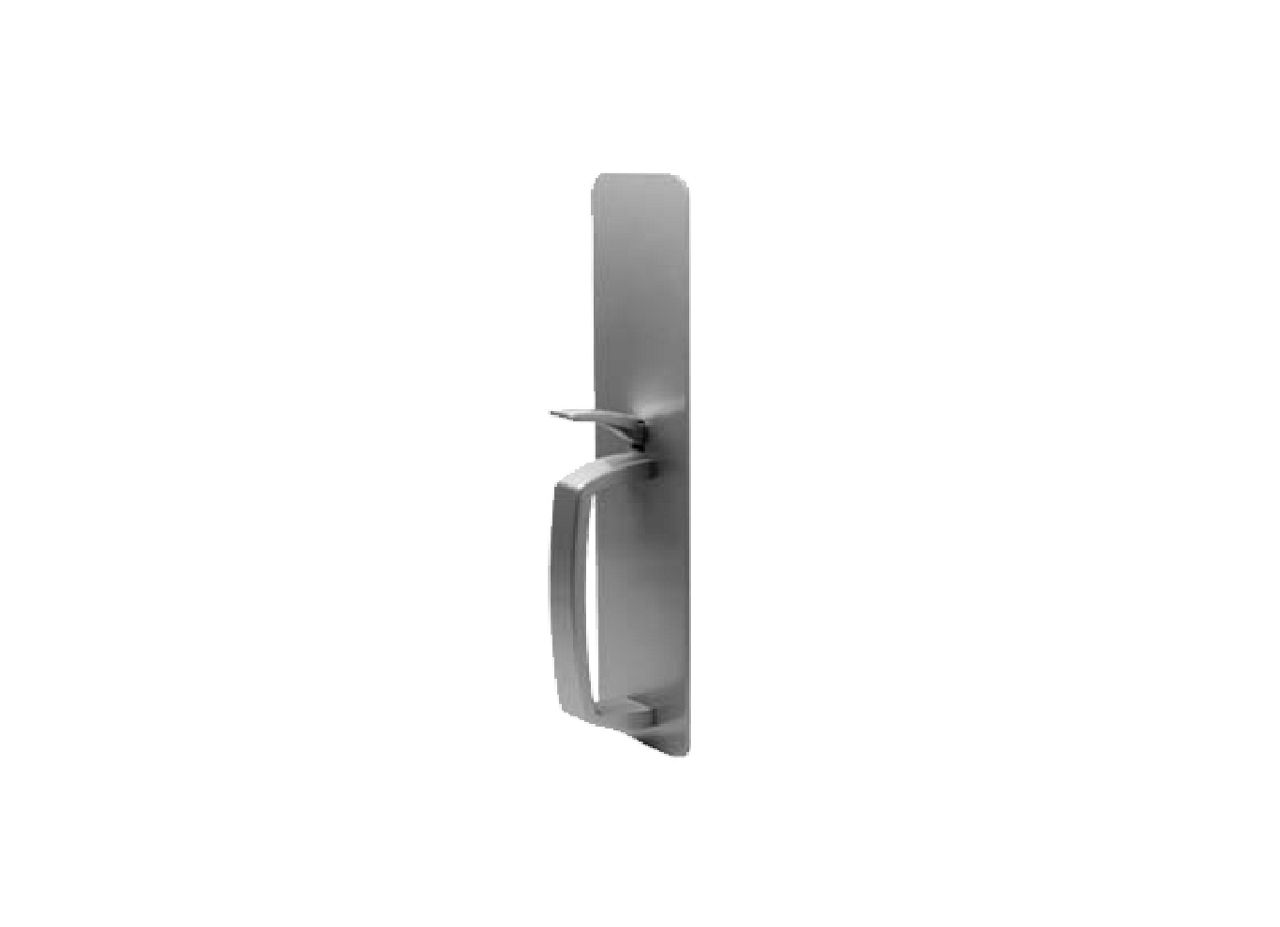

Designation	Cylinder Pull Plate with Thumbpiece	Black Pull Plate with Thumbpiece	Cylinder Pull Plate	Dummy Pull Plate
Escutcheon Plate Size	14 11/16" x 3" x 3/32" (373mm x 76mm x 2mm)
Function	Classroom	Passage	Store room	Dummy
ANSI Function Number	8	14	3	2
Cylinder Type	1/4" Mortise	-	Rim	-
