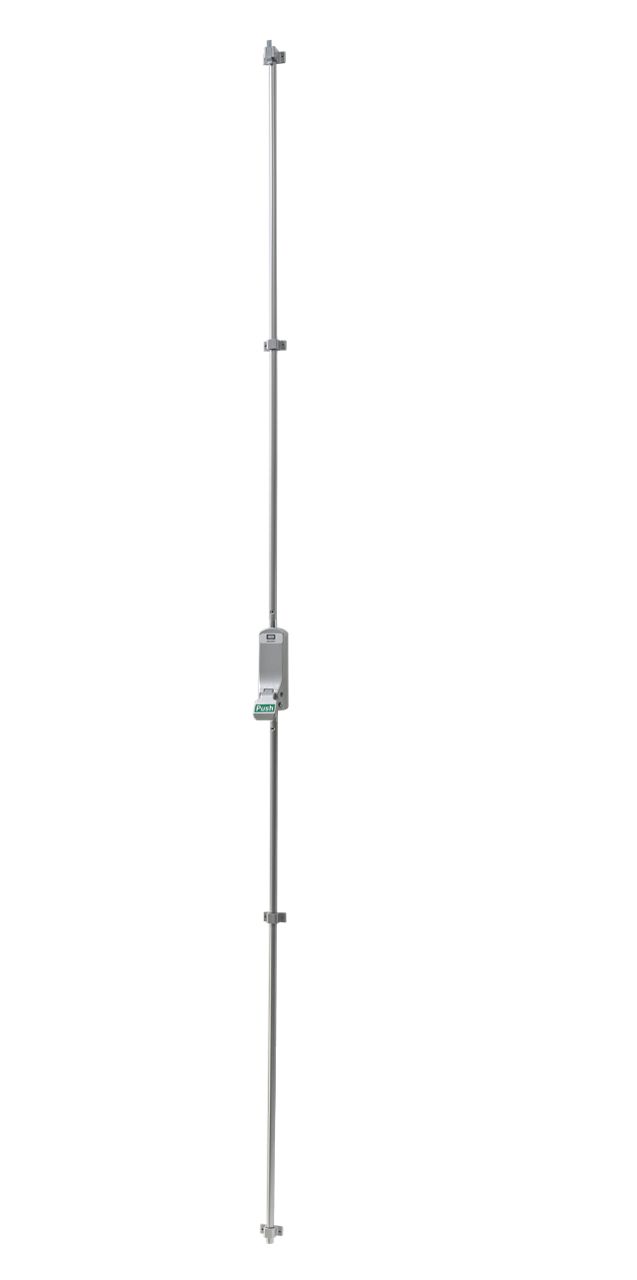

CE858EB - ExiSAFE CE858EB Emergency Bolt

A push pad surface mounted emergency bolt device for use on single doors or as a part of a double door solution.

Application

A push pad surface mounted emergency bolt device for use on single doors or as a part of a double door solution.

• Ideal for final exit escape doors where all users are familiar with building and hardware
• Install to push face of outward opening doors
• Non-handed for maximum flexibility
• Compatible with knob and lever CE855OAD outside access devices

Specification

• Proud to be "Made in Britain"
• CE Marked to EN 179
• Certifire approved
• Can be used on timber fire doors (up to FD120) or metal fire doors up to (FD240) up to 1200mm x 2440mm tall

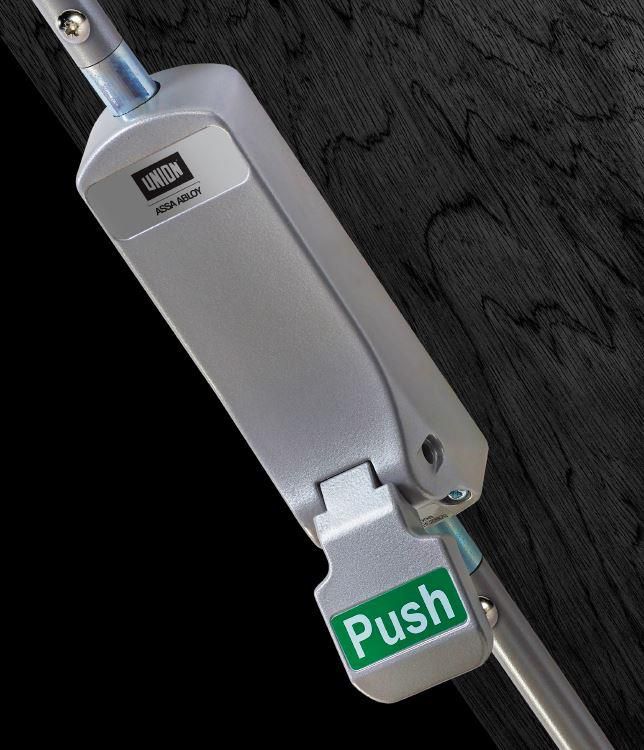

• Compact push pad is discrete - a tidier option for where users are familiar with the building
• Top and bottom shoot bolt rods can be cut to size on sit to fit each door
• Automatic top trip releases bolts only as door closes into frame, preventing damage to frame and flooring
• Anti-thrust features in main mechanism prevents top and bottom shoot bolts being pushed out of keeps to force the door open
• Easy clean floor socket provided as standard
• Alternative keeps and range of spares available
• Complete with "Push" signage
• Install screws concealed by UNION branded label and push pad
• Completed 200,000 cycles in durability testing
• 96 hours corrosion resistance
• Slim line design projects less than 100mm from door face
• 10 year guarantee

Finish

• Silver as standard
• Potential to supply other colours - please ask for details of range and MOQ

Standards

CE Marked to BS EN 179
