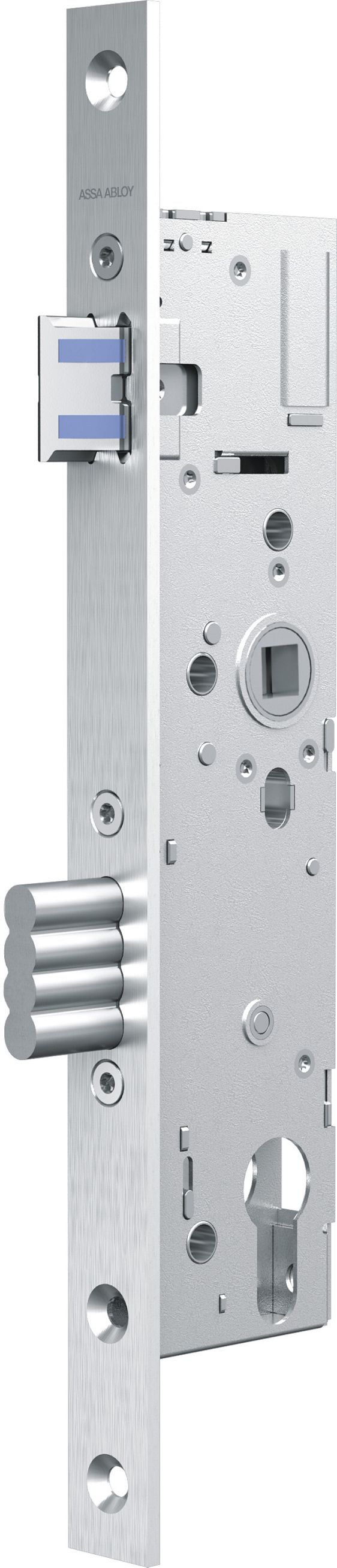

Standard panic lock N16XX

Product description

• OneSystem panic lock N16XX according to EN 179 and EN 1125 for narrow stile doors. Approved for fire barriers according to EN 1634 / product-specific environmental product declaration (EPD) according to EN 15804 with article-specific parameters / tested for 1,000,000 cycles and 300 kg door weight.

Features

• Serie variants are: N1600,N1601,N1602,N1603,N1604,N1605,N1606,N1607,N1608,N1609,N1610, N1611,N1612,N1613,N1614,N1615,N1616,N1620.
• Environmental product declaration (EPD) in accordance with EN 15804
• Tested for 1,000,000 cycles and 300 kg door weight
• Compliance with EN 179/EN 1125, EN 12209
• Small rear backset 15 mm
• Panic function inwards/outwards switchable
• Optional: Bus system with integrated monitoring sensors and simplified connection via 5-wire cable
• Closed lock case
• Latch, reversible between DIN left and right in new design for greater strength and with integrated noise reduction
• Security fittings and oval roses can be screwed on through the lock
• Deadbolt with anti-tampering design
• Optional: Bus System with integrated monitoring function
• Developed for Euro profile cylinder and Swiss round Profile cylinder
