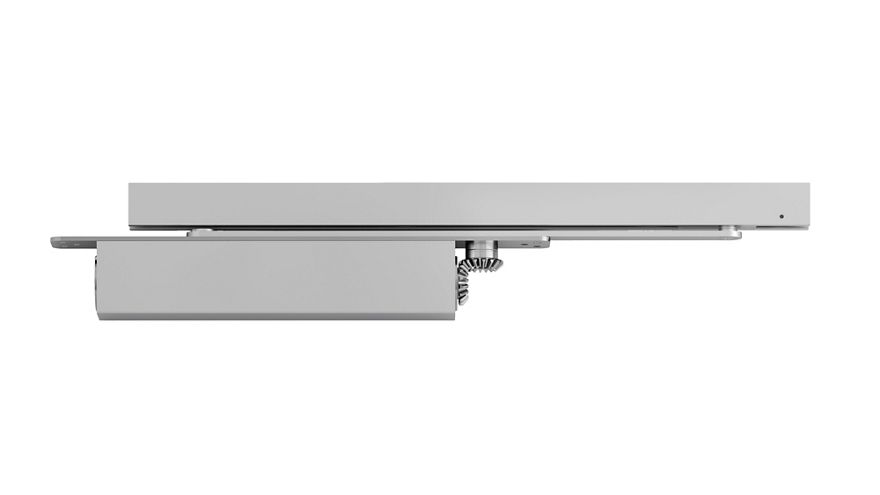

DC860 - Door Closer - Concealed

Door Closer DC860 Cam-Motion^®

Description:

• Concealed door closer with Cam-Motion^®  technology and small standard concealed guide rail G892 or standard concealed guide rail G893
• Fulfils barrier-free building requirements (DDA/ CEN TR 15894)
• Certified in compliance with EN1154, size EN1-5
• Suitable for fire and smoke protection doors
• For single action doors up to 1250mm wide

Characteristics:

• Can be used for left and right-handed doors
• Closing speed, latching speed and back-check adjustable via front facing regulating valves
• Built-in back-check
• Thermodynamic valves for consistent performance.
• Opening angle up to 120°
• Large range of applications
• Versions with 4mm and 8mm spindle extensions
• Standard colours: Silver EV1
• Customized finishes available on request
