DC700 - Door Closer - Surface Mounted

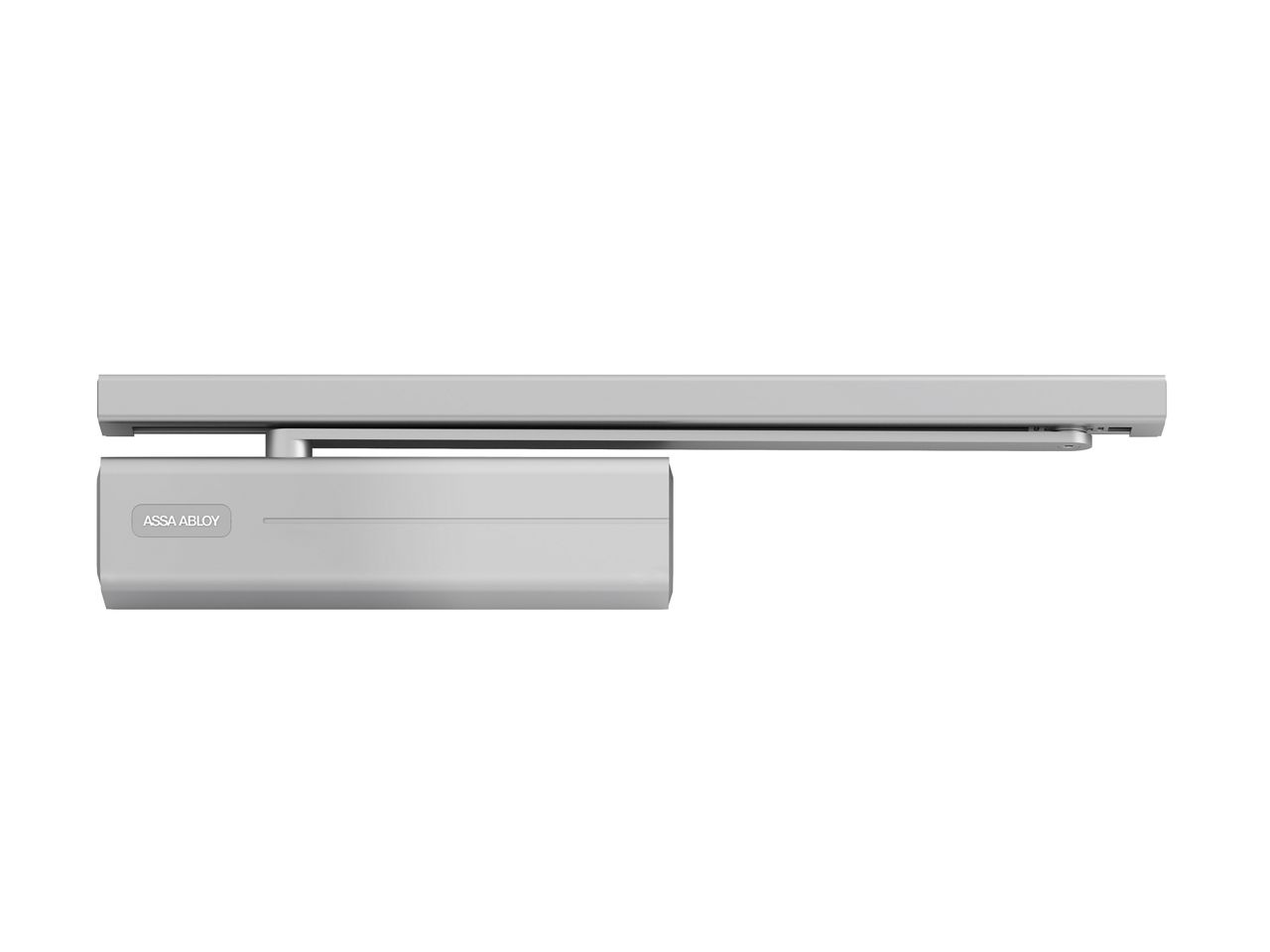

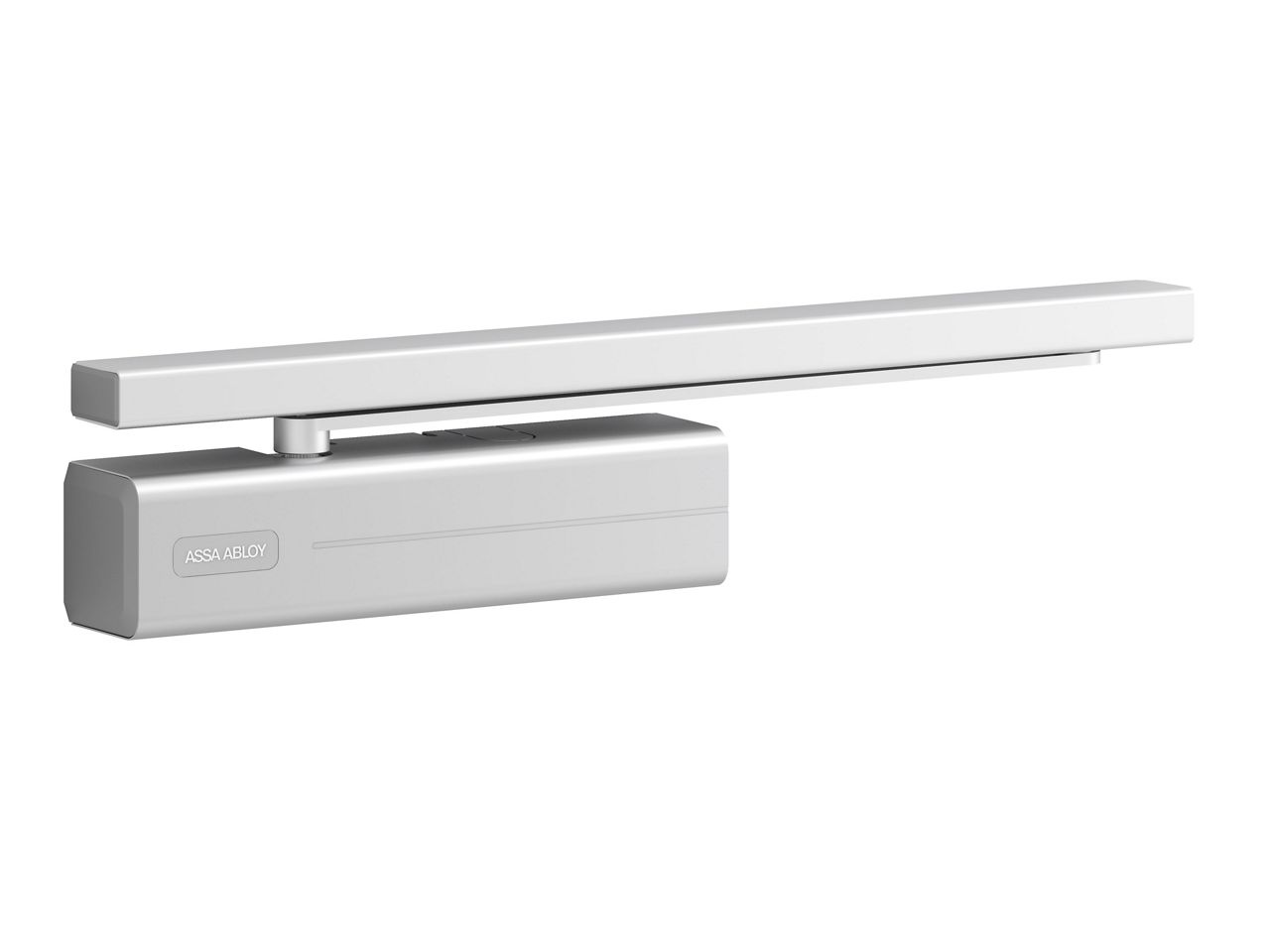

Door Closer DC700 Cam-Motion^®

Description:

• Door closer with Cam-Motion^® technology and height-adjustable guide rail G195 or standard guide rail G193
• Fulfils barrier-free building requirements (DDA/ CEN TR 15894)
• In compliance with EN1154, size EN3-6
• Suitable for fire and smoke protection doors
• For single action doors up to 1400mm wide
• Can be used in four installation types: Hinge and non-hinge sides in standard and frame installation

Characteristics:

• Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for left and right-handed doors
• Axis continuously height adjustable up to 14mm
• Closing speed, latching speed and back-check adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Adjustable closing force
• Opening angle up to 170°
• Optional delayed action
• Large range of applications

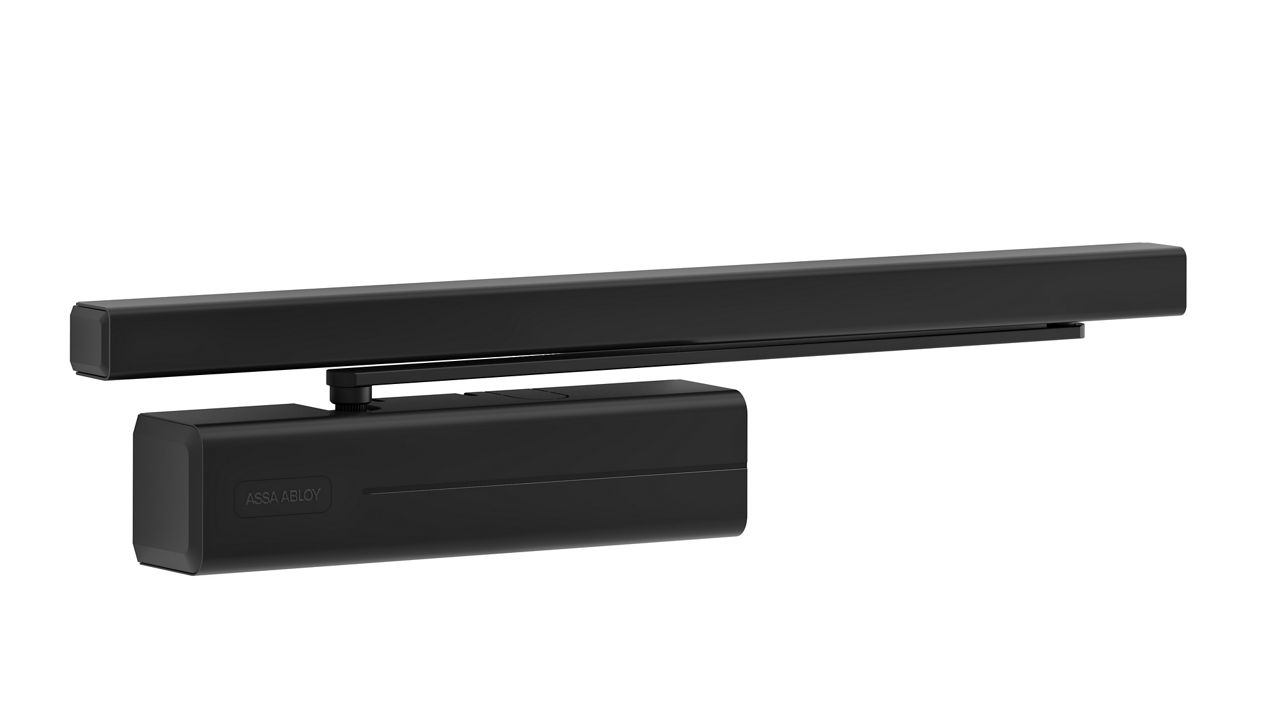

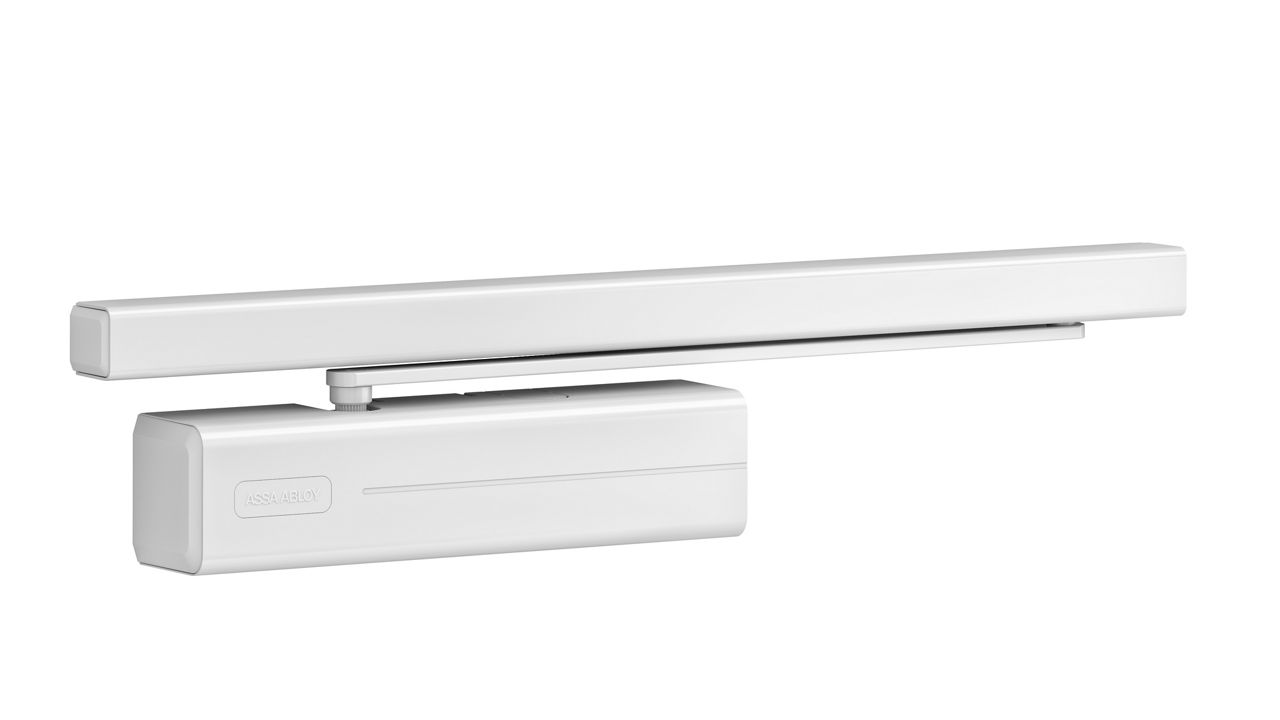

• Standard colours: Silver EV1; White, similar to RAL9016; Brown , similar to RAL8014; Black, similar to RAL9005
• Customized finishes available on request
