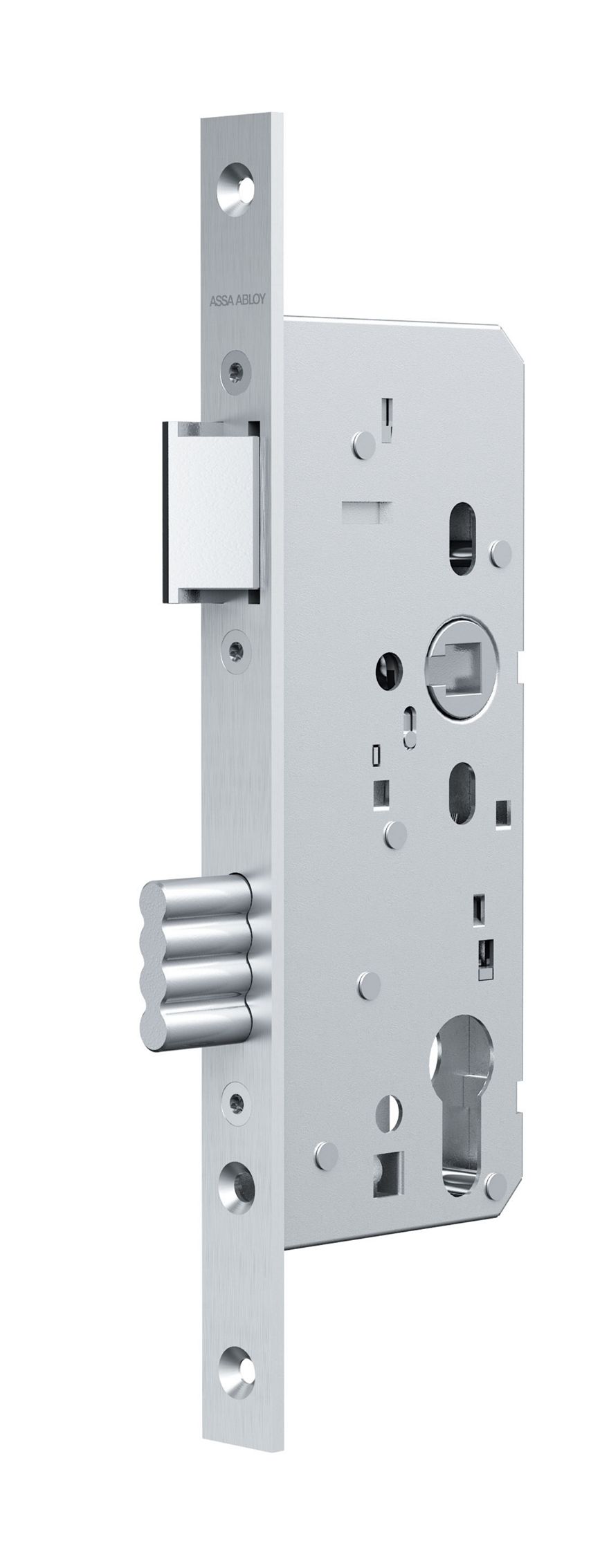

Mortice Lockcase

Key features (OneSystem):

        • Made of SS 304
        • 8 Latching functions
        • Fire rated
        • Non-handed - latch reversible
        • Environmental product declaration (EPD) in accordance with EN 15804
        • Tested for 1,000,000 cycles and 300 kg door weight
        • Compliance with EN 12209
        • Small rear backset 17 mm
        • Continuous screw connection of fittings
        • Suitable espagnolette integrated in the striking plate
        • 20 mm bolt throw with a single rotation
        • Also available as a fire protection version
        • Closed lock case
        • Latch DIN left/right reversible without tools
        • Stainless steel faceplate
        • Deadbolt with anti-tampering design
        • Suitable for Euro profile cylinder
        Benefits:
        • High corrosion resistance
        • High durability
        • Versatile usage
        • Can be used for fire doors
        • Lesser number of SKU's

          Technical details:

          • Center to center - 72mm
          • Backset - 55mm
          • Fits standard cam euro profile cylinder
          • Single throw projection deadbolt - 20mm
          • Suitable for hinged timber, metal and fire doors

          Available Finishes for OneSystem lock: SS- Satin Stainless Steel
