Mortise Lock

AM 1000

Description:

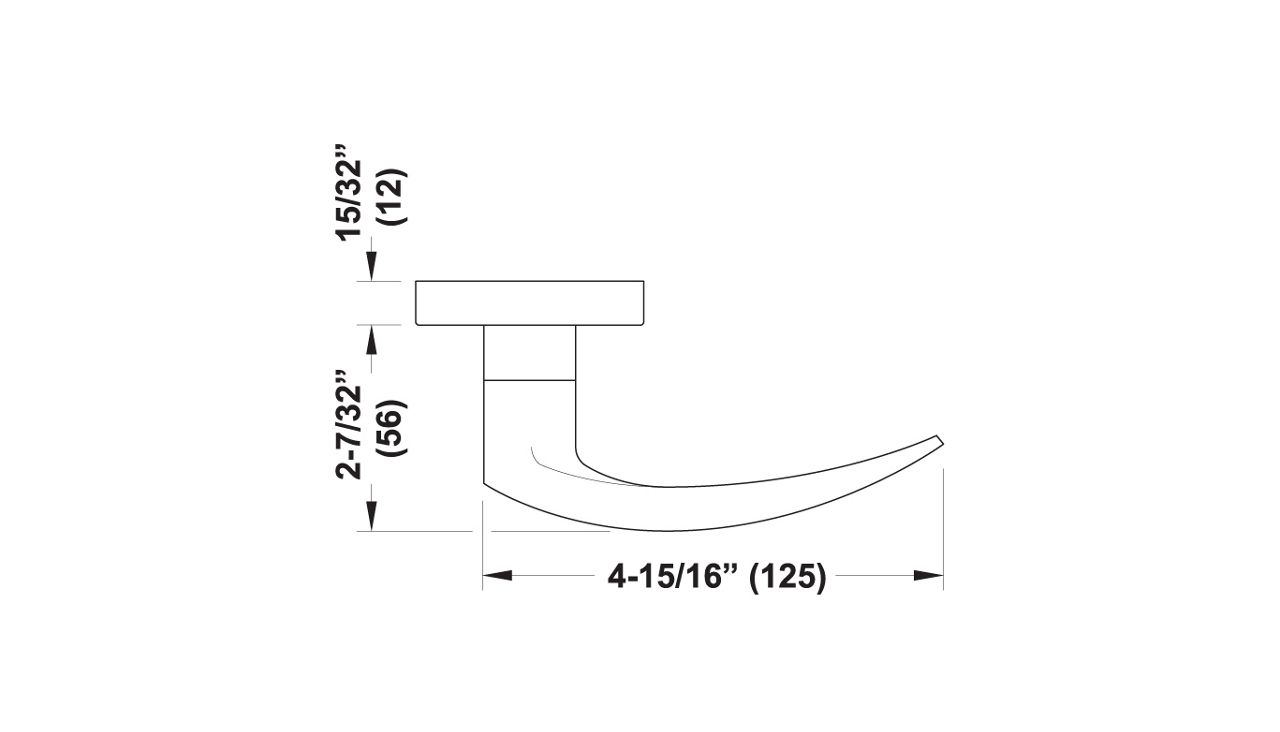

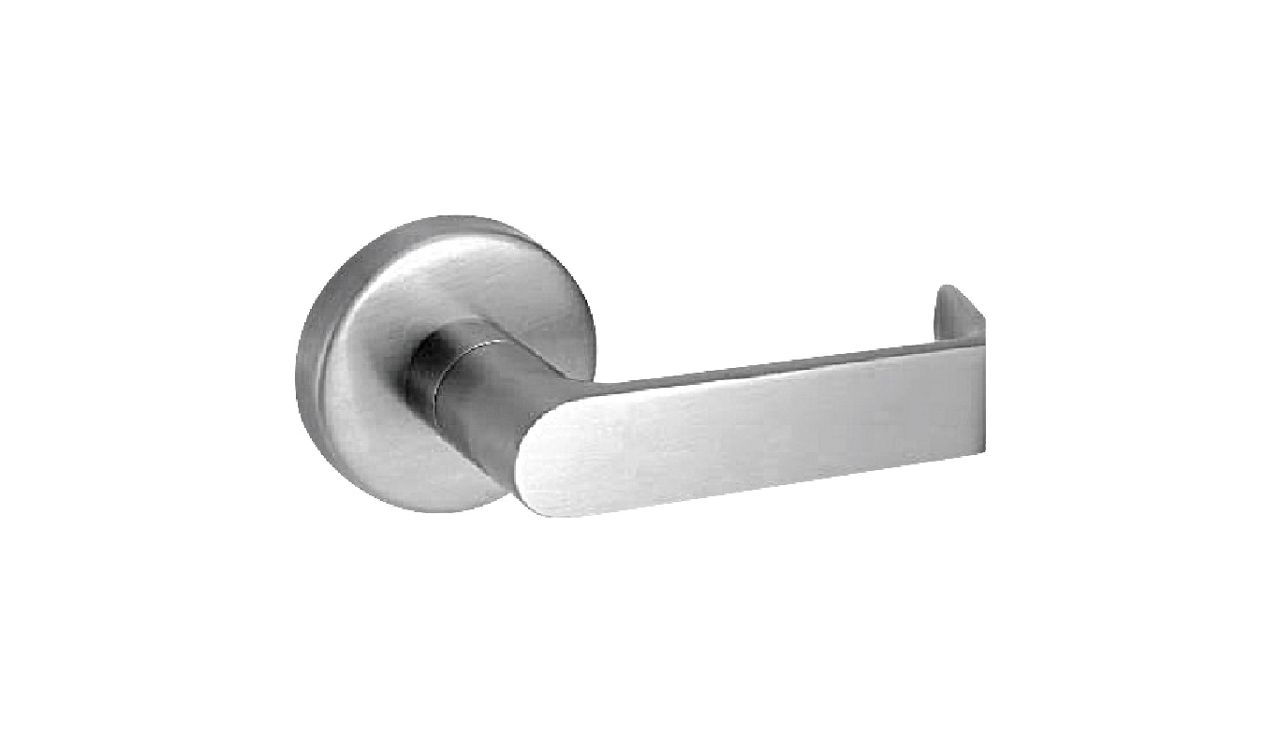

The AM 1000 series Grade 1 heavy-duty mortise locksets are suitable for all applications where ANSI/BHMA A156.13 Grade 1 products are required. These versatile locks are available in a range of lever trim designs and deadbolts in ANSI/BHMA functions. AM1000 series locksets delivers high performance at an affordable price in your apartments, offices, schools and other commercial projects. These locksets are designed and constructed with high quality component to provide maximum security, performance and durability.

Features:

AM 1000 series mortise locksets provide a wide variety of functions available with the most popular finishes
Fast and easy installation with select components are manufactured with high strength steel or stainless steel
Trims utilize 8mm (5/16”) high strength alloy steel spindles for extra durability
Lock case is non-handed, reversible without opening the lock case and is constructed with a screw configuration that limits access to operating parts
All trims are forged brass and stainless steel
Available with Electrical function.

Specification:

Door thickness : 44mm standard, 35mm to 64mm optional. Over 64mm door thick are available on request. Specify door thickness if other than 44mm
Backset: 70mm
Armored front : 32mm x 203mm x 2mm
Case Size: 111mm x 150mm x 23mm
Handing: Field reversible
Bolts: 25mm throw stainless steel dead bolt & 19mm throw stainless steel latch with anti-friction tounge
Strike : ANSI curved lip strike 32mm x 124mm x 30mm lip to center with dust box as standard
Cylinder: All ANSI Cylinders are compatible. Please order ASSA ABLOY ANSI cylinder separately
Lead line option is available on request

Certification:

Exceeds standards for ANSI/BHMA A156.13 series 1000 with cycle test of 1,000,000. Grade1 operational, Grade1 Security
All AM1000 meets the requirement of ANSI A117.1 and ADA for barrier-free accessibility

Optinal Finishes:
