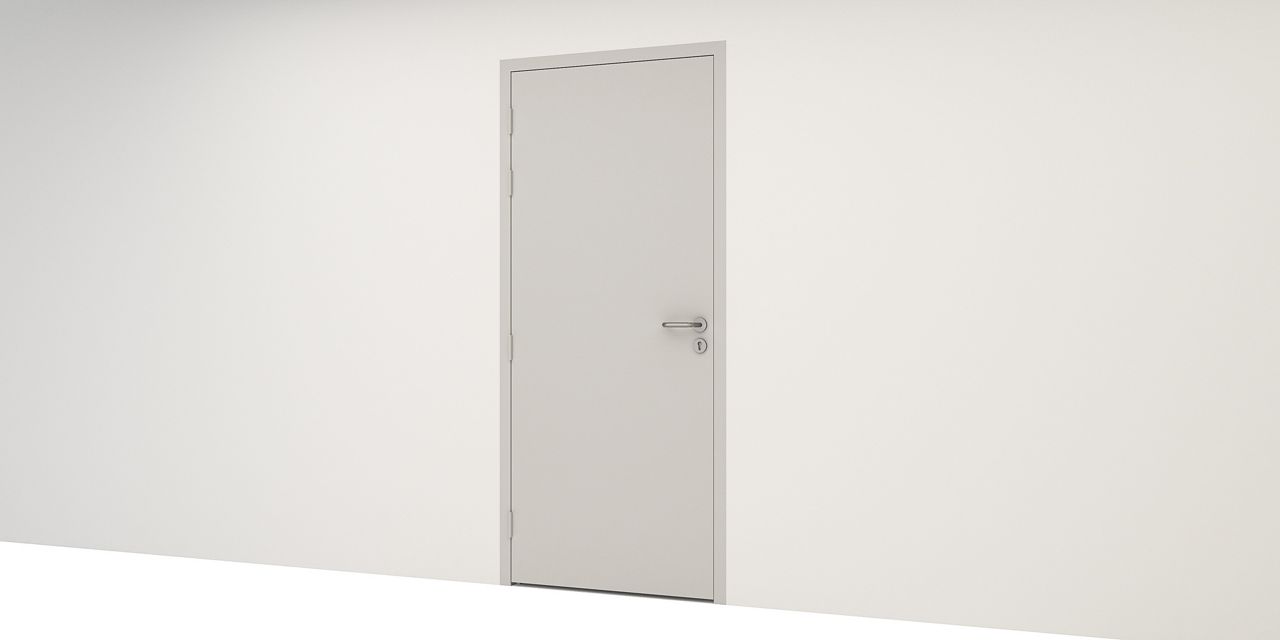

Steel Doorset Security-Single

ASSA ABLOY Opening Solutions Middle East Fire Rated Single Leaf doorset for security door application. Equipped with self-activating panic lock with or without multi-point lock, lever handle, master keyed cylinder and Cam-Motion door closer.

1 of 3

Characteristics

Full range of sizes
Single leaf
Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
Hollow metal steel door powder-coated in any colour from the RAL palette
Door Frame Corner construction: Welded

Performance

Certifire approval
Increased finish performance for corrosion, high impact
Acoustic rating available in Flushed Door up to STC35dB and up to STC50dB
Usage: Internal and External (Rockwool)

Safety

Fire rating up to FD120
Finger guard option

Sustainability

Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), upto 0.625W/m2k Rockwool
Manufactured under ISO 9001:2008 certification

Hardware Set:

Ball Bearing Butt Hinge with Dog bolt, Standard: BS EN 1935:2002. CE Marked.
Self-activating panic lock with multi-point lock, Standard BS EN179, BS EN1125, CE Marked. (EPD-ASA-20130279-IBC1-EN)
Lever Handle, standard: BS EN1906 Grade 3.
MKS Knob Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)

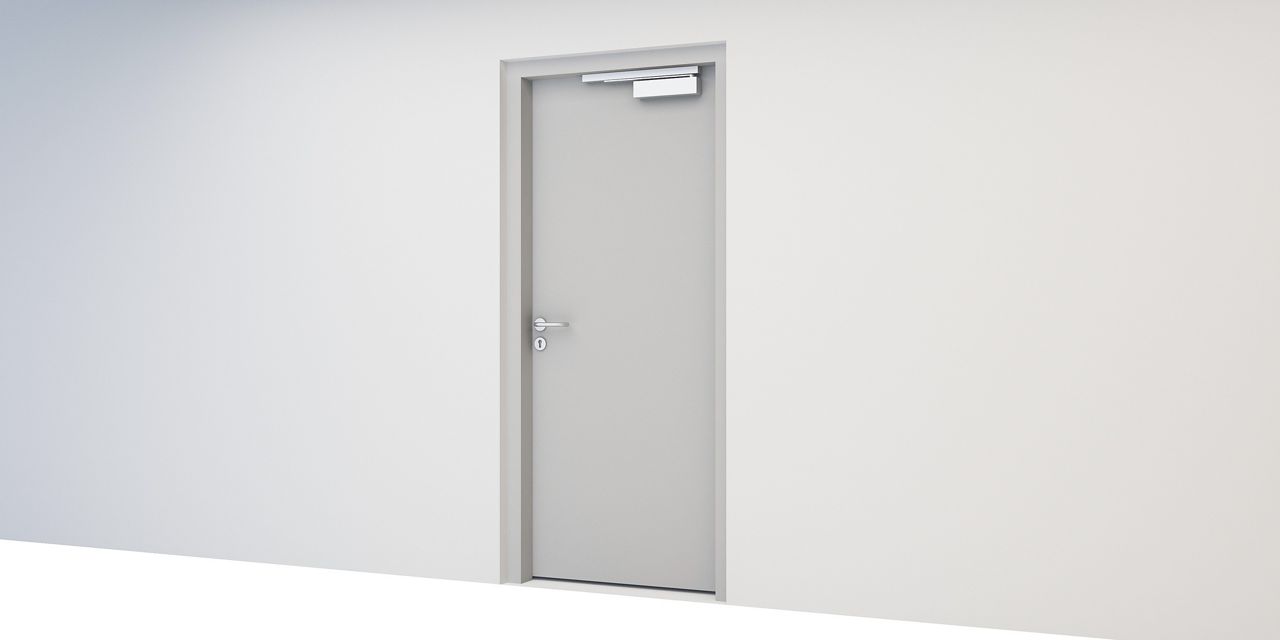

Door Closer Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20130275-IBC1-EN)
Floor mounted door stop.
Self-adhesive seal.

Typical applications: High security, vandal resistant application.

Compatible Standards: BS EN1935, BS EN1154, BS EN179, BS EN1906, BS EN 1303, BS EN14351-1, BS476 pt22, BS EN1634-1 .
