Steel Doorset Office Entrance- Single

Steel Doorset Office Entrance- Single

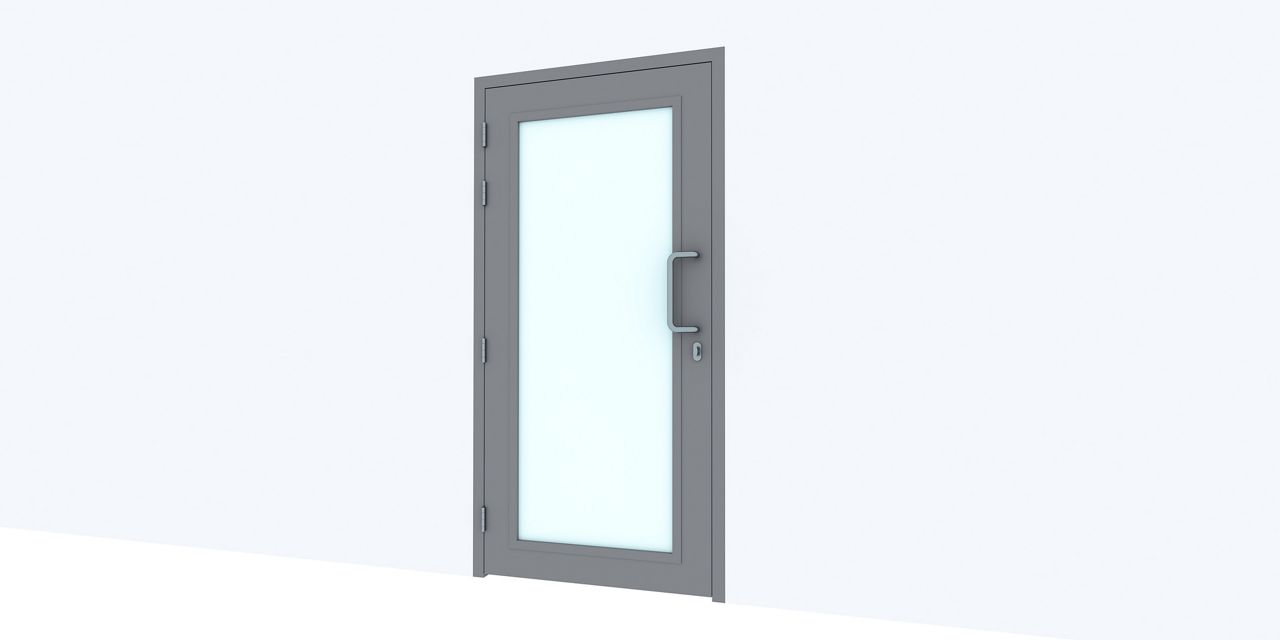

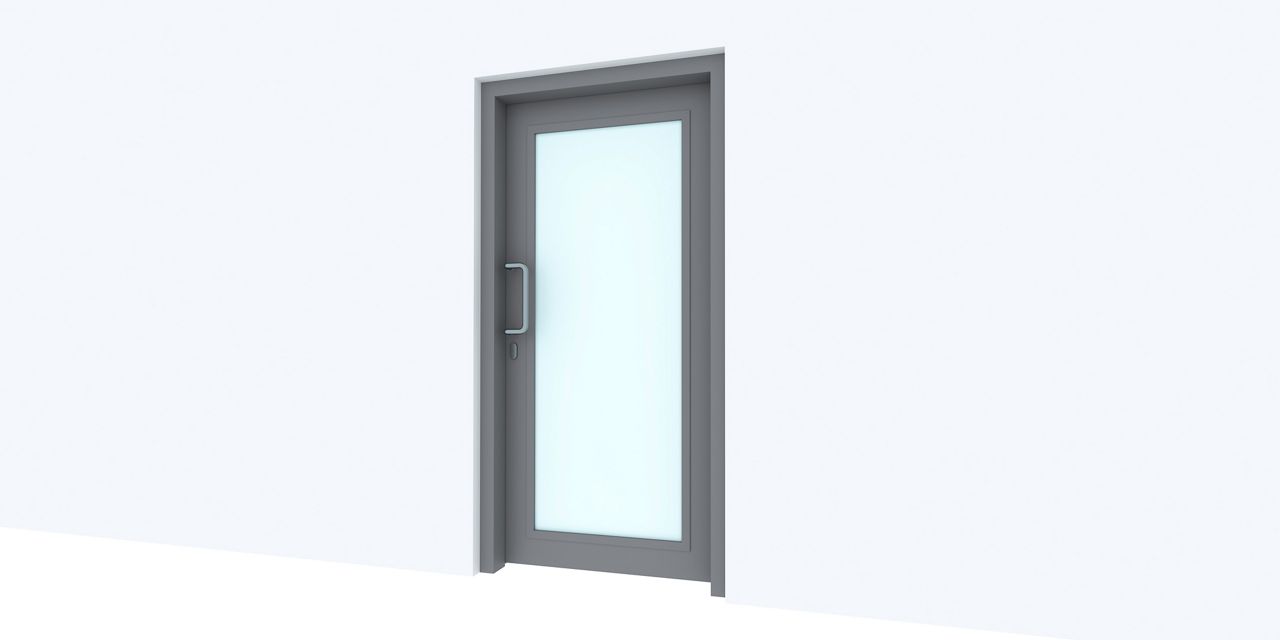

ASSA ABLOY Opening Solutions Middle East doorset for an Office Entrance with Non-fire rated single leaf steel frame Full glass door. Equipped with, mortice narrow stile roller latch lock, Pull handle and master keyed cylinder and Concealed door closer.


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Characteristics

  • Full range of sizes
  • Single leaf made of galvanised steel sheet / stainless steel to polyester powder coated finish.
  • Doorframes are made of galvanised steel sheet / stainless steel to polyester powder coated finish.
  • Door set powder-coated in any colour from the Standard Range RAL palette
  • Door Frame Corner construction: Welded or Knock down as per requirements.

Performance

  • Increased finish performance for corrosion
  • Usage: Internal (Honeycomb/Rockwool); External (Rockwool)

Sustainability

  • Manufactured under ISO 9001:2015 certification
  • Environmental Product Declaration (EPD) available for Honeycomb

Hardware Set:

  • Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
  • Mortice Lock case Roller Latch lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
  • Pull Handle, standard: BS EN8424 Grade 3.
  • Escutcheon
  • MKS Double Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
  • Concealed door closer Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150227-IBA1-EN )
  • Floor mounted doorstop.
  • Gasketing.

Typical applications: Commercial buildings, Hospitals, Schools and others.



Relevant Standards: BS 1245-2012, BS 476 Part 22, BS EN1935, BS EN1154, BS EN12209, BS EN8424, BS EN 1303.

  • Microsoft Word - 09-Datasheet_Steel Doorset Office Entrance Door- Single(PDF, 1 MB)
  • 06-Doorset_Office_Room_Entrance_ASSA_ABLOY_Hardware_2D_Light(RFA, 588 KB)
  • 06-Doorset_Office_Room_Entrance_ASSA_ABLOY_Hardware_3D(RFA, 1 MB)
