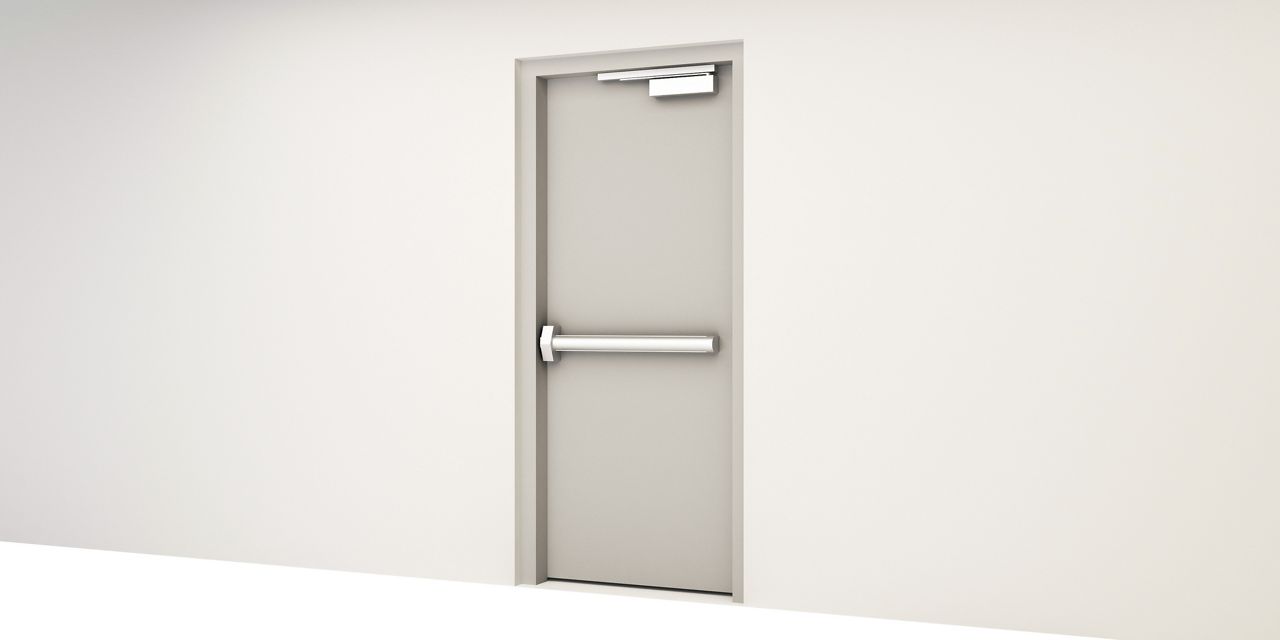

Steel Doorset Fire Exit - Single

Steel Doorset Fire Exit - Single

ASSA ABLOY Opening Solutions Middle East doorset for a fire rated escape route single leaf steel door. Equipped with fire rated panic exit device and door closer with Cam-Motion® technology.


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Characteristics

  • Full range of sizes
  • Single leaf
  • Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
  • Hollow metal steel door powder-coated in any colour from the RAL palette
  • Door Frame Corner construction: Welded or Knock down

Performance

  • Certifire approval
  • Increased finish performance for corrosion and high impact
  • Acoustic rating available up to 38dB (Honeycomb) and up to 50dB (Rockwool)
  • Usage: Internal (Honeycomb); Internal and External (Rockwool)

Safety

  • Fire rating up to FD240
  • Finger guard option

Sustainability

  • Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), upto 0.625W/m2k Rockwool
  • Manufactured under ISO 9001:2008 certification
  • Environmental Product Declaration (EPD) available for Honeycomb version

Hardware Set:

  • Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
  • Panic Touch Bar, Standard: BS EN 1125:2008, BS EN 1634. CE Marked. (EPD-ASA-20150160-IBA1-EN)
  • Outside Access Device with European Cylinder Hole, Lever outside
  • Half cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
  • Door Closer Cam-Motion, Standard:  BS EN 1154. CE Marked. (EPD-ASA-20130275-IBC1-EN)
  • Floor mounted door stop.
  • Self-adhesive seal.

Typical applications: Education, Nursery School, Kindergarten, School, Health Care, Residential, Commercial, stair and others.



Compatible Standards: BS EN1935, BS EN1154, BS EN1125, BS EN 1303, BS EN14351-1, BS476 pt22, BS EN1634-1.

  • 5.Datasheet_Steel_Doorset,_Fire_Exit-Single(PDF, 167 KB)
  • 5.Doorset_Fire_exit_door_w_Panic_Exit_Device_ASSA_ABLOY_Hardware_2D_Light(RFA, 616 KB)
  • 5.Doorset_Fire_exit_door_w_Panic_Exit_Device_ASSA_ABLOY_Hardware_3D(RFA, 1 MB)
