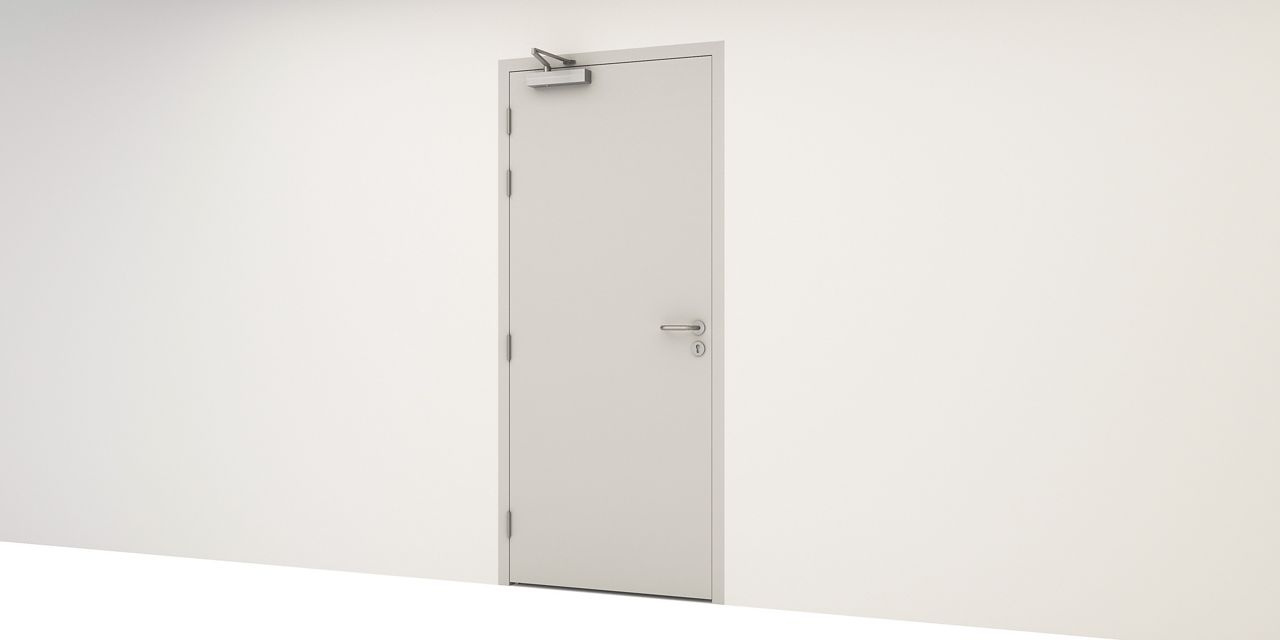

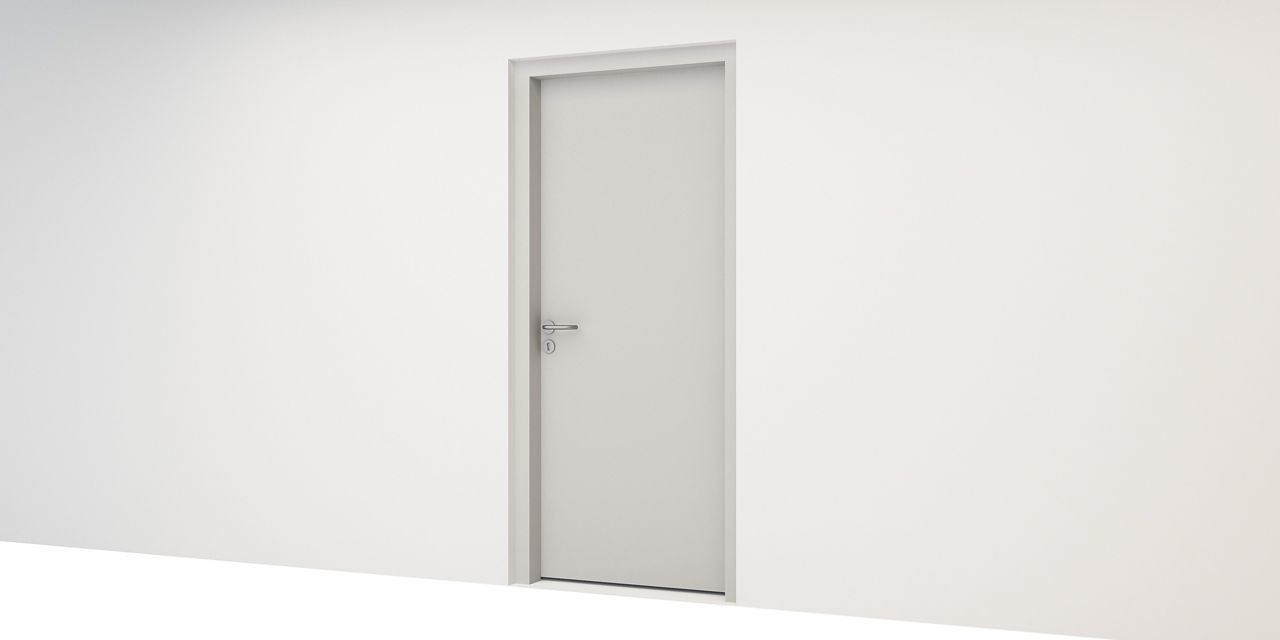

Steel Doorset Electrical Room LV-Single

Characteristics

• Full range of sizes
• Single leaf
• Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Hollow metal steel door powder-coated in any colour from the RAL palette
• With Fire-Rated Bottom Louver
• Door Frame Corner construction: Welded or Knock down

Performance

• Certifire approval
• Increased finish performance for corrosion,  and high impact
• Acoustic rating available in Flushed Door up to STC38dB (Honeycomb) and up to STC50dB (Rockwool)
• Usage: Internal (Honeycomb); Internal and External (Rockwool)

Safety

• Fire rating up to FD240
• Finger guard option

Sustainability

• Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), upto 0.625W/m2k Rockwool
• Manufactured under ISO 9001:2008 certification
• Environmental Product Declaration (EPD) available for Honeycomb version without Louver

Hardware Set:

• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
• Mortice Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
• Lever Handle, standard: BS EN1906 Grade 3.
• MKS Knob Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
• Door Closer Rack & Pinion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150278-IAB1-EN)
• Floor mounted door stop.
• Self-adhesive seal.

Typical applications: Back of house areas of residential, commercial buildings, hospitals, schools, hotels, and others.

Compatible Standards: BS EN1935, BS EN1154, BS EN 12209, BS EN 1906, BS EN 1303, BS EN14351-1, BS476 pt22, BS EN1634-1
