    • Sargent 80 Series
    • Surface Vertical Rod Exit Devices

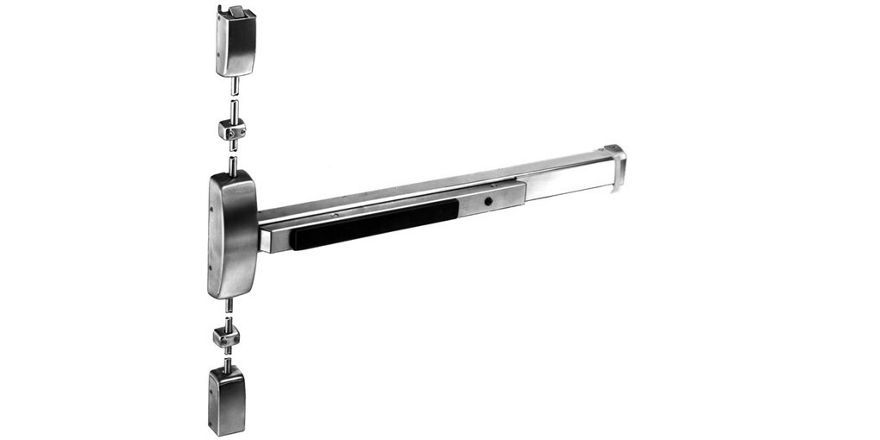

    8700 Series

    The 8700 Series offers two point latching with vertical rods mounted to the surface of the door face.  It provides a top and bottom latch which can be adjusted via the center case. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series can be used for single and double door applications and is available with hurricane and windstorm resistance certifications.

    Function   Description
    06
    • Key Unlocks Trim
    • Trim Retracts Latch/Trim relocks when key is removed
    • #41 Cylinder Supplied
    10
    • No Outside Operation (No Cylinder)
    10
    • No Outside Operation (No Cylinder)
    • ET Control is used as Pull Only
    13
    • Key Outside Unlocks/Locks Trim
    • #41 Cylinder Supplied
    15
    • Passage Only (No Cylinder)
    28
    • Passenger Only (No Cylinder)
    40
    • Freewheeling Trim
    • No Outside Operation (No Cylinder) Dummy Trim
    43
    • Freewheeling Trim
    • Key Outside Unlocks, Locks Trim
    46
    • Freewheeling Trim
    • Key Unlocks Trim
    • Trim Retracts Latch/Relocks When Key Is Removed
    62
    • Key Unlocks Trim
    • Trim Retracts Latch/Trim Relocks When Key Is Removed
    63
    • Key Outside Unlocks/Locks Trim
    70
    • Electrified Mortise Lock
    • Power Off, Unlocks Thumb Piece
    • Key Retracts Latch
    73
    • Electrified ET Trim
    • Fail Safe
    • Power Off, Unlocks Lever (No Cylinder)
    74
    • Electrified ET Trim
    • Fail Secure
    • Power Off, Locks Lever (No Cylinder)
