Incedo Cluster Controller

The hardware heart of your Incedo access control system manages doors secured by hardwired readers or wireless locking devices with inbuilt RFID capability.

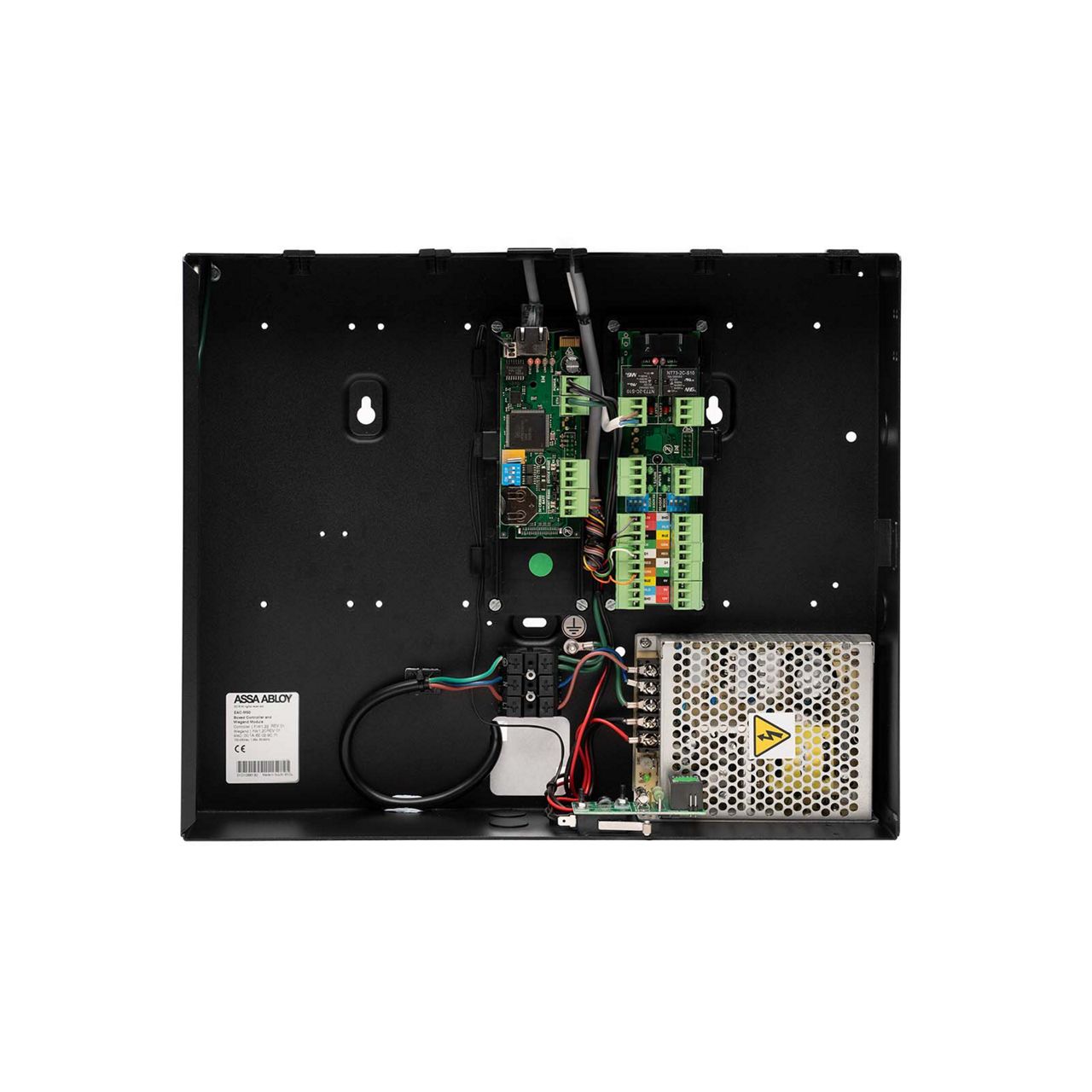

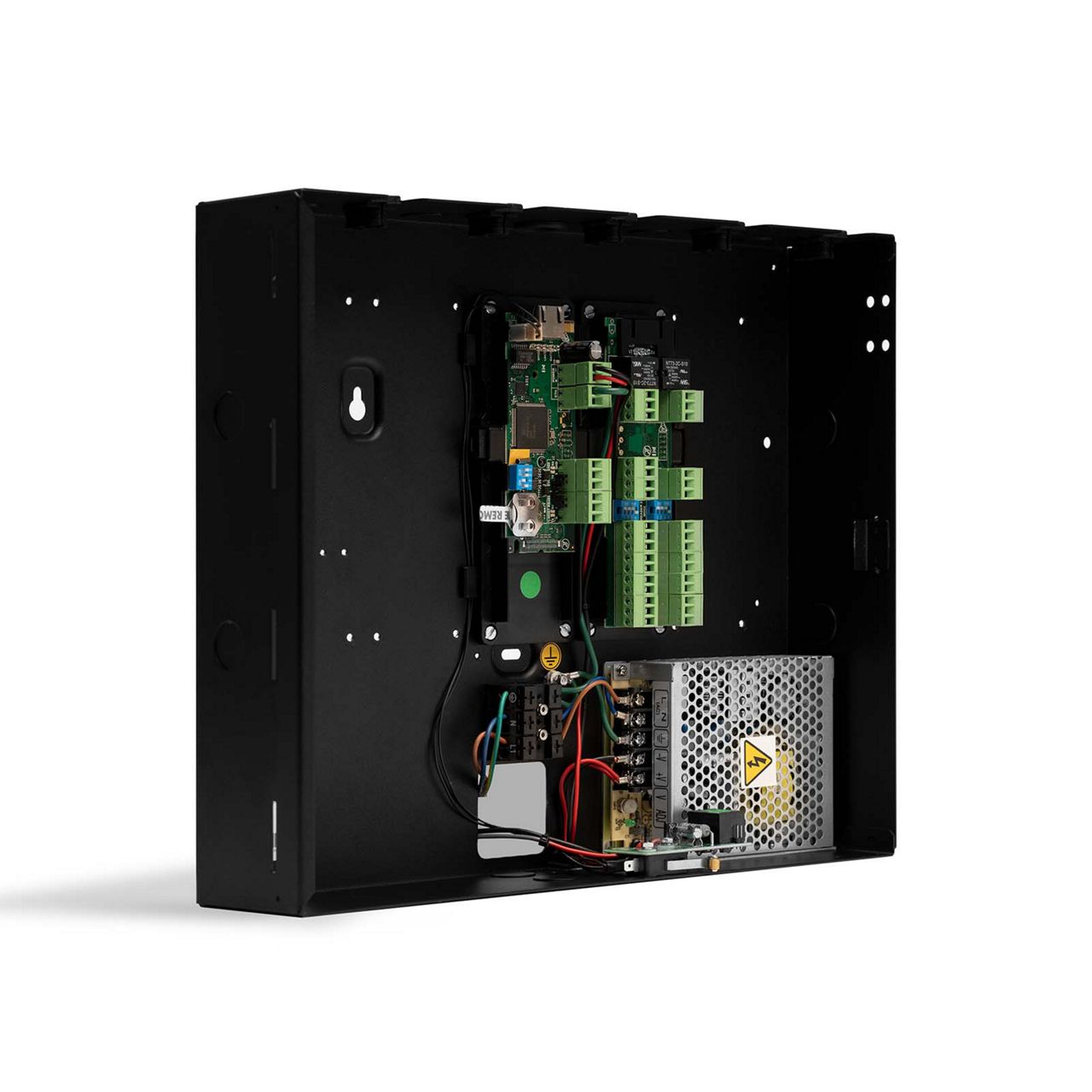

Cluster Controllers keep your ASSA ABLOY Incedo system running at maximum efficiency. They enable fast communication between Incedo software and your readers, hubs and wireless locking devices. A controller handles up to 32 wireless doors.

The Cluster Controller’s inbuilt TCP/IP port lets you manage an Incedo system from any standard browser or in the Cloud, depending on the software management configuration you select.

Dedicated RS485 ports manage cluster controllers and hubs for communicating with either wired or wireless door locks. Up to 4 Door Reader Modules (managing up to 8 wired door readers) can connect with an Incedo Cluster Controller. Status LEDs provide visual engineering feedback.

Dedicated RS485 ports manage cluster controllers and hubs for communicating with Aperio wireless locks. Up to 8 Door Reader modules can connect with an Incedo Cluster Controller module.

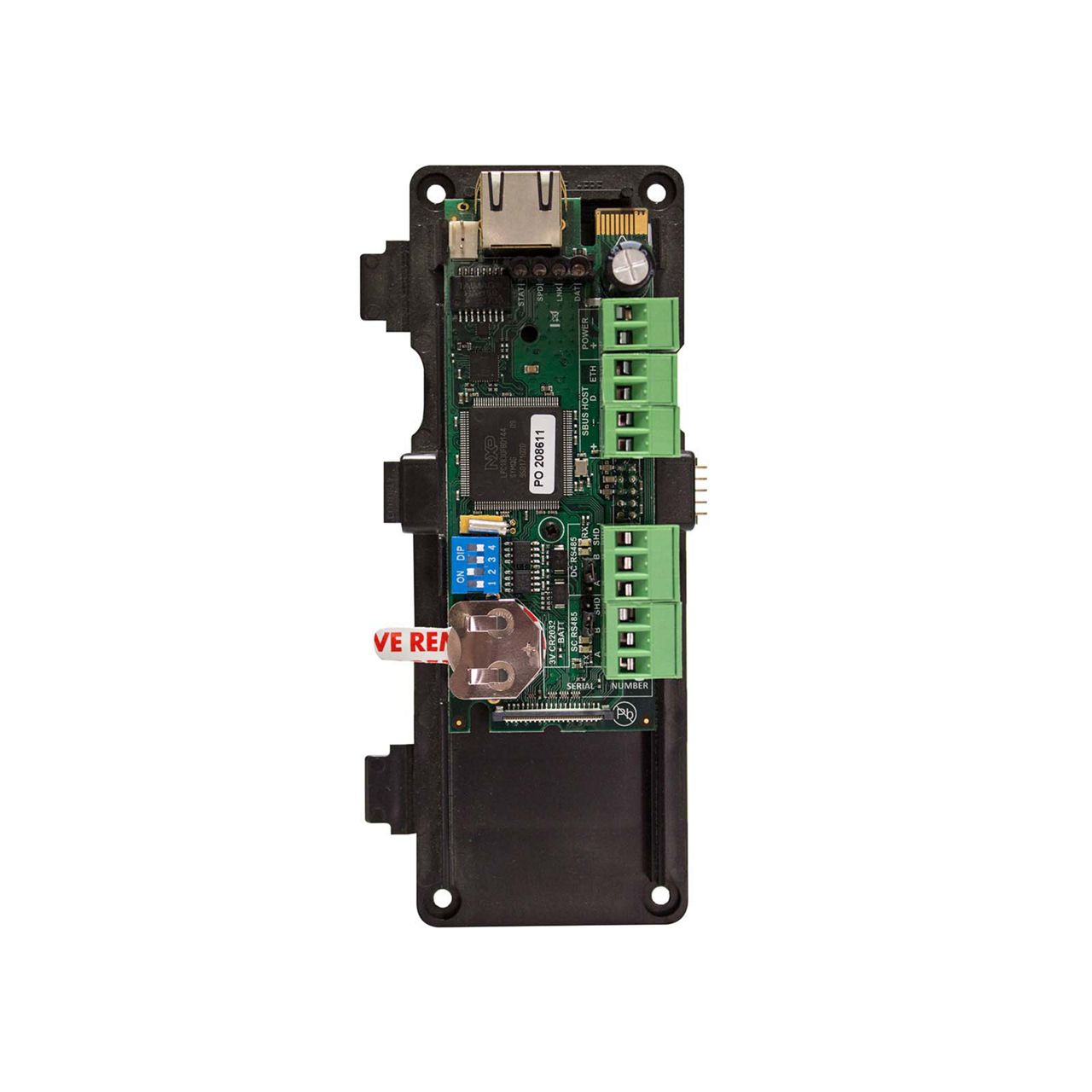

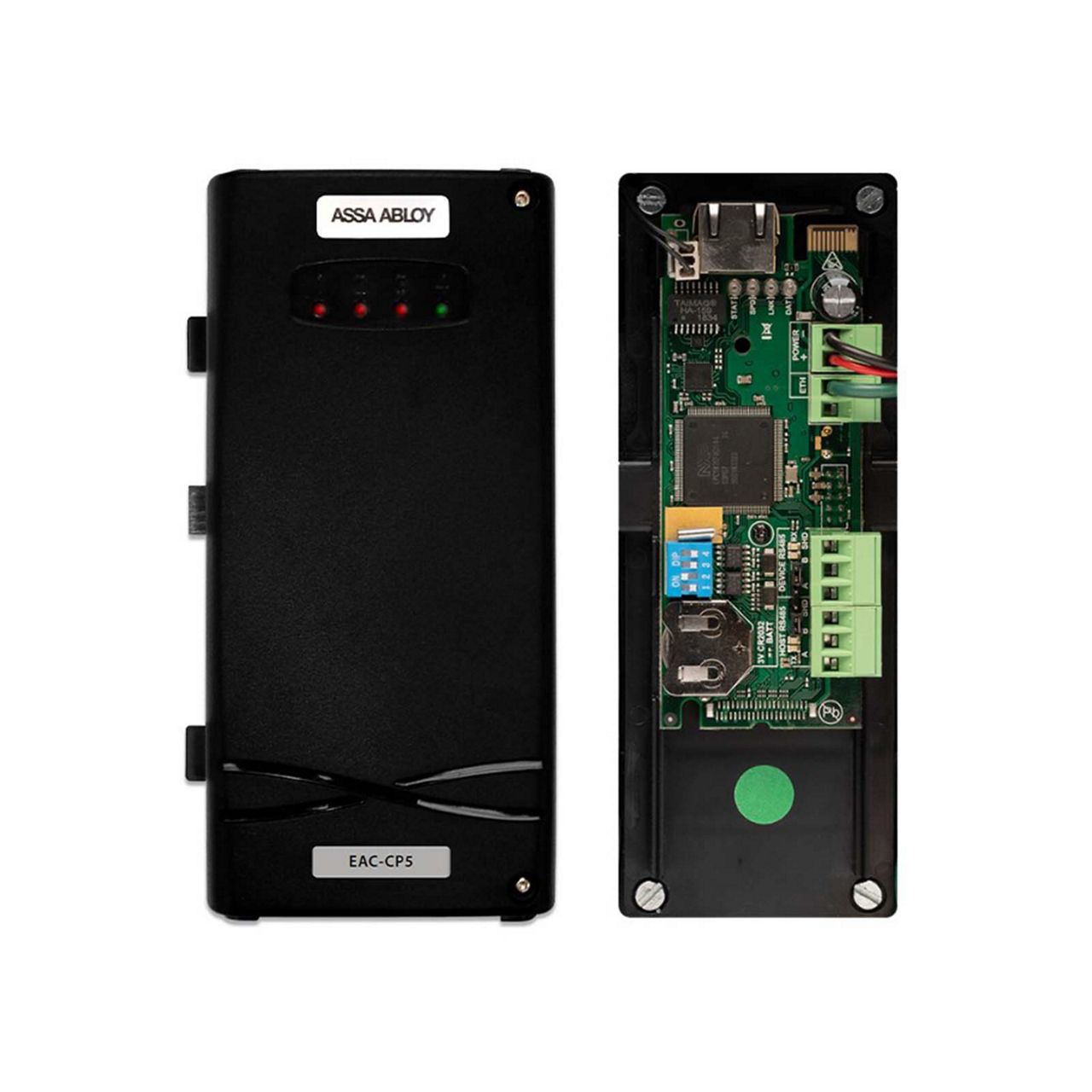

The Cluster Controller and Door Reader Module are core elements in your Incedo ecosystem. Both are also available in plastic housing variants.

More controller device options will launch in due course.
