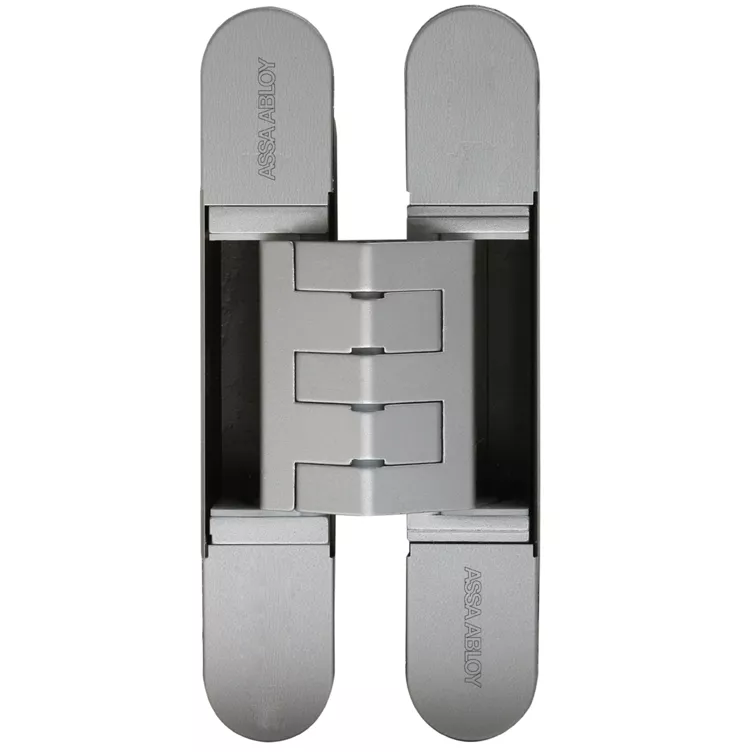

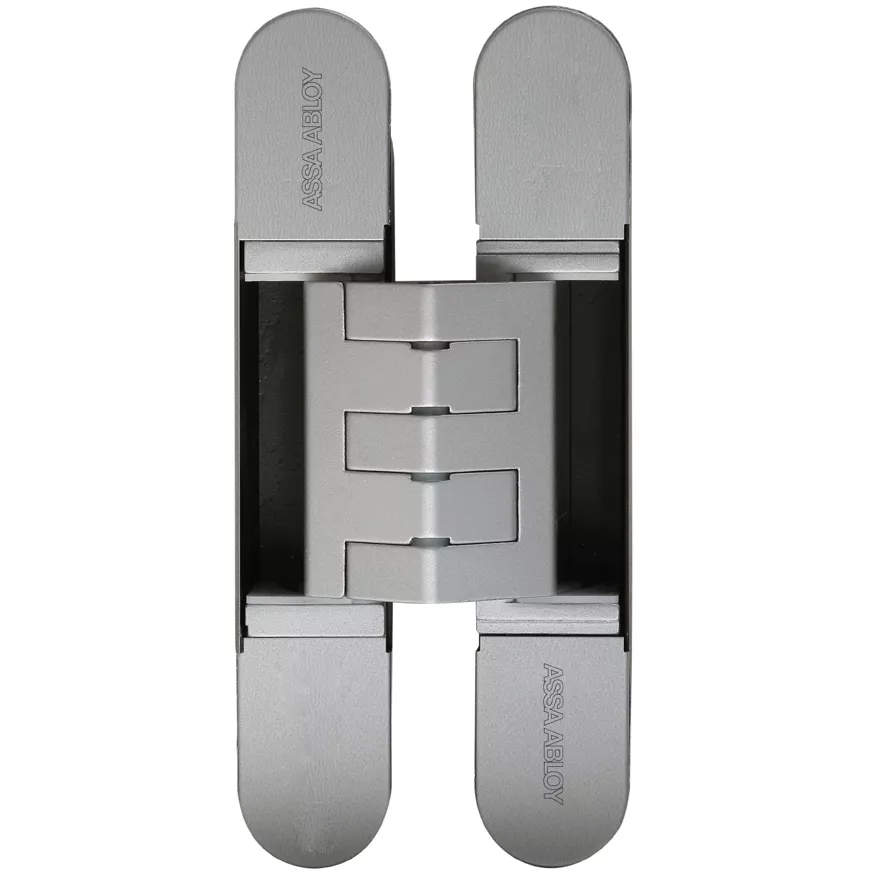

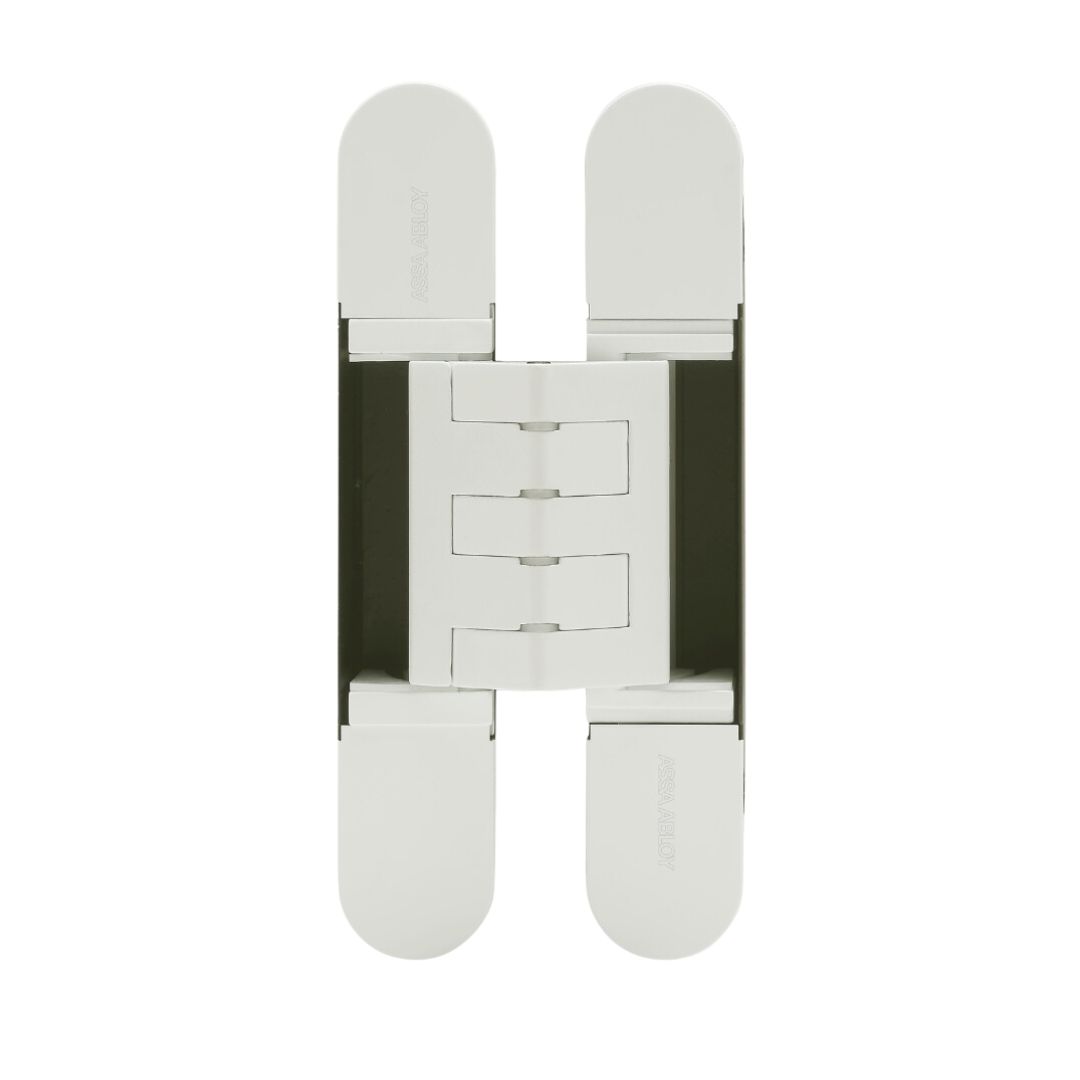

Invisible adjustable hinges for doors. Patented Model mm.180x32
AAH803 Hinge is meticulously engineered to meet the demands of modern architecture. With its elegant design and robust construction, it's perfect for heavy doors or full-height flush doors.
- Now available in White painted
- Engineered for heavy doors and suitable for doors of 38 mm min. thickness

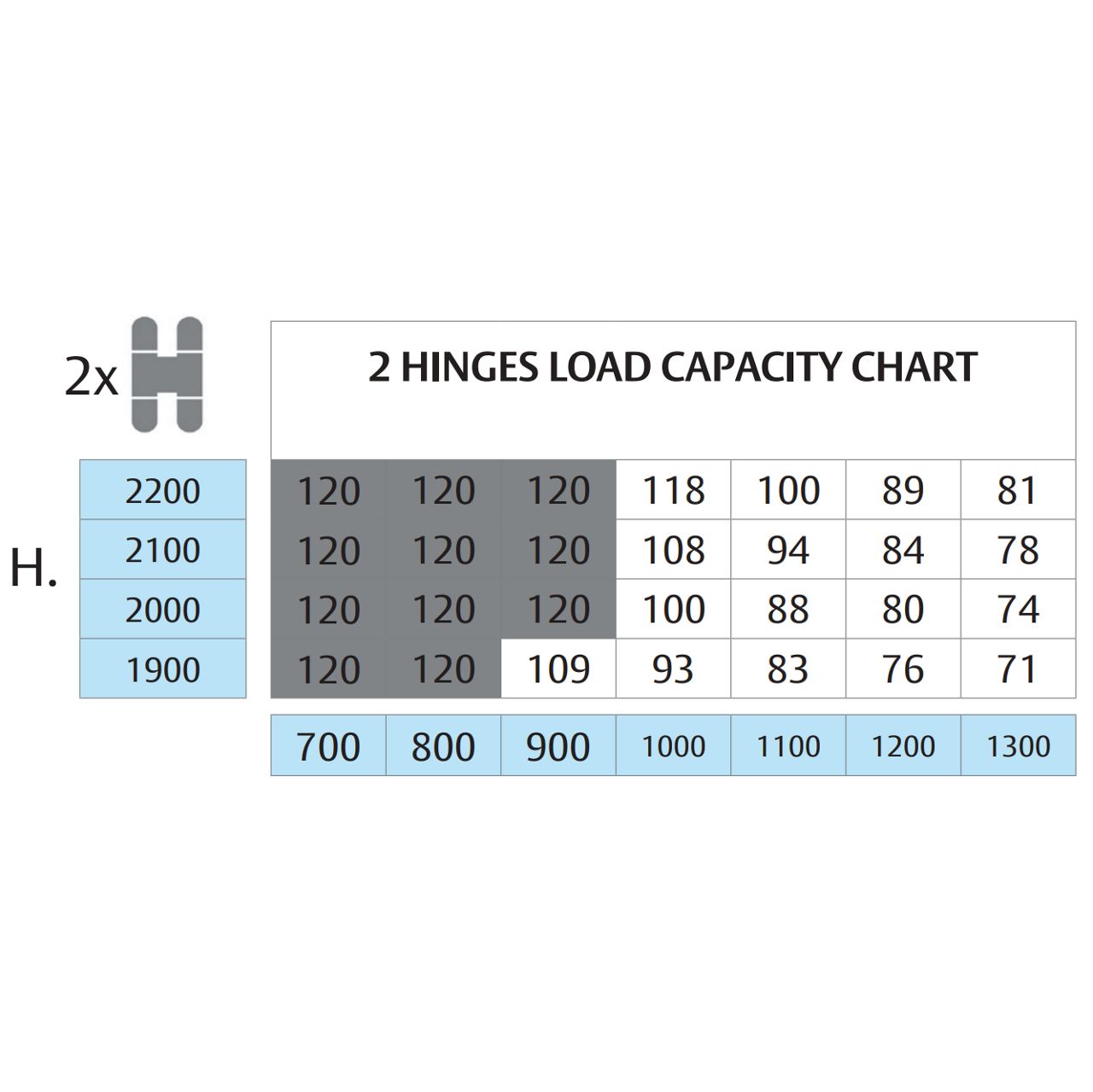

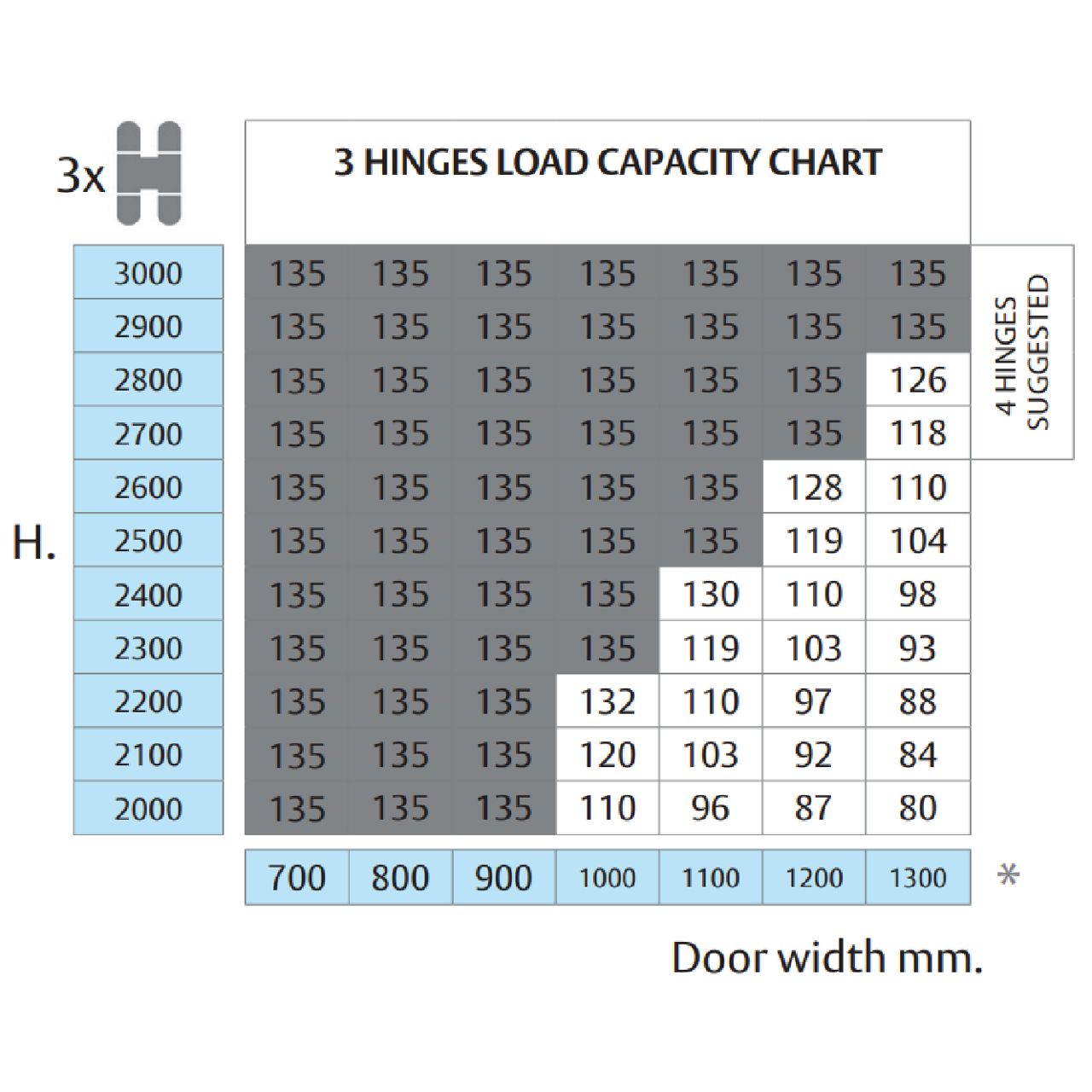

- Weight capacity up to 135 kg and 1.000 mm wide panels

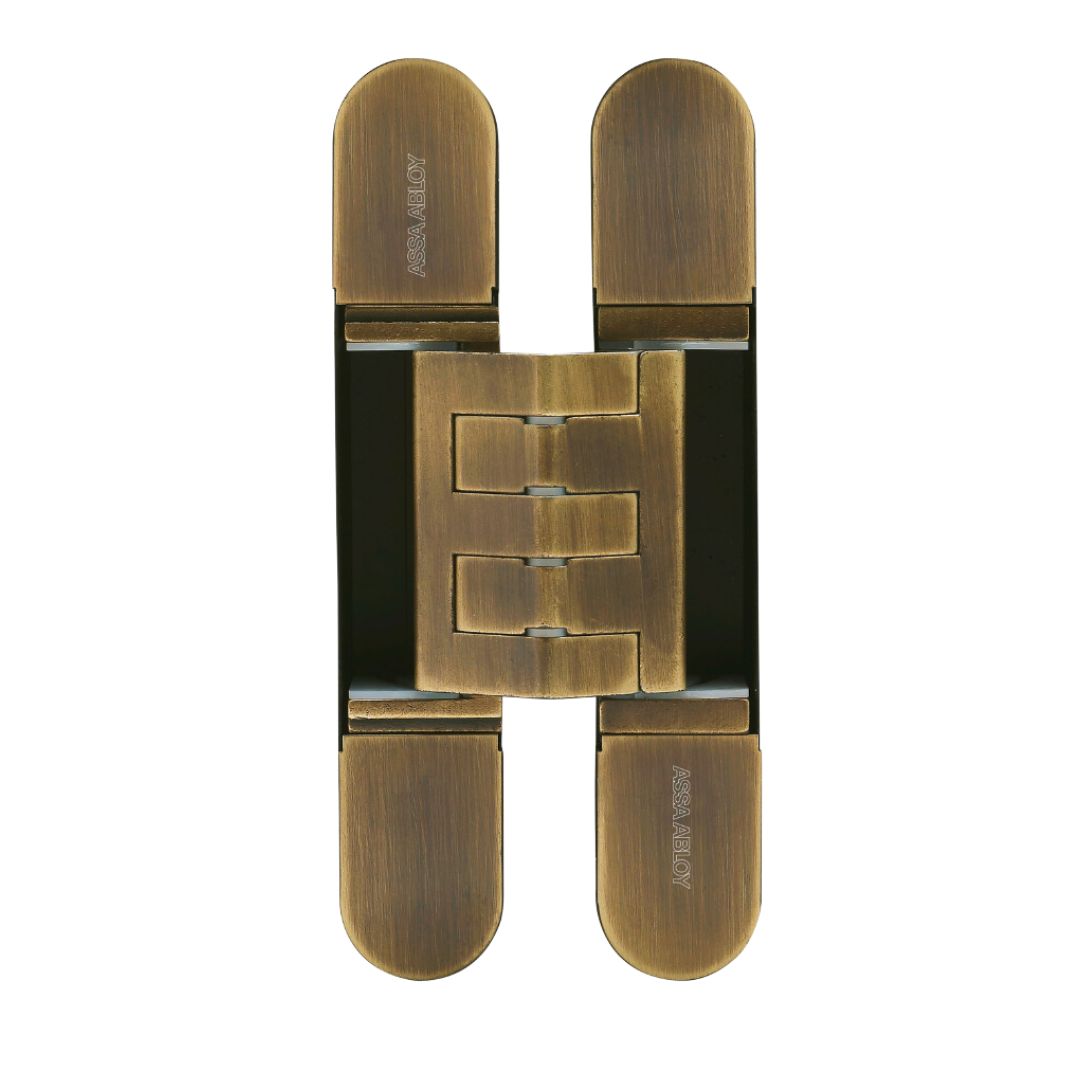

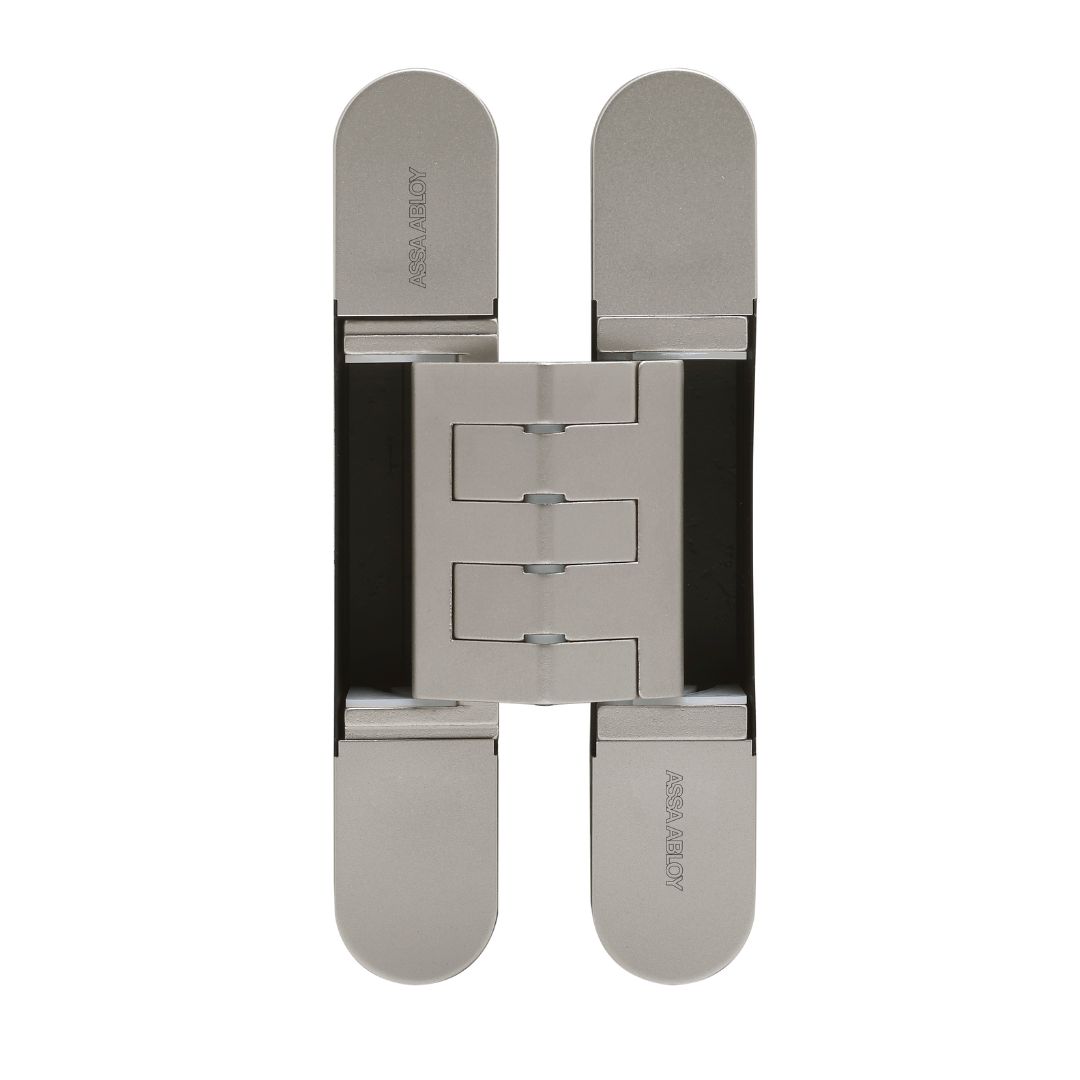

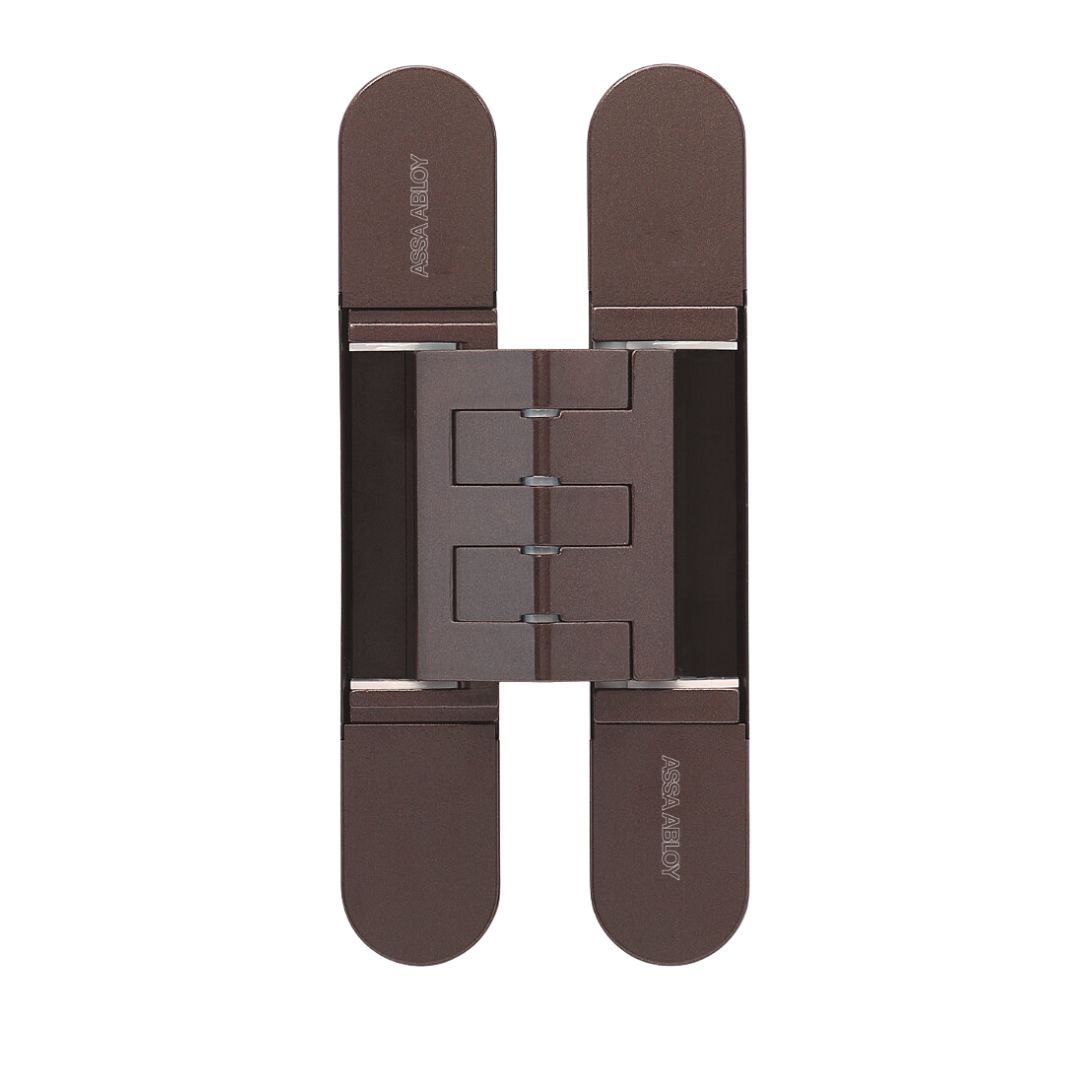

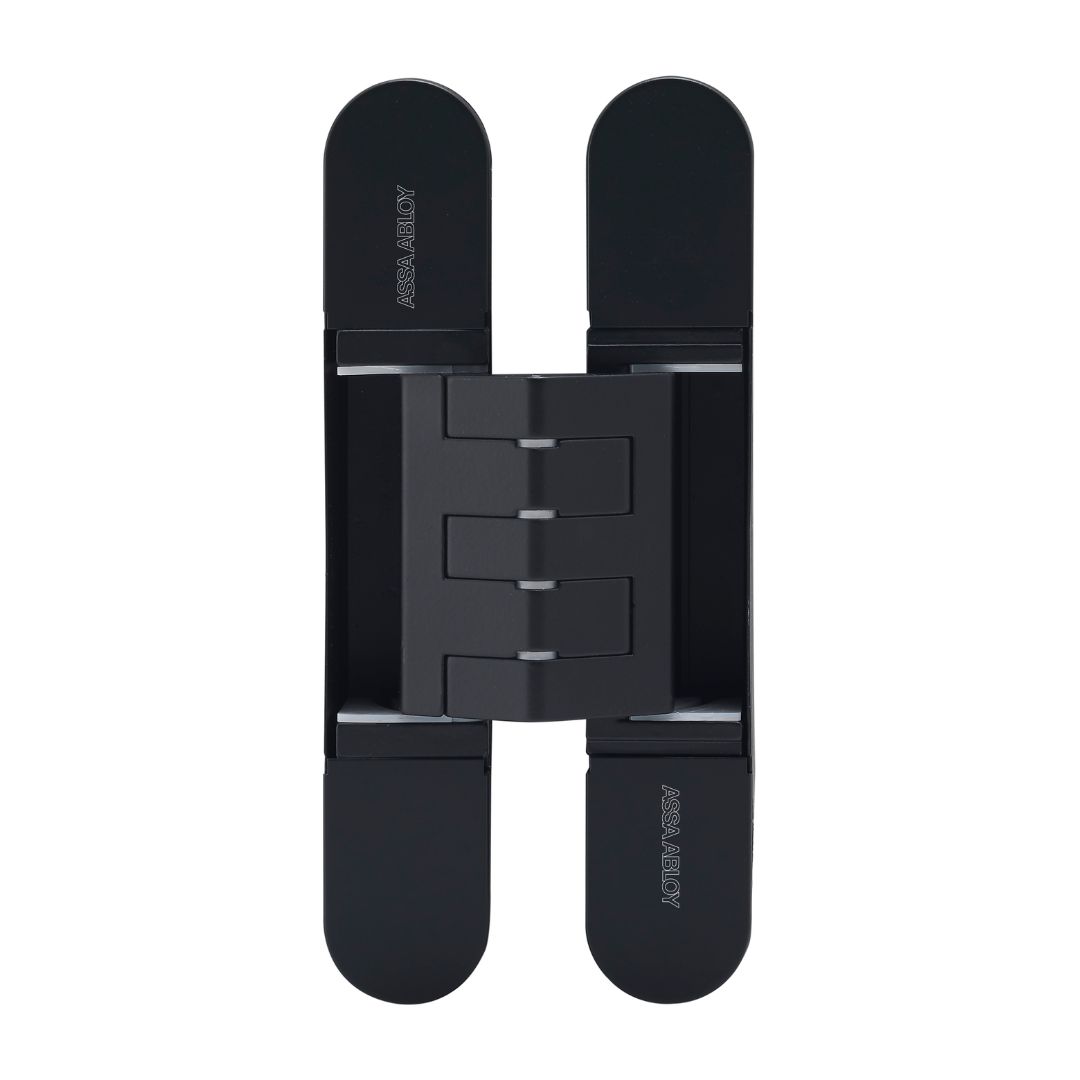

- Manufactured in zamak in 12 different finishes
- Fluid sliding mechanism and 3D adjustable
- Simmetric and only 29 mm deep
- Milling cut up to 6,5 mm from the internal edge
- Easy installation
