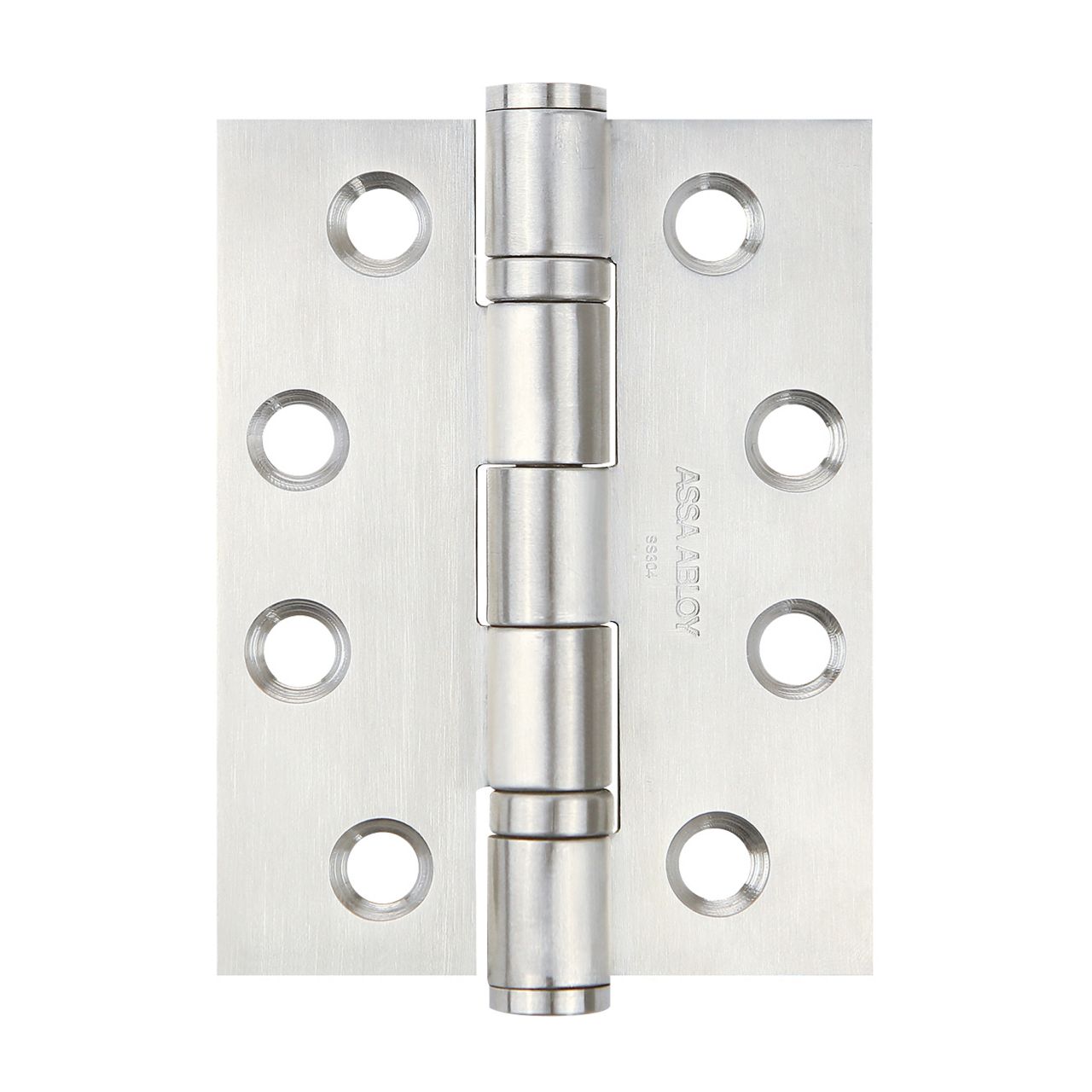

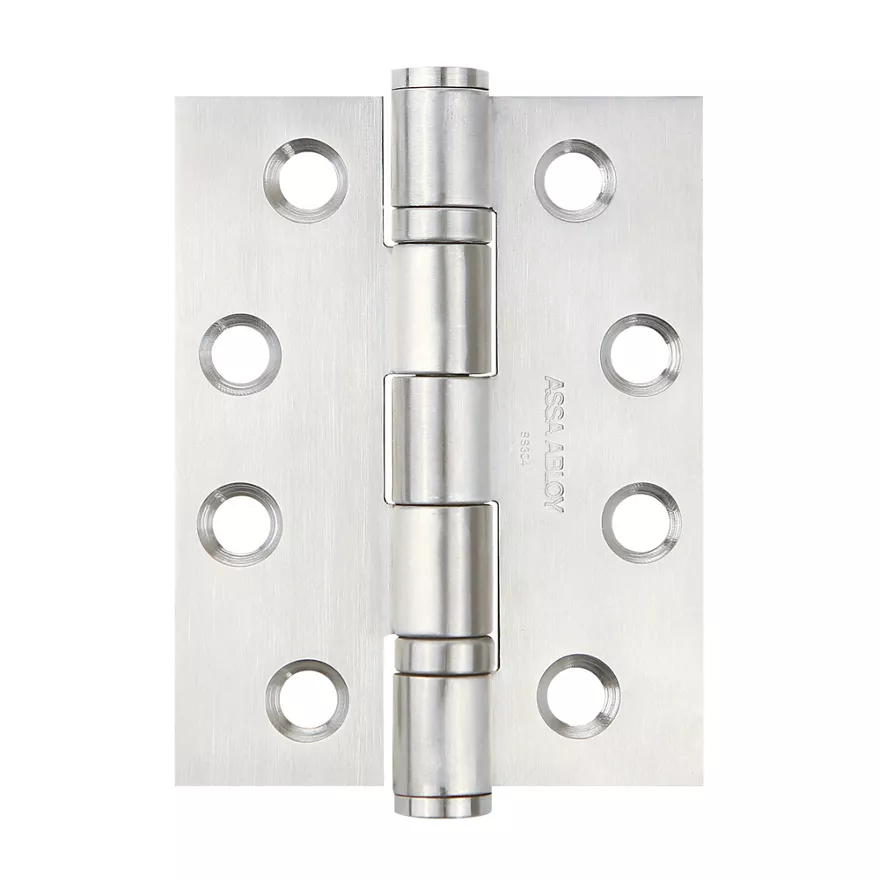

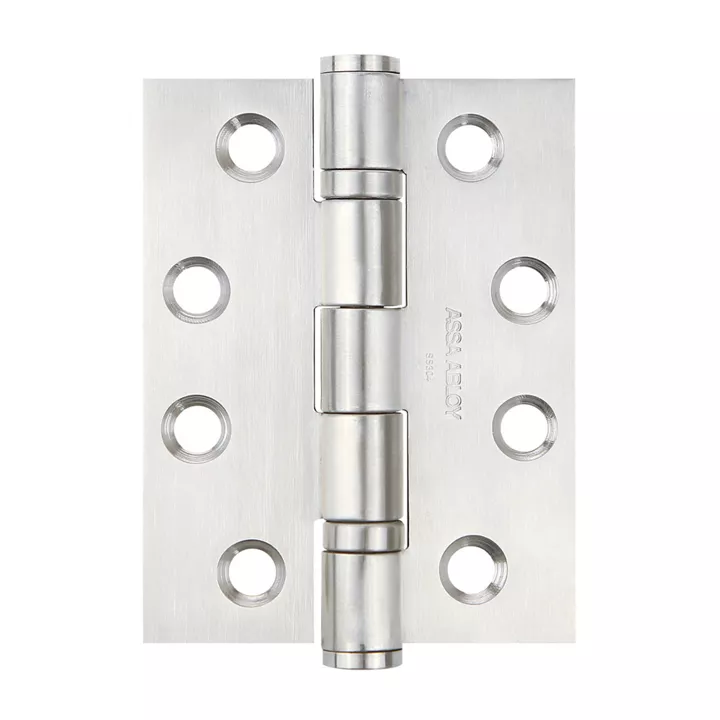

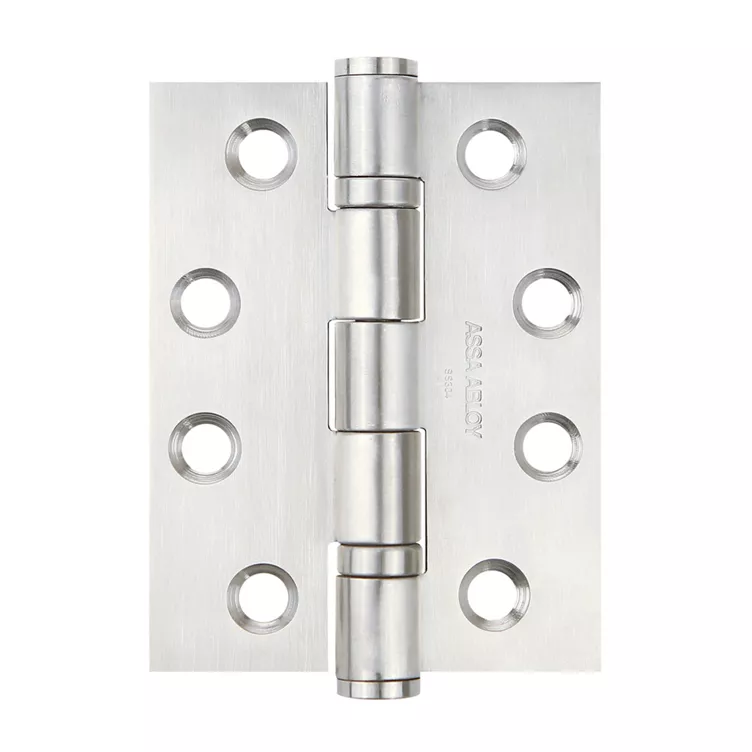

Ball Bearing

Engineered for high-performance and heavy-duty applications, this ball bearing butt hinge is ideal for doors subject to frequent use, high traffic, or intentional abuse—such as in commercial buildings, public facilities, or secure environments.

Product Description:

  • Precision ball bearing race for smoother operation and extended hinge life
  • Durable 304 stainless steel for enhanced corrosion resistance
  • Optional Grade 316 stainless steel for superior corrosion protection in harsh or coastal environments (available upon request)
  • Square corners for a clean architectural finish
  • Fixing pattern options: template or congruent (zigzag) — please specify when ordering
  • Mounting options: timber (W) or metal (M) door fixings — please specify when ordering
  • Optional dog bolt (D) for enhanced hinge security
  • 2 ball bearing design ensures consistent, smooth door operation

Finish:

  •  Satin Stainless Steel - modern, clean, and corrosion-resistant

Performance & Certification:

  • Tested to EN 1935:2002
  • Grade 13 hinge
  • Successfully cycle-tested to 200,000 cycles on 120 kg doors
