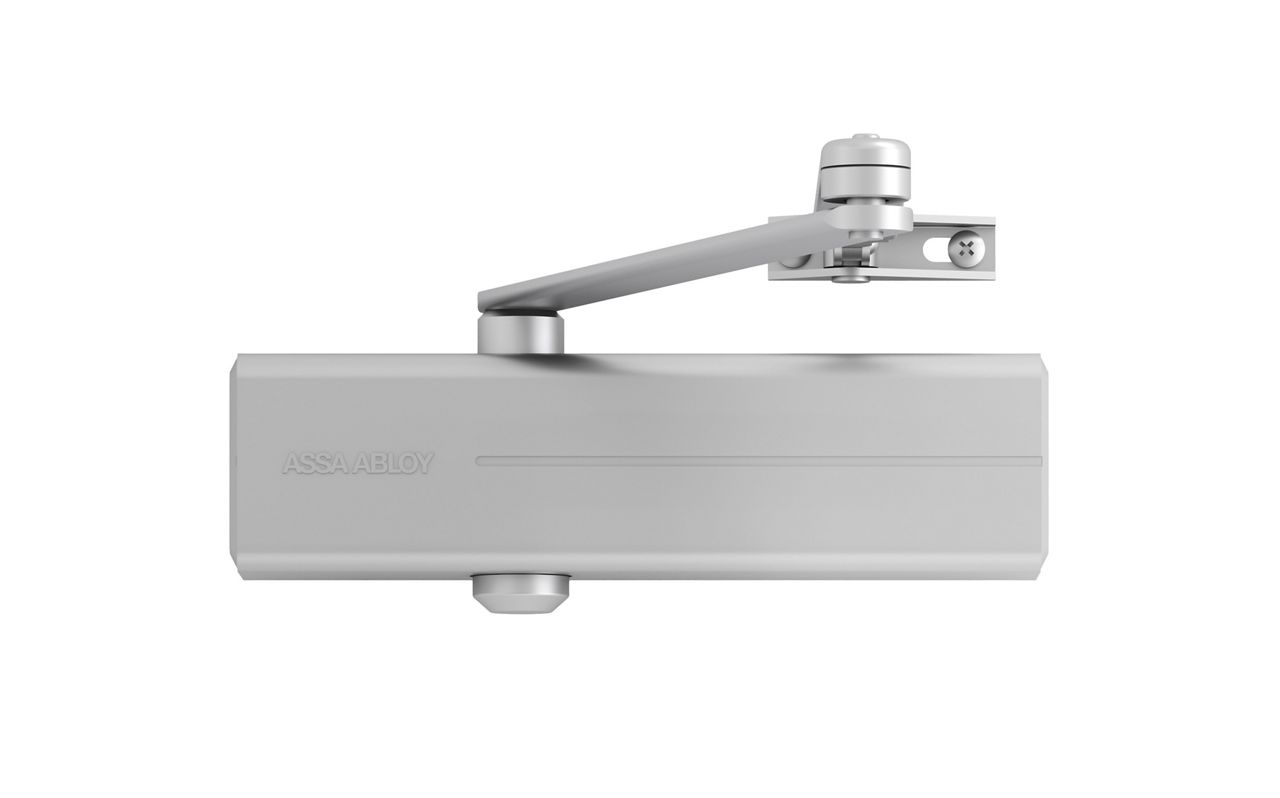

DC140 - Surface Mounted
Rack and pinion door closer with link arm
Description:
- Rack and Pinion door closer with link arm
- In compliance with EN1154, size EN2/3/4/5
- For single action doors up to 1250mm wide
Characteristics:
- Can be used for left and right-handed doors
- Suitable for fire and smoke protection doors
- Closing speed, latching speed and back-check adjustable via front facing regulating valves
- Thermodynamic valves for consistent performance
- Closing force configurable
- Opening angle up to 180°
- Standard colours: Silver EV1; White, similar to RAL9016; Brown , similar to RAL8014; Black, similar to RAL9005
Finish options
-

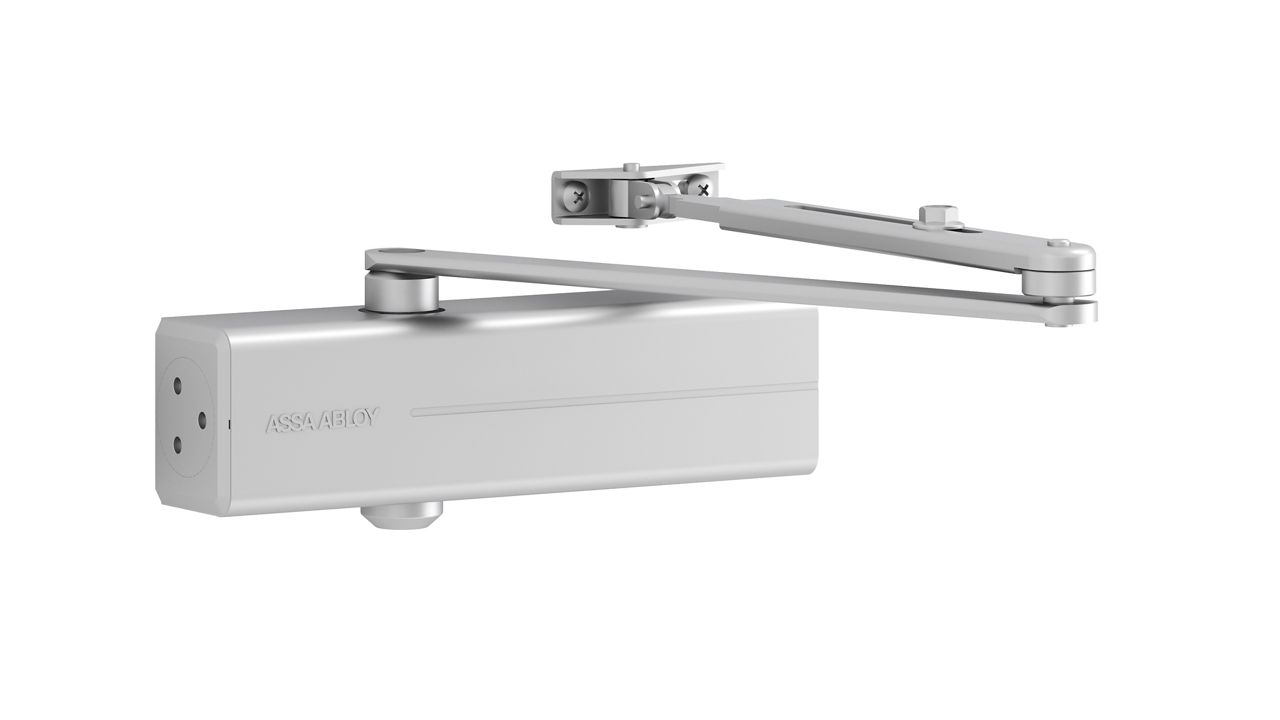

Silver, EV1
-

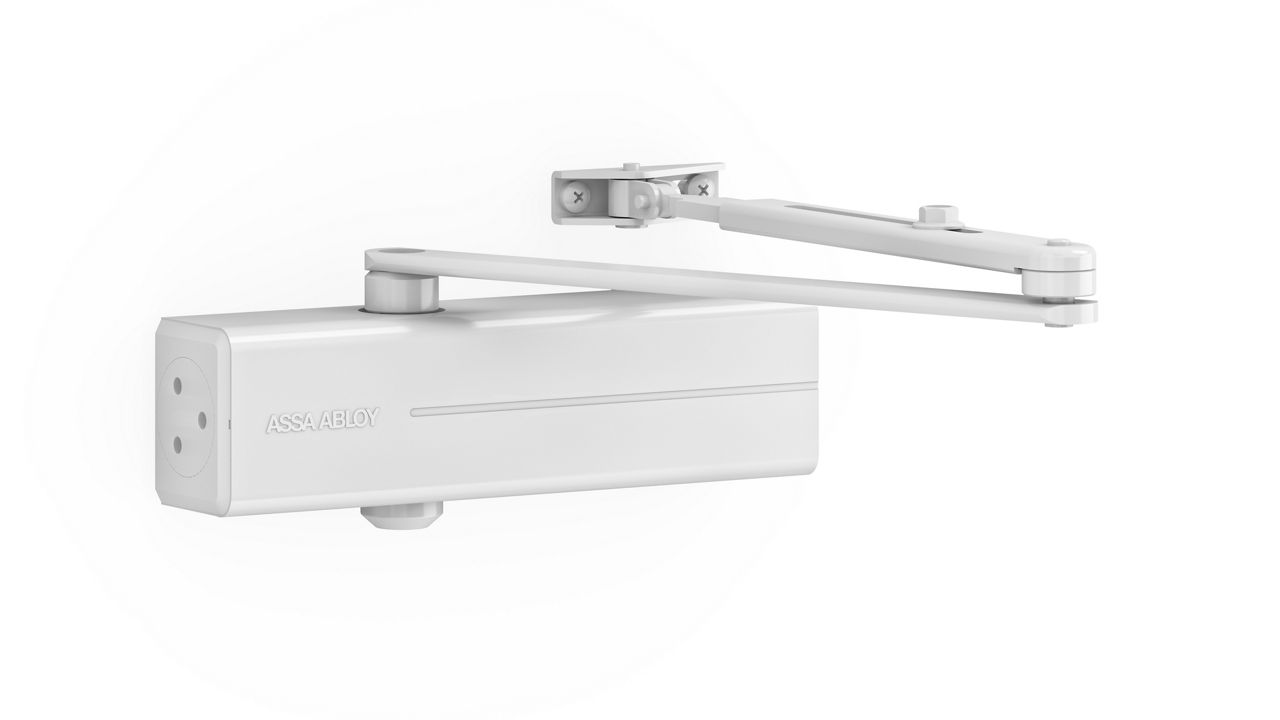

White, similar to RAL 9016
-

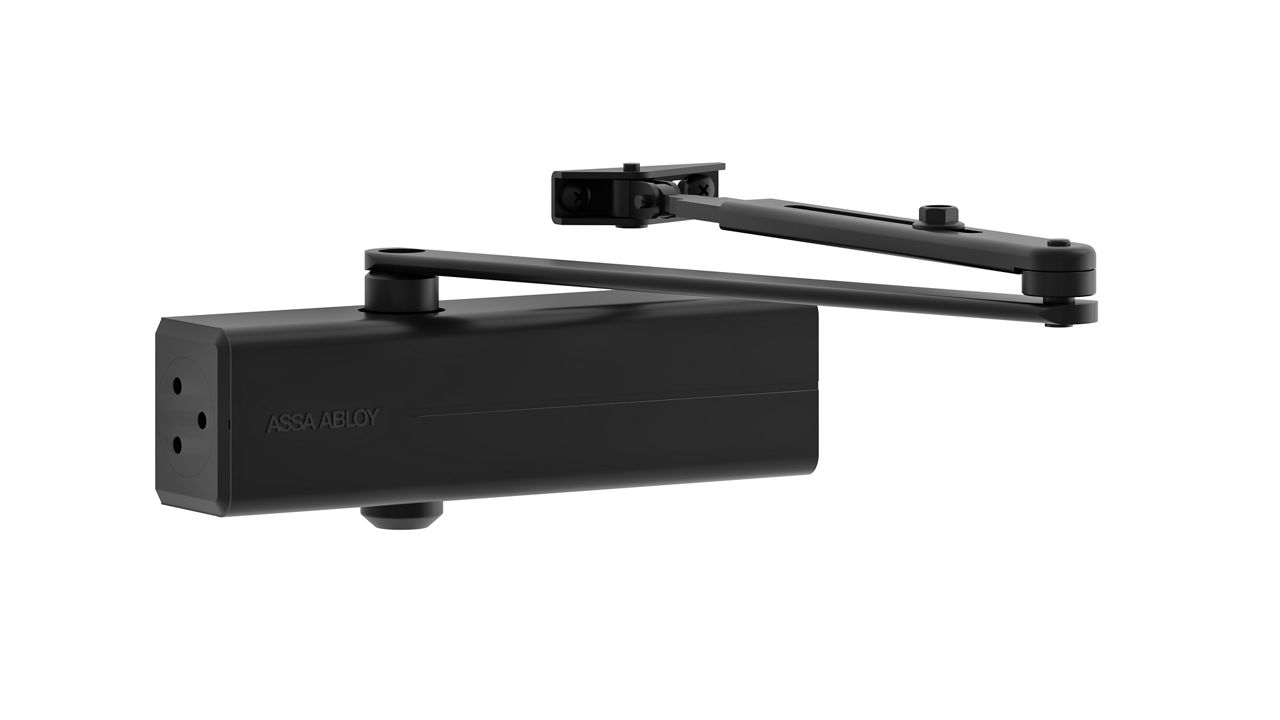

Black, similar to RAL 9005
-
Brown, similar to RAL 8014
1 of 6
4 mounting options
Door closer fits door or frame mount, push or pull side – right out of the box
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Multiple finishes
Modern, elegant design with a choice of finishes and colours ensure door closers do not disrupt any interior design
