    ASSA ABLOY OH1042P Insulated Panel Door

    • ASSA ABLOY

    ASSA ABLOY OH1042P (previously Crawford) insulated panel overhead sectional industrial doors.

    ASSA ABLOY OH1042P overhead sectional industrial doors are the optimal entrance solution for working facilities. Ideal for businesses looking for reliable, robust, well-insulated and space-saving doors in "operational entrances". This attractive, rugged door performs equally well as an industrial or commercial entrance system. The ASSA ABLOY OH1042P slides up under the ceiling when opened, maximising free space in and around the door opening.

    The Flexible Option

    Available in different sizes, with many window arrangements; end-users, specifiers and contractors can select from a huge range of locking hardware, opening mechanisms, access control systems and integral pedestrian 'pass door' options.

    ASSA ABLOY overhead sectional industrial doors can be tailored to meet almost any requirement.

    Exceptional Performance

    Class 3 certification for water tightness, wind load and air permeability, combined with excellent U-values guarantees a door that looks better and performs longer. Innovative sealing at the bottom, sides and top contribute to the overall standing as the most effective industrial roller door on the market. Subtle innovations in ASSA ABLOY door designs make a big difference to the buildings they serve and protect.

    Attractive Aesthetically

    A unique 'diamond' pattern for the external face of the ASSA ABLOY OH1042P panel offers building owners an aesthetically pleasing option. Choose from nine standard colours for the external face, or reinforce a corporate identity by choosing your own factory-painted colour to customise the interior and/or exterior facade.

    Internal hinges have been re-engineered to be less obtrusive, so even the internal faces are easier on the eye.

    How to buy this product Service and maintenance

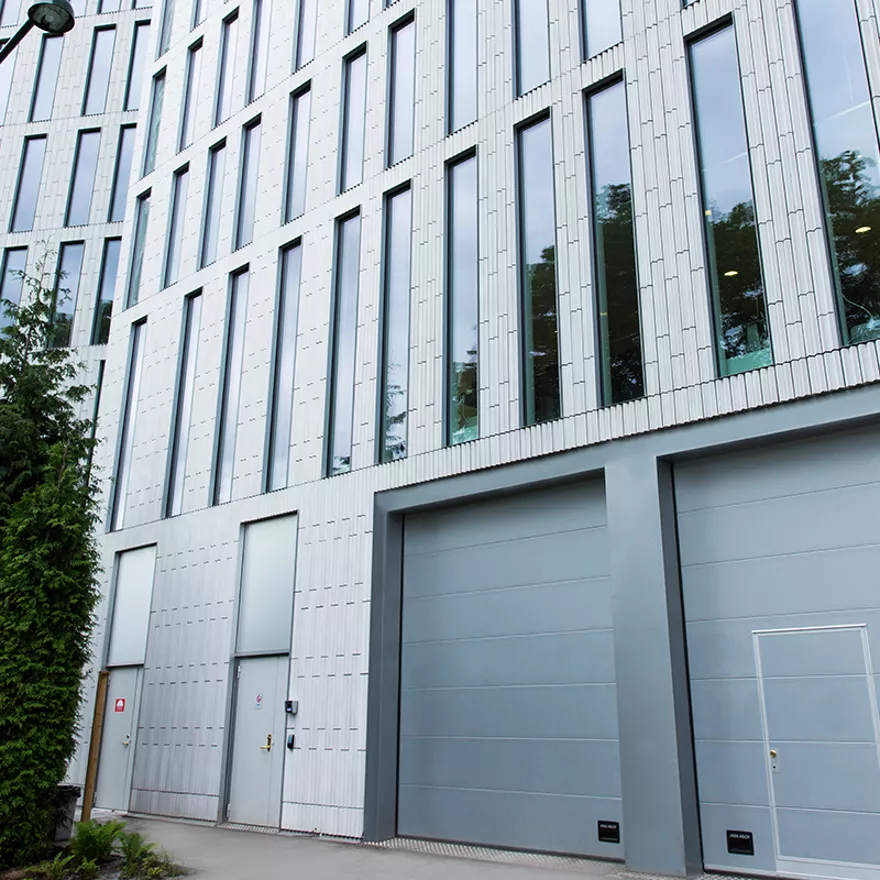

    Two grey doors on a grey building with loads fo windows. Outside there is a street and a tree.
    Two grey doors on a grey building with loads fo windows. Outside there is a street and a tree.

    ASSA ABLOY OH1042P insulated panel overhead sectional door

    • Standard size up to (WxH) [1]: 8000 x 6000 mm
    • Panel thickness: 42 mm
    • Windows/Pass-door/Access and Automation: Optional
    • Wind load, EN 12424 [2]: Class 3 W < 4250, Class 2 W > 4250
    • Thermal transmittance, EN 12428 [3]
    • Full panel (steel) door: 1,0W/(m2K)
    • Full panel (alum.) door: 1,1W/(m2K)
    • Water penetration, EN 12425 [4]: Class 3
    • Air permeability, EN 12426 [4]: Class 3

    [1 ] Other sizes on request

    [2] With or without pass-door. Higher wind load classification on request

    [3] Door size 4000 x 4000 mm

    [4] With or without pass-door

    BIM objects

    Download these products as BIM objects here:

    ASSA ABLOY OH1042P overhead sectional door

    ASSA ABLOY OH1042F overhead sectional door

    • Product leaflet

    • ASSA ABLOY OH1042P PSDI (Insulated passdoor) Overhead sectional door - en(PDF, 442 KB)
    • ASSA ABLOY OH1042P Overhead sectional door - en(PDF, 427 KB)
    • Product datasheet

    • ASSA ABLOY OH1042P Overhead sectional door - en(PDF, 2 MB)
    • Product datasheet - ASSA ABLOY OH1042P(PDF, 2 MB)
    • Product specification text

    • Product specification text ASSA ABLOY OH1042P (DOC, 275 KB)
    • Product drawings

    • Assa Abloy OH1042 Overhead sectional door with HL Beam operator side(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with LL operator side(DWG, 2 MB)
    • Assa Abloy OH1042 Overhead sectional door with HL operator center(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with HL Beam operator center(DWG, 1003 KB)
    • Assa Abloy OH1042 Overhead sectional door with LL manual operation(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with HL operator side(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with HL manual operation(DWG, 947 KB)
    • Assa Abloy OH1042 Overhead sectional door with LL operator center(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with HHL operator center(DWG, 1001 KB)
    • Assa Abloy OH1042 Overhead sectional door with HHL operator side(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with HHL manual operation(DWG, 855 KB)
    • Assa Abloy OH1042 Overhead sectional door with HL Beam manual operation(DWG, 906 KB)
    • Assa Abloy OH1042 Overhead sectional door with SL operator center(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with SLL operator side(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with VL Beam manual operation(DWG, 924 KB)
    • Assa Abloy OH1042 Overhead sectional door with VL Beam operator center(DWG, 950 KB)
    • Assa Abloy OH1042 Overhead sectional door with VL Beam operator side(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with VL manual operation(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with VL operator side(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with SL operator side(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with SL manual operation(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with SLL manual operation(DWG, 1 MB)
    • Assa Abloy OH1042 Overhead sectional door with SLL operator center(DWG, 1 MB)
    • Product specification texts

    • Product drawings (.dwg)

    • Product drawings (.pdf)

    Product variations
    High lift
    Low lift
    Standard lift
    Vertical lift
