Zenith for Sliding Glass Doors

For bypassing sliding glass cupboard doors weighing up to 25kg

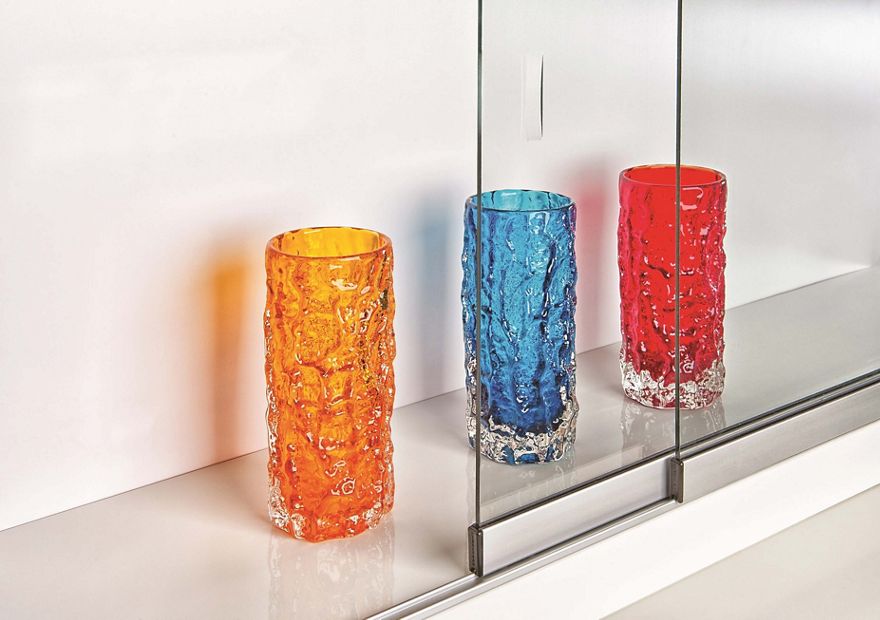

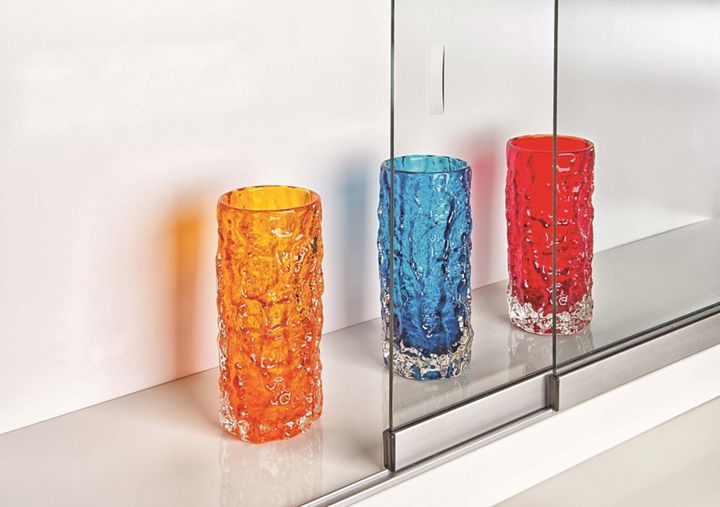

Zenith offers a sliding door hardware solution for bypassing glass panels weighing up to 25kg each. The system is ideal for showcases, bookcases, display units and hatches.

Suitable for DIY projects, Zenith is extremely easy to install and comes complete with an installation video  to make installation as easy as possible.

Designed with anodised aluminium gear and brush pile strips, Zenith offers a high performing system with smooth operation.

Application:

  • For showcases, bookcases, display panels, hatches, interior windows and glass doors
  • A precision made, satin-anodised finish aluminium gear with brush-pile strips
  • Silent and easy to glide

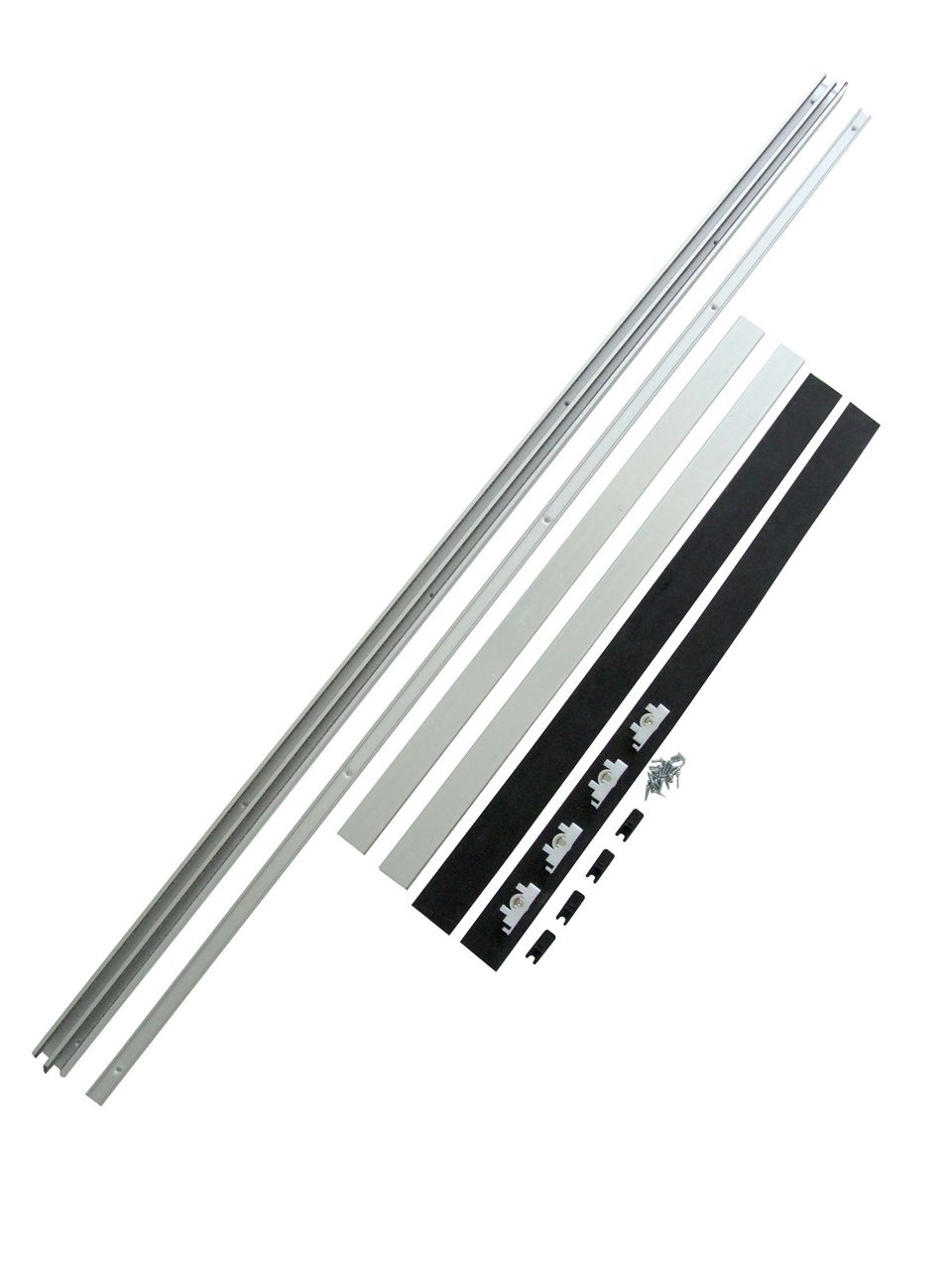

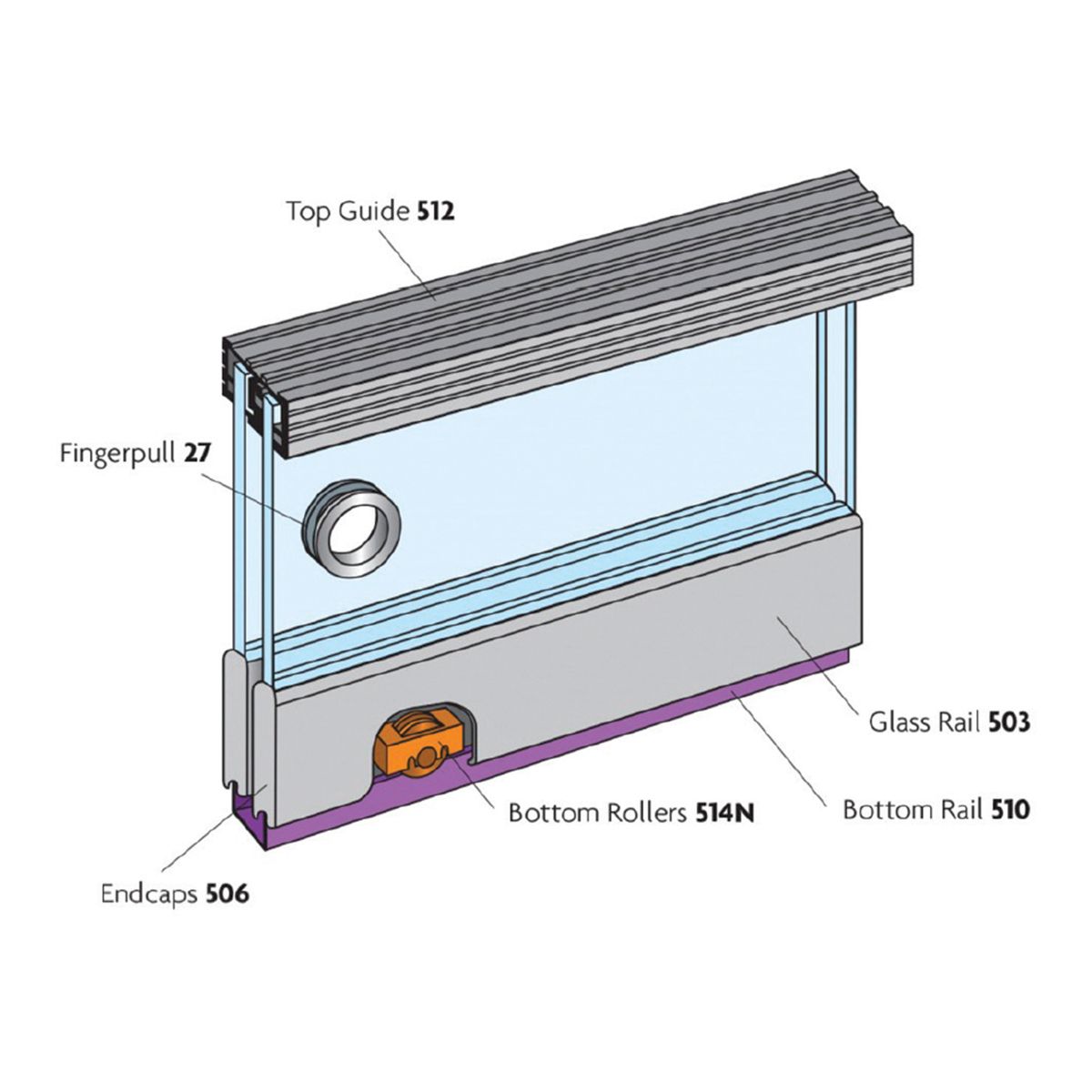

Kit Contents

  • 512 Top Guide Channel x 1
  • 503 Glass Rail x 2
  • 514N Bottom Rollers x 4
  • 506 End Caps x 4
  • 510 Bottom Rail x 1
  • 509 Glazing Strip x 2
Zenith for Sliding Glass Doors
Zenith for Sliding Glass Doors

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Specification:

  • Max. door weight: 25kg
  • Max. door width: 900mm
  • Max. door height: 1800mm
  • Max. glass thickness: 6mm
  • zenith_brochure_page(PDF, 259 KB)
KitDoor Width
27-790004Zenith Btm. Roller Kit Z12 - 2 Leaves - Max 1200mm
27-790035Zenith Btm. Roller Kit Z15 - 2 Leaves - Max 1500mm
27-790066Zenith Btm. Roller Kit Z18 - 2 Leaves - Max 1800mm
