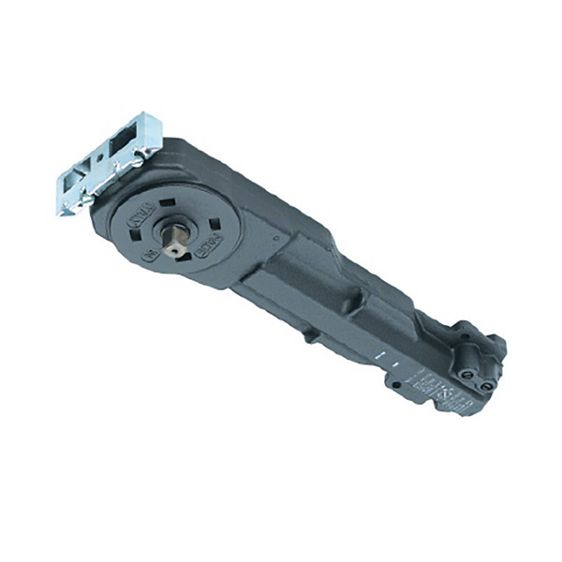

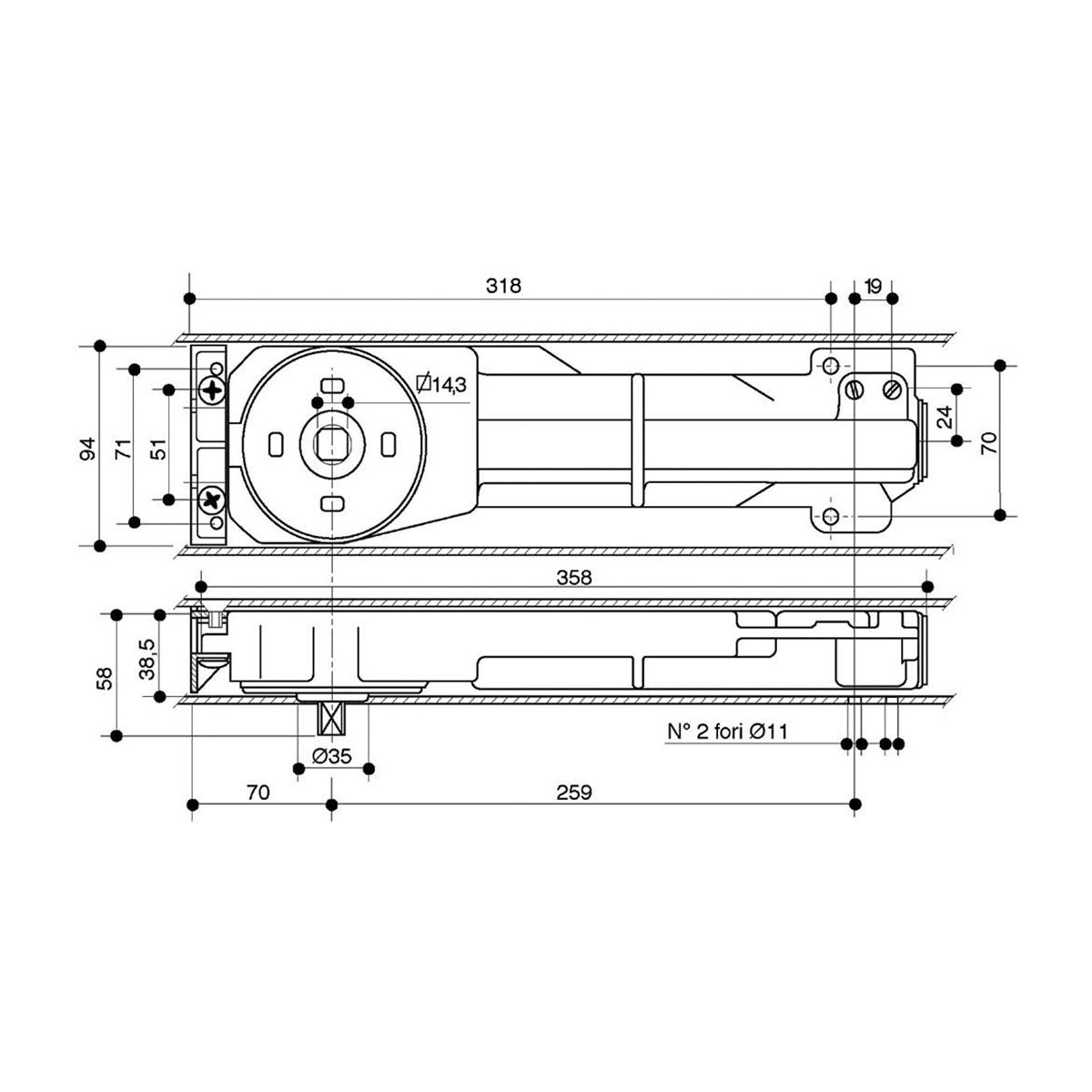

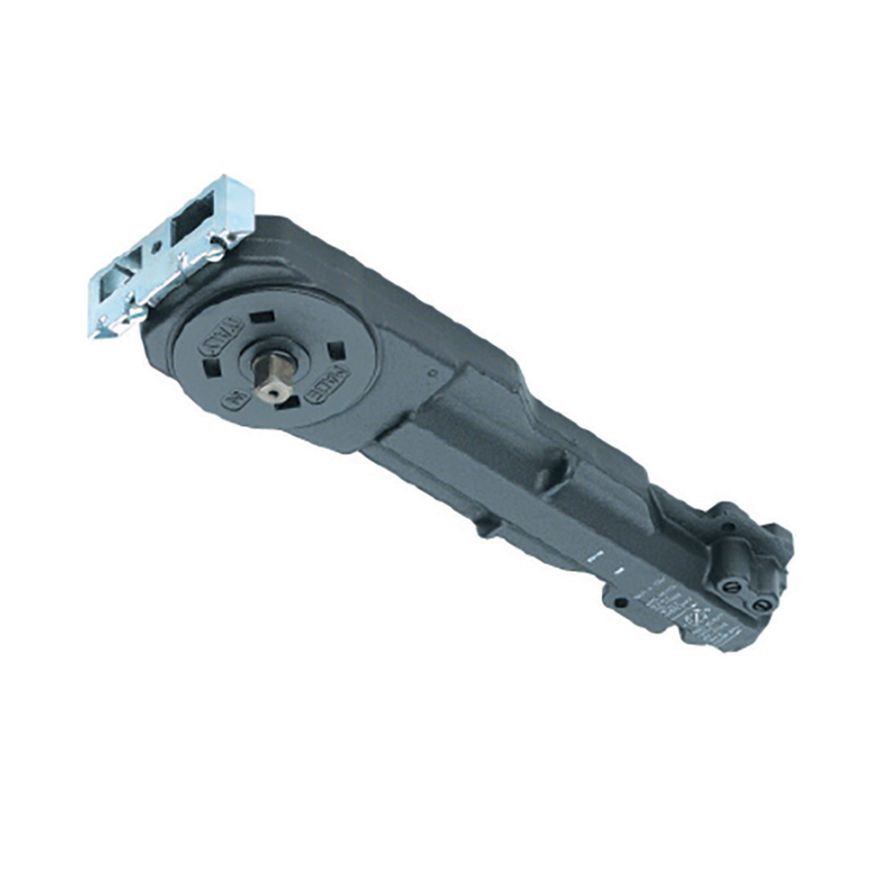

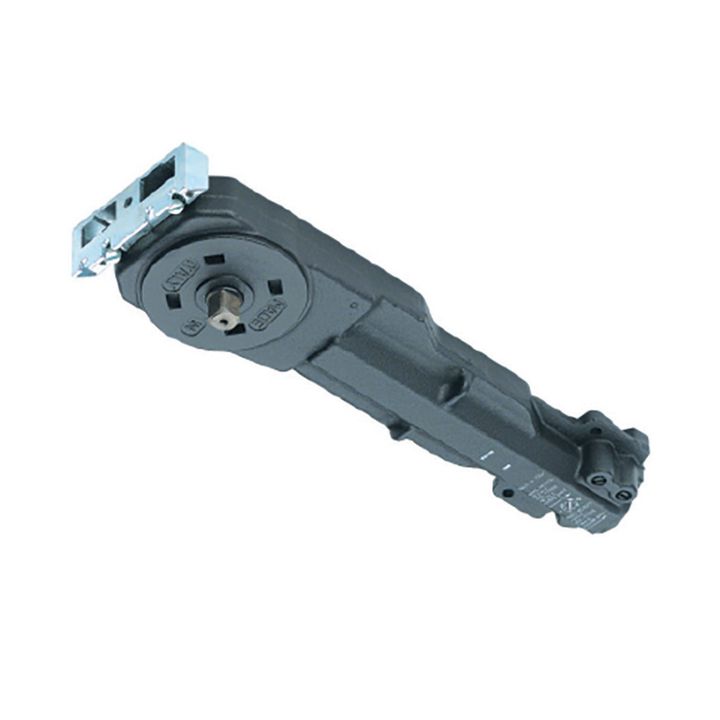

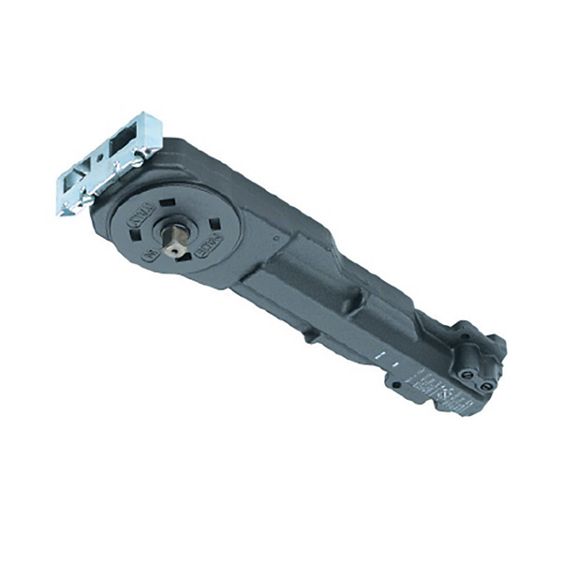

773/774

• UNION
• 773
• 774
• EN 3

Technical Attributes

• Transom concealed door closer
• Fixed EN size 3
• Fittings for timber and aluminium doors frames
• Metal cover plate (773TI) for timber application to be ordered separately
• For glass doors consult your ASSA ABLOY representative for full specification required
• Selectable speed control with speed control valve
• Non-hold open or 90° hold-open options available
• Maximum opening angle 120° in both directions (use of floor mounted door stops recommended)
