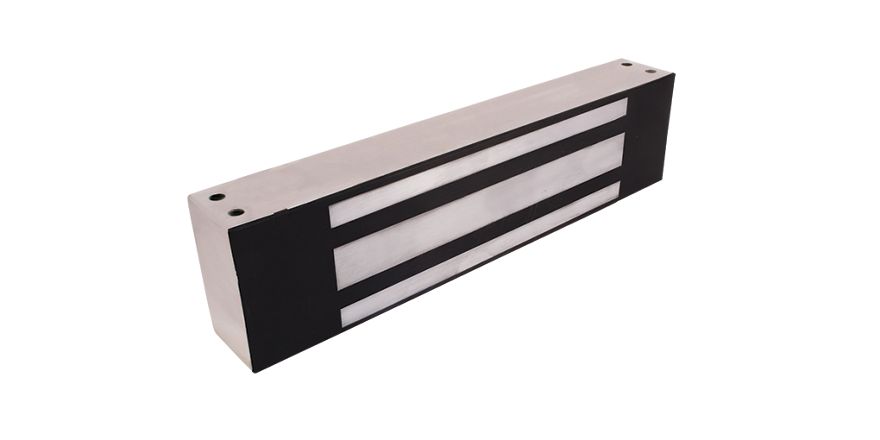

M82

1800lbs holding force; Weather resistant

Documents, Certifications & Listings

1800 lbs. holding force Magnalock with automatic dual voltage and magnetic bond sensing function standard. Preferred by prisons and detention facilities, and also functions best on large, high security gates.

Product Features

  • Patented instant release circuit - no residual magnetism
  • Surface mounts easily with minimal tools
  • Fully sealed electronics - tamper proof and weatherproof
  • Mounted using steel machine screws into blind finishing nuts
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to MIL specification
  • Hardware accessories available to configure any opening type include mounting brackets, housings and dress covers
  • Ten feet [3.05m] of jacketed, stranded conductor
  • Automatic dual voltage - no field adjustment required
  • BondSTAT magnetic bond sensor standard
  • Integrated door position switch, conduit and face mount models available
  • Universal threaded conduit fitting is 1/2" female - 3/4" male
  • UL Listed
  • MagnaCare® lifetime replacement, no fault warranty

Specification Data

  • Holding Force: 1800 lbs. [816 kg]
  • Current Draw and Voltage: 350mA at 12VDC; 200mA at 24VDC
  • Operating Temperature: -40 to +140F [-40 to +60C]
  • Shipping Weight: 16 lbs.

Models

Part # Description
M82B M82 Magnalock- 12/24VDC, MBS
M82BD M82 Magnalock- 12/24VDC, MBS, DPS
M82B-SS M82 Magnalock- 12/24VDC, MBS w/ Split Strike
M82FB M82 Magnalock- 12/24VDC, Face Drilled, MBS
M82FBD M82 Magnalock- 12/24VDC, Face Drilled, MBS, DPS
M82FGB M82 Magnalock- 12/24VDC, Face Drilled, Gate Conduit, MBS
M82FGBD M82 Magnalock- 12/24VDC, Face Drilled, Gate Conduit, MBS, DPS
M82GB M82 Magnalock- 12/24VDC, Gate Conduit, MBS
M82GBD M82 Magnalock- 12/24VDC, Gate Conduit, MBS, DPS



NOTE: An Offset Strike may be required for proper installation of the M82 in aluminum frame door applications. The M82 requires 2.5 inches of flat mounting space.
